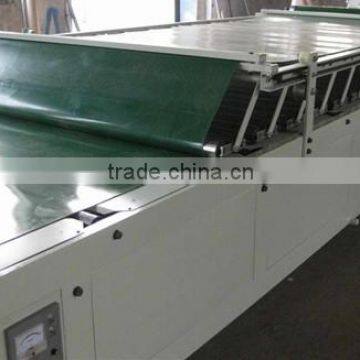

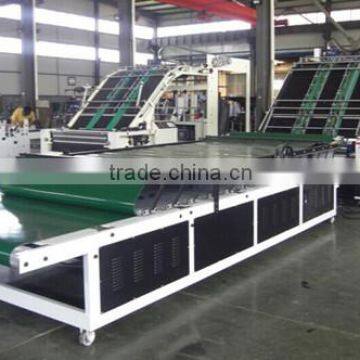

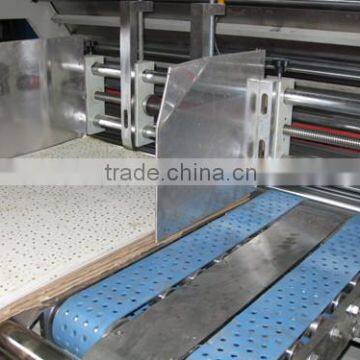

Carton box machine price / automatic flute lamination machine / corrugated cardboard lamination machine
Features
1.Automatic Laminating Machine are the fourth-generation products of back push style, the machine have advantage of easy operation, convenient maintenance, high speed, low noise, and high accuracy. It will help you to gain the power in the market improved parts and electrical components from Japan and Germany, guarantee the quality and use life.
2.Timing Belt Drive of the machine is mainly imported from Japan, . Timing belt has soft and tough, durable wear and heat resistance characteristics to ensure the accuracy of the machine precision fit.
3.Adopt the high-tech control system, supply the glue by automatic when the machine working, match with the recyclable gluing system, glue quantity can adjust according to the different of the paperboard, it make the glue evenly on the paperboard, this system ensures glue saving with better lamination quality
4.Suitable for lamination of corrugated paperboard to cardboard ,and cardboard to cardboard.Automatic feeding bottom sheet paperboard and face paperbaord
Specifications
Model Items | Unit | KSTM- 1100 | KSTM- 1300 | KSTM- 1450 | KSTM-1600 |
Maximum Paper Size(W×L) | mm | 1100×1100 | 1300×1100 | 1450×1100 | 1600×1400 |
Minimum Paper Size(W×L) | mm | 350×350 | 350×350 | 350 x 350 | 450×450 |
Laminating Precision | mm | ≤±1.5 | ≤±1.5 | ≤±1.5 | ≤±1.5 |
Speed | s/min. | 100 | 100 | 100 | 100 |
Total Power | kw | 12 | 12 | 12 | 13 |
Length | m | 11.5 | 12.5 | 12.5 | 15 |
Other special features of our machine:
1.Max. face sheet weight: 600g/m2,Min. face sheet weight: 200g/m2, Max. corrugated sheet weight: 600g/m2, Min. corrugated sheet weight: 250g/m2
2.Less vibration and low noise.
3.Gluing even: 30-50gsm. Quite cost effective for your production.
4.Side lay registration is installed on the machine.
Main electric components:
No. | Name | Specification | Manufacturer | REMARKS |
1 | Contactor | LC1-D0910 | SCHNEIDER |
|
2 | Stabilized voltage supply | S-250-24 | MEANWELL,TAIWAN |
|
3 | PLC | FX1N-60MT | MITSUBISHI, JAPAN |
|
4 | PLC extension | FX2N-2DA | MITSUBISHI, JAPAN |
|
5 | Approach switch | PM12-02N | FOTEK, TAIWAN |
|
6 | Vari-speed drive | FR-E540-2.2K | MITSUBISHI, JAPAN |
|
7 | Photoelectric switch | E2R-10N | FOTEK, TAIWAN |
|
8 | Encoder | E6B2-CWE6C | OMRON, JAPAN |
|
9 | Thermal relay | LR2-D1310N | SCHNEIDER |
|
10 | Touch screen | MT506S | EVIEW, TAIWAN |
|
11 | Step motor | 2S86Q-030B8 | KINCO, SHENZHEN |
|
12 | Step drive | 2M1160 | KINCO, SHENZHEN |
|
