industrial magnet sheets
- 500 Roll / Rolls per Month
- Shanghai or Ningbo
- T/T Credit Card
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Winchoice | Model Number: | WIN006-1 |
| Type: | Soft | Composite: | Rubber Magnet | Shape: | Other, roll |
| Application: | Industrial Magnet |
Packaging Details
single roll in a carton; 25 cartons on a pallet
Product Description
Specifications

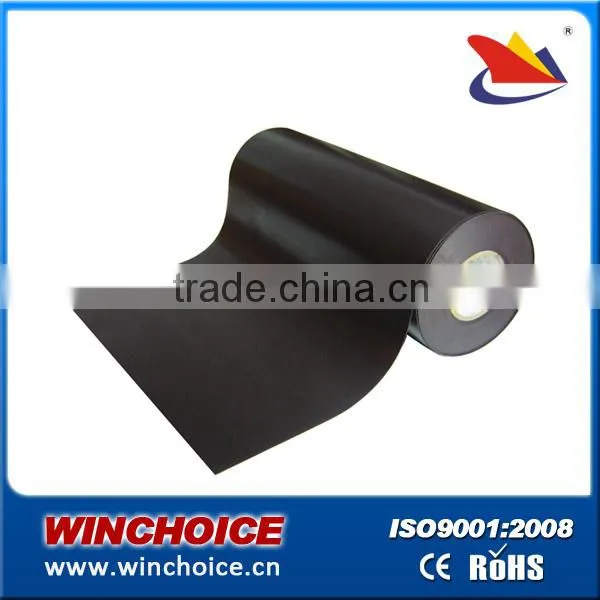

plastic magnet,isotropic rubber magnet sheeting, 600mm wide, 0.6mm thick,30m long.1.Material: isotropic rubber magnet, white PVC sheet, UV oil
2.Magnetization Pattern: one-side. Multipole; magnetic gap: 2mm
3. Dimension:
Dimension can be customized:
•min thickness:0.3mm
•max width:1200mm
•roll length: according to your requirement
4.Surface Treatment:
•magnetized surface coated with UV oil
•unmagnetized surface laminated with 0.1mm white PVC sheet
•surface treatment also can be customized:
laminated with color PVC, four color printed PVC, self-adhesives,
or directly screen printing on magnet sheet and so on.
5. Our rubber magnet passed RoHS for SGs test.
Magnet Characteristics | BR |
| Hcb |
| Hcj |
| (BH)max |
| Density |
WINCHOICE GRADE | mT | Gs | kA/m | Oe | kA/m | Oe | kJ/m³ | MGOe | g/cm³ |
YN10 | >230 | >2300 | >159 | >2000 | >207 | >2600 | 7.5-9.5 | 0.94-1.12 | 3.5-3.8 |
YN12 | >245 | >2300 | >169 | >2120 | >247 | >3100 | 9.5-11.5 | 1.12-1.44 | 3.5-3.8 |
YN14 | >265 | >2650 | >191 | >2400 | >263 | >3300 | 11.5-13.5 | 1.44-1.7 | 3.5-3.8 |
YN16 | >275 | >2750 | >175 | >2250 | >263 | >3300 | 12.5-14.0 | 1.6-1.8 | 3.7-3.8 |
YN20 | >280 | >2800 | >199 | >2500 | >358 | >4500 | 16-22.4 | 2.0-2.8 | 3.7-5.0 |
YN25 | >350 | >3500 | >239 | >3000 | >478 | >6000 | 22.4-28 | 2.8-3.5 | 3.4-5.0 |
YN35 | >400 | >4000 | >263 | >3300 | >557 | >7000 | 28-36 | 3.5-4.5 | 3.7-5.0 |
YN40 | >460 | >4600 | >294 | >3700 | >637 | >8000 | 36-42.4 | 4.5-5.3 | 3.7-5.0 |
YN45 | >500 | >5000 | >311 | >3900 | >677 | >8500 | 42.4-49.6 | 5.3-6.2 | 3.7-5.0 |
Company Profile
Introduction to Zhejiang Winchoice Imp./Exp. Co., Ltd.
Applying magnetic products, speakers, magnet materials, ceramics (structure ceramics and functional ceramics) and electrical machinery have been our emphasis since 1996. Our company, Zhejiang Winchoice, exports more than 85 percent of our output to Europe, the US and Southeast Asia, and has a total annual sales volume of over USD30 million.
Strong Technical Support
Here at Zhejiang Winchoice, our team of 25 engineers cooperates with one of Mainland China's leading universities, which provide us with expert technical solutions and technicians to handle your OEM needs. We develop new products in about 90 days. Technical know-how is the reason why we've developed 20 percent of our machinery in-house, including NC and linear-cutting machines.
Capacity
Our 20,017-square-meter factory, equipped with three assembly lines for magnetic products and staffed by more than 500 employees, can accommodate your volume orders.
Dedicated Service
25 trade staff -- all with more than 15 years of experience -- can help with logistics, insurance and customs documentation for a smooth transaction. If you order from our standard product lines, we can deliver your items in 10 days.
Contact us
Visit our showroom now to see what we can offer for your market, and then call us today with your sourcing requirements.
