220kV on load tap changer power distribution transformer oil filtration equipment
Power distribution transformer oil filtration equipment regulates the system voltage while the transformer is under energy. They regulate the low and high voltage so they prevent the negative effects of voltage variation.
On-load tap changer oil purifier does not require maintenance for long time by using online oil treatment machine .
On-load tap changer oil purifier is mainly used to cycle oil from bypass of the transformer and high voltage switch on line. It can remove moisture and tiny particles to keep oil clean and water content, flash point, breakdown voltage, cleanness of the oil will not go worse.
Feature:
- Work online with on-load working transformer or high voltage switch
- The filter with high quality material can remove moisture from oil.
- Remove tiny particles by the high quality filters, cleanness up to NAS grade 6.
Item |
Name of Parameter |
type / unit |
JZ-0.6BF |
|
Technical Parameter of the equipment |
Nominal flow capacity |
L/min |
10 |
|
Working Pressure |
Mpa |
0.5 |
||
Working power |
KW |
(380V-50Hz)3-Phase 4-Wire (380V-50Hz) |
||
Total electric power |
KW |
0.75 |
||
Diameter of inlet/Outlet hose |
DN |
25/25 |
||
Size |
Length |
cm |
53 |
|
Width |
cm |
35 |
||
Height |
cm |
100 |
||
Weight |
Kg |
100 |
||
Oil treatment index |
Filtering Accuracy |
µm |
1 |
|
Cleanness |
NAS level |
≤6 |
||

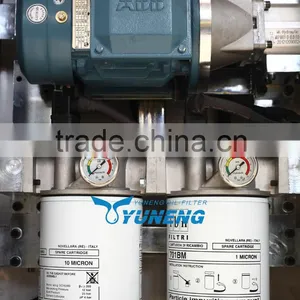

Photos of Power distribution transformer oil filtration equipment
After-sales Services
One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.
Founded in 1997, Chongqing Yuneng Oil-Filter Manufacturing Co., Ltd located in Chongqing China. Our company is a new and high-tech joint-stock enterprise. We specialize in the R&D, manufacturing, and marketing of oil, water and gas filtering and purification products and complete sets of related equipment. We gather a group of specialized talents with years of working experience and technological development. We can produce 1,000 sets of oil-filtering equipment and purification equipment for other fluids each year. So far we have sold over 15,000 sets of Yuneng-brand oil purifiers. Twenty of our new technologies have received national patents of invention. In 2004 and 2009, our company was rated as “new and high-tech enterprise of Chongqing” twice; there are eleven series products rewarded as “New and High-tech Products of Chongqing”. We have passed I S O 9 0 0 1 quality management certification; some products have passed CE certification, such as YNZSY used oil recycling machine, ZJA double stage vacuum oil purifier. Our products are popular in central South Asia, Middle-East, Europe, America and dozens of countries.In 2009, the latest statistic from Chinese market research center indicated that, among the domestic oil purifier industry, our company’ s market share, competiveness, ranks number one. Yuneng has become a famous brand in the middle-high oil treatment industry. Looking forward to be your supplier and welcome to visit Yuneng.
Yuneng products list:
1. Insulation Oil treatment machine:
ZJA Ultra-high Transformer / Insulation Oil treatment machine (1000KV, ±800KV, 750KV, ±660KV project) ( 2 stage vacuum)
ZJA High-vacuum Transformer / Insulation Oil treatment machine (110KV-500KV project)) (2 stage vacuum)
ZJB Transformer / Insulation Oil treatment machine (≤110KV) (one stage vacuum)
ZJ Vacuum Pumping machine (extract vacuum, dry transformer)
GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors…).
JZ OLTC (on-load tap changer) online On Line OLTC Oil Filling Machine
Quantitative oil injection machine (customized product)
2. Turbine Oil treatment machine:
JT coalescing dehydration oil treatment machine (dehydration by special filters)
DYJC online turbine oil treatment machine (dehydration by special filters and vacuum system)
ZJC-T vacuum oil treatment machine for turbine oil (dehydration by vacuum system)
3. Lubricating Oil treatment machine:
ZJC-R vacuum Oil treatment machine for lubricating oil (machinery oil, hydraulic oil, compressor oil, coolant oil, cutting oil..)
ZJC-M Oil treatment machine for OCS. (oil with high viscosity 22-320cst at 40°C)
4. Other kinds of oil treatment machine:
KYJ fire-resistance oil treatment machine (EHC oil)
LY plate-frame pressure oil treatment machine (simple, paper filtration)
YL mobile oil treatment machine (simple, cheap)
5. Waste oil regeneration machine (by chemicals or by high temperature distillation)
YNZSY used oil treatment machine (by chemicals)
YNZSY-LTY used tire oil treatment machine (by chemicals)
Waste oil distillation machine
6. Oil tester/ analyzer:
Dielectric oil breakdown strength tester
Water content tester
Inline Digital Flow Meter and Totalizer
Viscosity analyzer
Flash point analyzer (close cup)
Flash point analyzer (open cup)
Interfacial tension analyzer
Gas chromatograph
