Home > Products > Speaker Box > line array speaker box
line array speaker box
- 1000 Piece / Pieces per Month
- Guangzhou
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | cibas/oem | Model Number: | VT-212LA |
Packaging Details
inner packing: plastic bag with protection around the corner; out packing: carton, bind with strip
Product Description
Specifications
12inch line array speaker boxRMS: 650W
PEAK: 1950W

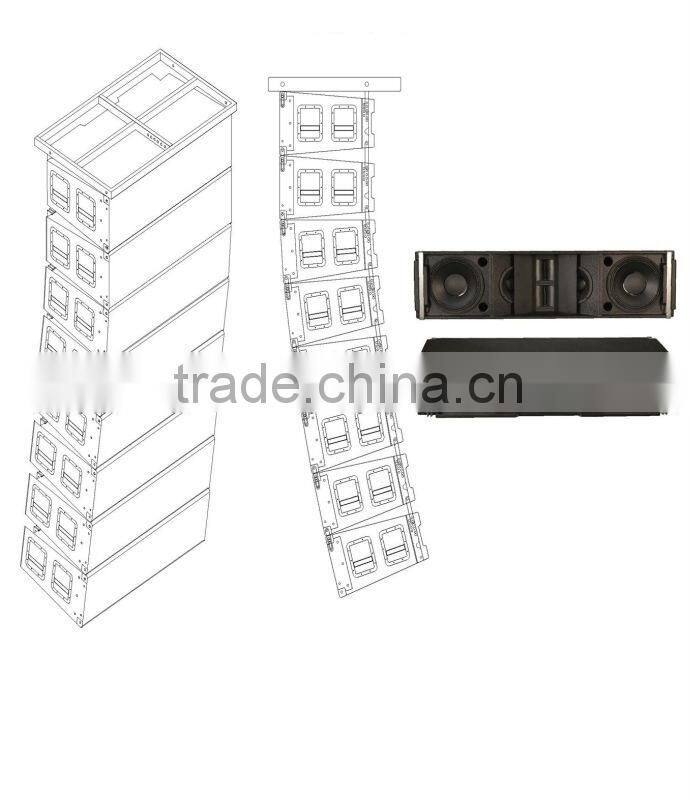

supper powerful 3-way line array system

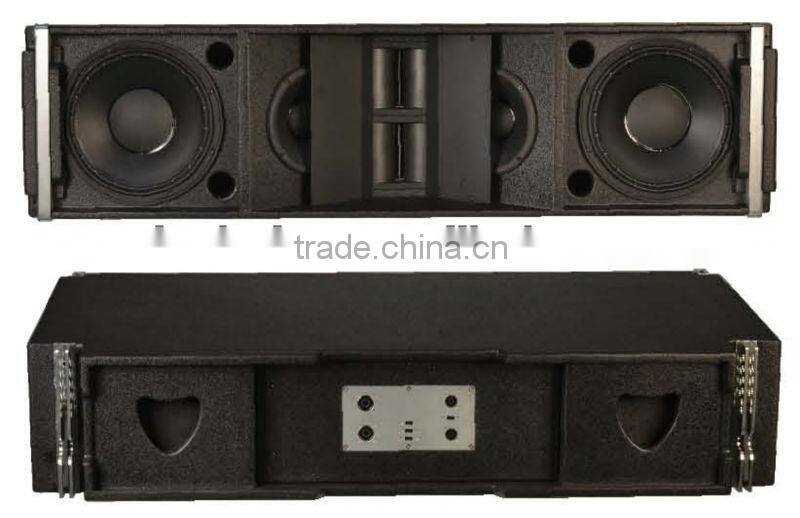

12inch line array speaker box
VT-212LA is a supper powerful 3-way line array system, equipped with two 12inch LF transducers with 4inch voice coil, and two 8inch high efficiency MF transducers, plus two 1.75inch Neodymium compression drivers mounted onto two individual waveguides with special horn extension.
Passive line array system with bi-amp switch connect to two NL8, two NL4 connectors for passive function, with a very convenience switch for your cable +1/-1 and +2/-2 option.
Specifications:
HF Unit | Neo1.73inch*2(D44mm)40W |
MF Unit | 8inch*2(D64mm)250W |
LF Unit | 12inch*2(D100mm)500W |
Frequency response | 40-20KHz |
Power Handling | 650W |
Peak Power | 1950W |
Sensitivity | 109dB |
Max SPL | 140dB |
Nominal Impedance | 8ohm |
Dispersion | 110 H*16 V |
Hanging device | Custom Alu |
Finish | Textured Black Paint |
Enclosure Material | 18&24mm A Grade Ply |
Connector | NL8*2, NL4*2 |

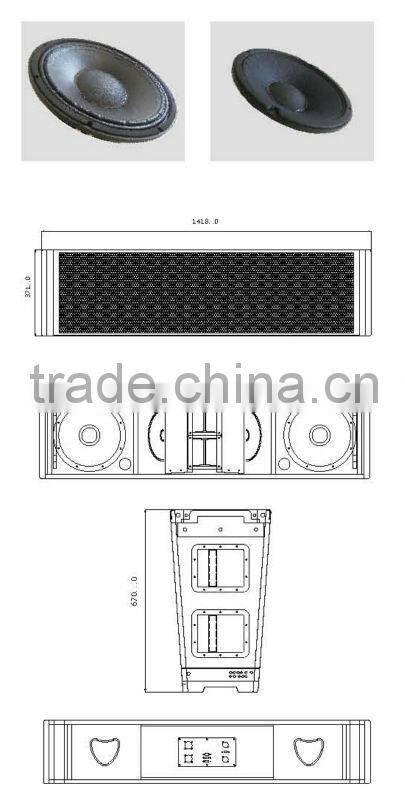

Product Dimension | Width 1418mm, Depth 670mm, High 371mm |
Shipping Dimension | 1493*745*446mm |
G W | 92kg |
Shipping Weight | 96kg |
FAQ:
Q 1. what's the payment term?
A. We accept T/T,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25-35 days for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.
Q 5.Would you accept to use our logo ?
A. If you have good quantity, it absolute no problem to do OEM.
Q 6.We want to know month capacity.
A. It depends on which model. For example for relay type small capacity , month capacity can reach near 20000pcs and big capacity near 3000pcs.
Q 7.Where is your market?
A. Our products are popular in Russia, Indonesia, Philippines, Italy, America, Pakistan and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benefit from our cooperation.
Q8. what kind of certificate you have ?
A. Our company already achieve ISO, FCC, BV, CE and ROHS.
Company profile:
“Zhejiang Winchoice Imp/Exp. Co., Ltd” is a company which is the joint of trade and industry, taking trade as a leader and technology as basic, rely on manufacturing and exporting the professional magnetic materials and audio equipments, supported by Zhejiang University and Nanjing University, have deeply research and development in voice and electronic amplifier technology.
Hangzhou Shengbo Electronic Technology Co., Ltd. is our shareholding factory, We operates its export business. The factory workshop covering an area of more than 10,000 square meters, manned by 200 employees, the main products are professional power amplifier, public address system, speaker box, audio mixer, etc., Annual sales exceed 50 million RMB, the professional power amplifier account half of the sales.
CIBAS HOLDING GROUP is a Chinese-foreign joint venture, controlled by “Zhejiang Winchoice Imp/Exp. Co., Ltd”, the main business is speaker box, amplifier, audio mixer, microphone and other audio products.
Our electroacoustic development department have a big professional research and development team, We have 10 R&D engineers who are specialized in electronic products for more than 10 years,strong technical capability do a big favor for our OEM order.
In year 2012, we won the “EXCELLENT HANGZHOU EXPORT TRADE COMPANY” honor. In the future, we will continuous improve our products and manage, rely on own factory, supply more higher cost-effective products for our customers.
Company Profile
Introduction to Zhejiang Winchoice Imp./Exp. Co., Ltd.
Applying magnetic products, speakers, magnet materials, ceramics (structure ceramics and functional ceramics) and electrical machinery have been our emphasis since 1996. Our company, Zhejiang Winchoice, exports more than 85 percent of our output to Europe, the US and Southeast Asia, and has a total annual sales volume of over USD30 million.
Strong Technical Support
Here at Zhejiang Winchoice, our team of 25 engineers cooperates with one of Mainland China's leading universities, which provide us with expert technical solutions and technicians to handle your OEM needs. We develop new products in about 90 days. Technical know-how is the reason why we've developed 20 percent of our machinery in-house, including NC and linear-cutting machines.
Capacity
Our 20,017-square-meter factory, equipped with three assembly lines for magnetic products and staffed by more than 500 employees, can accommodate your volume orders.
Dedicated Service
25 trade staff -- all with more than 15 years of experience -- can help with logistics, insurance and customs documentation for a smooth transaction. If you order from our standard product lines, we can deliver your items in 10 days.
Contact us
Visit our showroom now to see what we can offer for your market, and then call us today with your sourcing requirements.
Contact Us
- Zhejiang Winchoice Imp./Exp. Co., Ltd.
- Contact nameChangmiao Zhao
- Phone86-571-87975950
- AddressRoom1108,E-Time Business Building,76#Gucui Rd.,Hangzhou,China Hangzhou,Zhejiang
