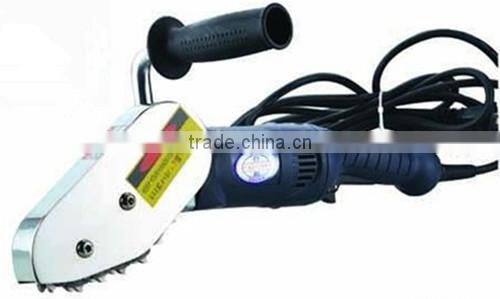

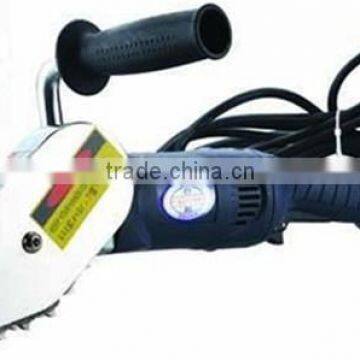

penumatic Carton box stripper machine / Corrugated cardboard waste stripper machine
Applications
The machine is suitable for waste margin stripping of cardboard , thin corrugated paper and common corrugated paper in printing industry . Range for the paper is 150g/m2-1000g/m2 cardboard, single and double corrugated paper, double laminated corrugated paper.
Features

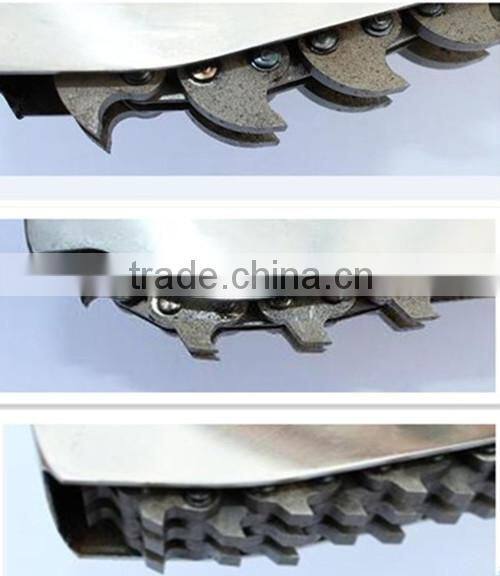

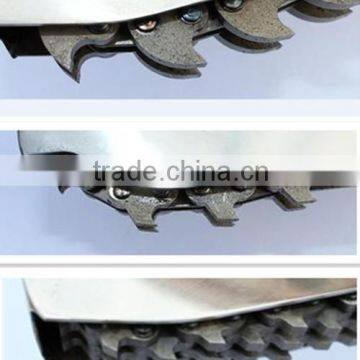

For waste margin stripping of cardboard, thin corrugated paper and common corrugated paper in printing industry, High-speed running gear is cycle driven through air motor , strip waste margin paper with sharp teeth gear. The gear use high strength Diamond Compound after heat treatment, high hardness, wear resistance, long life and easy replacement .
The product is high efficient manual stripping equipment, stripping efficiency is improved by 10 times, manual stripping needs hours, finished only in 10-30 minutes with stripping machine, greatly shorten the delivery cycle.
Compact configuration,almost the same weight as normal grinder,easy to use,worker can operate the machine after simple training, No damage for bonding area while stripping,improve the efficiency of the following process (gluing / automatic packing)
Specification:
Material |
Cardboard and Corrugated Board |
|
Rotating Chain Speed |
MAX. 4.2 m/sec. |
|
Max. Stripping Range |
Sheets under 250mm length, present excellent stripping performance. |
|
Width of chains |
20 mm ( for WPA CS5 ) 10 mm ( for WPA CS3 ) |
|
Air Supply Requirement |
6 kg / cm2 ( 6 BAR ) |
|
Dimension |
230 (W) x 470 (L) x 210 (H) mm |
|
Net Weight |
6.5 kg |
|
Technical parameters:
Weight of paper |
150g/-1000g ( cardboard, single / double Hang paper, double-pit .) |
The frequency of grasping paper |
2800R.P.M |
Output power |
680W |
Air consumption |
10CFM |
Dimension |
470×170×220mm |
Include below spear part :
1. Filter : 1pc
2. Filter connector : 1 pc
3. Quick connector : 1pc
4. Six spanner :1pc
5. Air tools lubriate oil :1 bottle 250cc
6. Chain oil : one bottle
