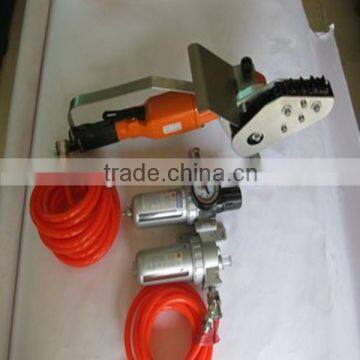

hand-held pneumatic carton stripping machine
Model:KS 2590S
Free speed: 2500R.P.M
Arg Air Cons: 12CFM
Air pressure:6-8kg
Air Hose Size:8x12mm
Weight:6.8kg
Applications
The machine is suitable for waste margin stripping of cardboard , thin corrugated paper and common corrugated paper in printing industry . Range for the paper is 150g/m2-1000g/m2 cardboard, single and double corrugated paper, double laminated corrugated paper.
Features
For waste margin stripping of cardboard, thin corrugated paper and common corrugated paper in printing industry, High-speed running gear is cycle driven through air motor , strip waste margin paper with sharp teeth gear. The gear use high strength Diamond Compound after heat treatment, high hardness, wear resistance, long life and easy replacement .
The product is high efficient manual stripping equipment, stripping efficiency is improved by 10 times, manual stripping needs hours, finished only in 10-30 minutes with stripping machine, greatly shorten the delivery cycle.
Compact configuration,almost the same weight as normal grinder,easy to use,worker can operate the machine after simple training, No damage for bonding area while stripping,improve the efficiency of the following process (gluing / automatic packing)
Specification:
Material |
Cardboard and Corrugated Board |
Rotating Chain Speed |
MAX. 4.2 m/sec. |
Max. Stripping Range |
Sheets under 250mm length, present excellent stripping performance. |
Width of chains |
20 mm ( for WPA CS5 ) 10 mm ( for WPA CS3 ) |
Air Supply Requirement |
6 kg / cm2 ( 6 BAR ) |
Dimension |
230 (W) x 470 (L) x 210 (H) mm |
Net Weight |
4 kg |

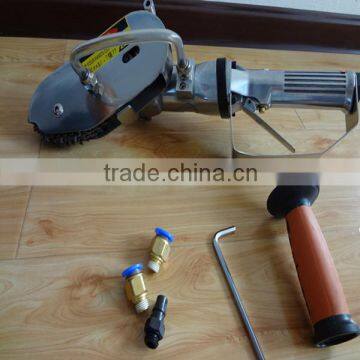

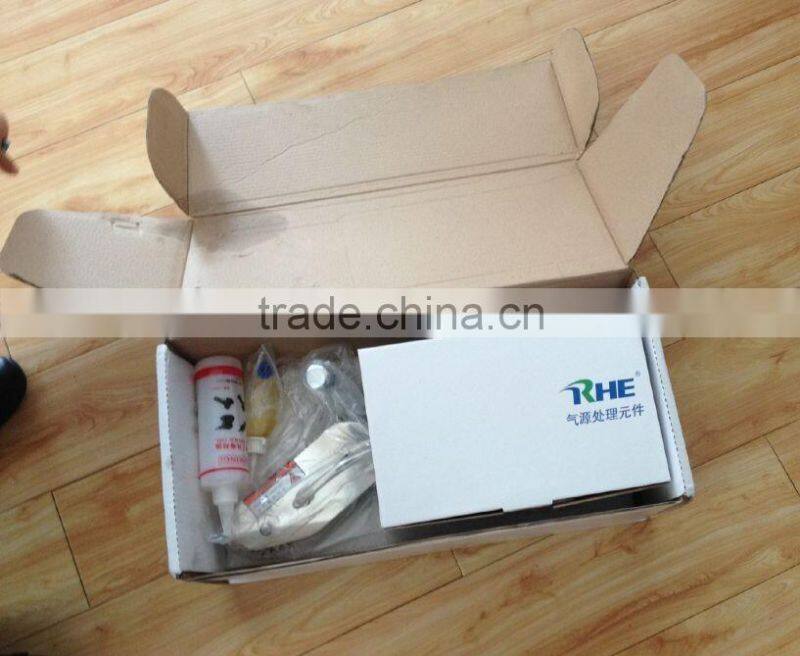

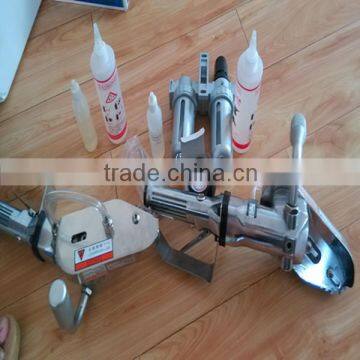

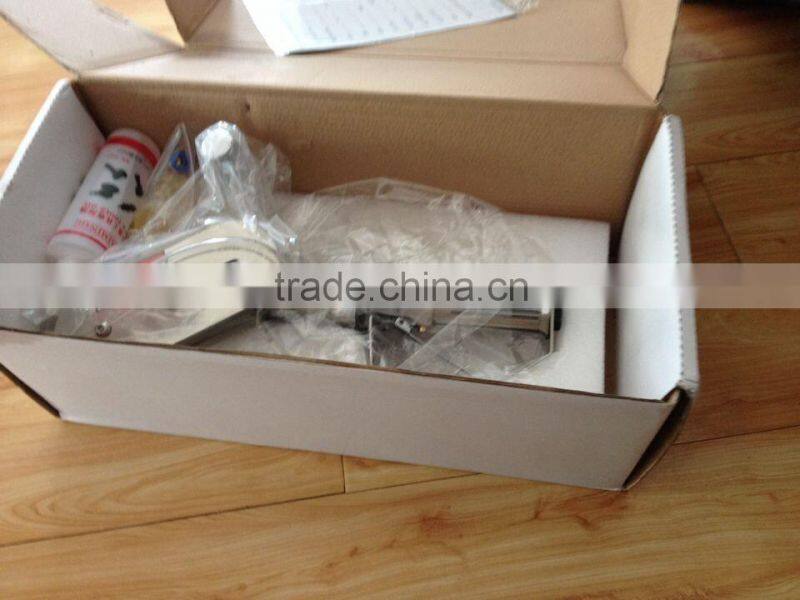

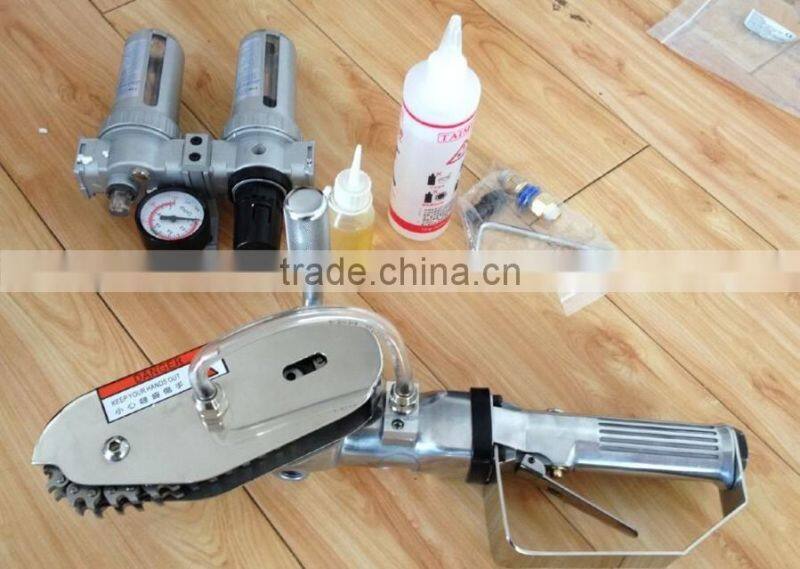

Include below spear part :
- 1. Filter : 1pc
- 2. Filter connector : 1 pc
- 3. Quick connector : 1pc
- 4. Six spanner :1pc
- 5. Air tools lubriate oil :1 bottle 250cc
- 6. Chain oil : one bottle

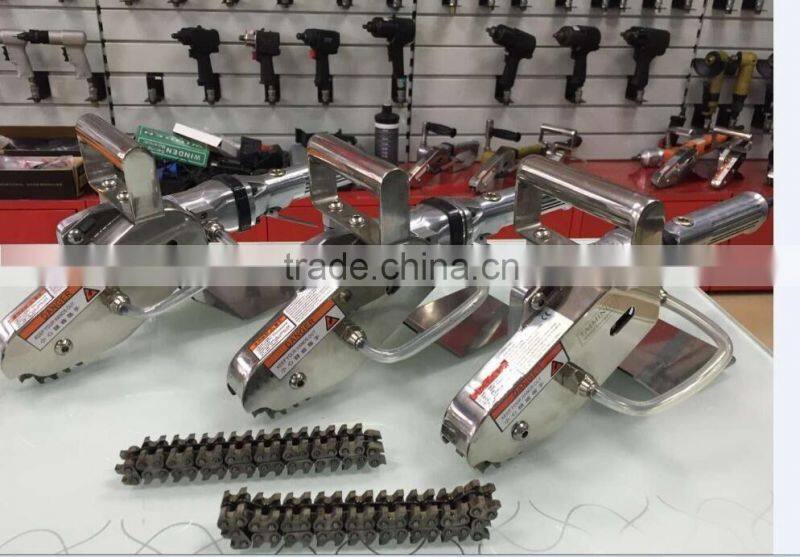

The working object:
1.Small teeth for cardboard
2.Middle teeth for cardboard corrugated paper
3.Large teeth for corrugated paper
The working object:
1.Small teeth for cardboard 150-500gsm KS2590S
2.Middle teeth for cardboard corrugated paper 500-1000gsm KS2536
3.Large teeth for corrugated paper more than 1000-1500gsm KS2536L
Characteristics:
1.For waste margin stripping of cardboard, thin corrugated paper and common corrugated paper
in printing industry,

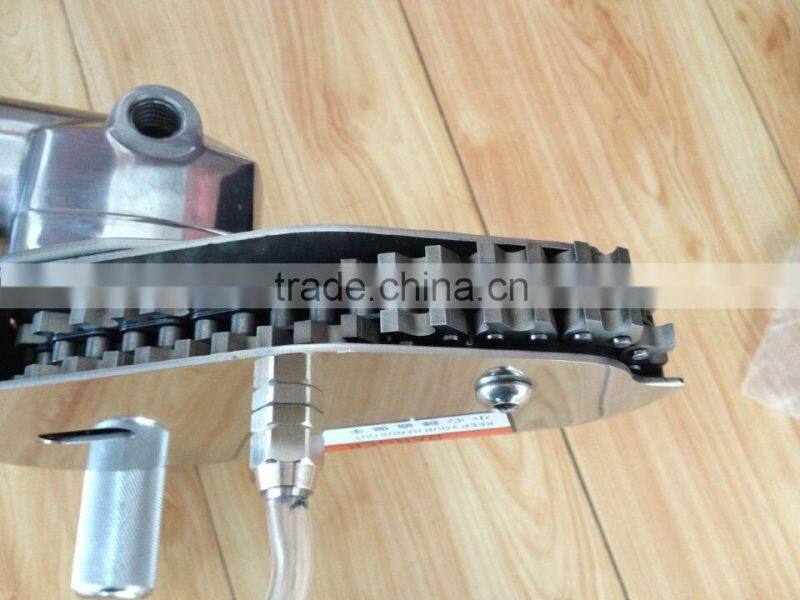

2.High-speed running gear is cycle driven through air motor, strip waste margin paper with
sharp teeth gear.
3.The gear use high strength diamond Compound after heat treatment high hardness,
wear resistance,long life and easy replacement.
4.The product is high efficient manual stripping equipment, stripping efficiency is
improved by 10times.
5.Manual stripping needs hours finished only in 10-30 minutes with stripping machine,
greatly shorten the delivery cycle.
6.Compact configuration, almost the same weight as normal grinder, easy to use worker
can operate the machine after simple training.
7. No damage for bonding area while stripping, improve the efficiency of the following
process( gluing/automatic packing).
