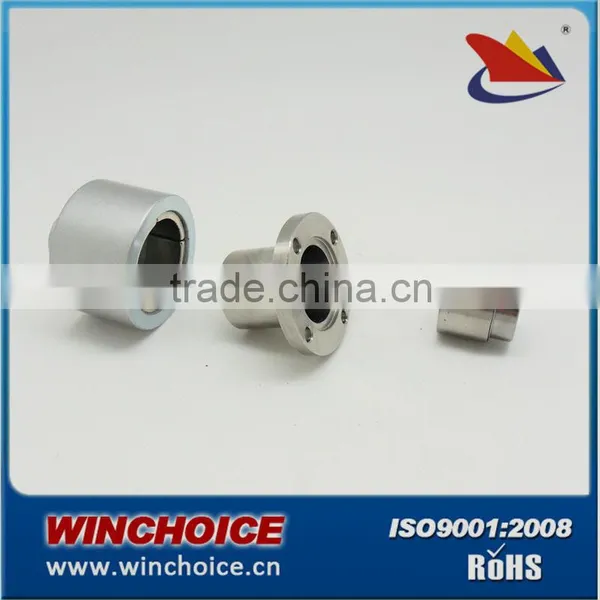

Unthreaded hole type,Axel hole type,Flange type magnetic motor coupling

foam box lining in paper board carton, moisture barrier between foam box and paper board carton, wooden case outside.

Specifications

magnetic shaft coupling .

1.Products Details

1.A new kind of coupling, which connects motor and machine by permanent magnetic force.

2.Work in the sealless magnetic drive pumps

3.With no leakage.

4.Transporting volatile,flammable,explosive and toxic solutions

5.Widely used in various industries and fields,such as chemical,papermaking,foodstuff, pharmacy,and so on

6.Working temperature: NdFeB <200; SmCo <300

7.The inertia balance grade for the inner and outer rotor is G6.3.

8.Material: Inner rotor: ASTM 316 or 316L, Hastelloy, Titanium alloy

9.Outer rotor: ASTM Stainless steel or carbon steel with black zinc coating

10.Isolation shroud: ASTM 316 or 316L, Hastelloy, Titanium alloy, or nonmetallic materials

Compare with mechanically connected couplings,magnetic coupling can completely solve the leak problems,widely used in sealing dynamic machinery.

Unthreaded hole type:

Axel hole type:

Flange type:

cooling unit:

2.Our Advantages

1.High QC System:Pre-assembled motor parts with glued permanent magnets and metal body according to customers’requirements .

 2. 29 years experience :We have various magnetic couplings for 29 years.

 3.Solution and Serviece:

A:High qulity cost-saving solution for clients.

B:We also have professional engineers for free technology consulting

3.Products Pictures

4.Packing

Standard Packing: foam box lining in paper board carton, moisture barrier between  foam box and paper board carton, wooden case outside.

We can also packed as per your request.

5.Application

Widely used in magneic drive pumps, autoclaves, mixers vaccum sealing transmission machinery industries and ect

6. Factory Picture
