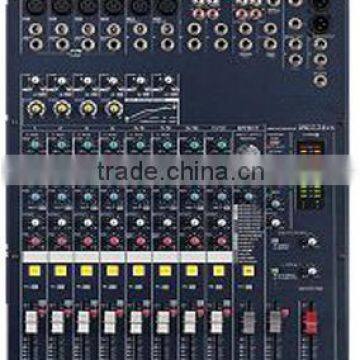

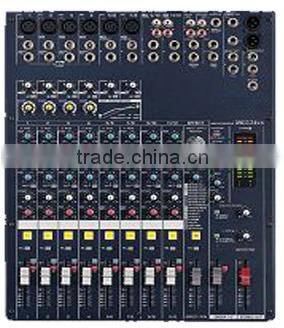

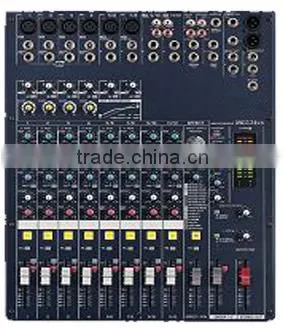

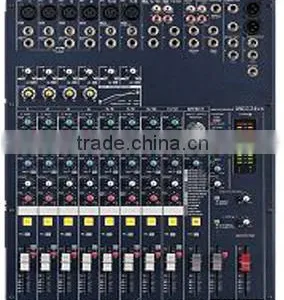

Help CenterMG124C Console Mixer
Related Products
Specifications
Flexible 12-input ConfigurationComprehensive, Easy-access Connector Panel
Extended Capacity and Versatility for Studio or Sta
Features
Extended Capacity and Versatility for Studio or Stage
For applications requiring up to 12 input channels the MG124C offers stunning MG-series sound plus an extra margin of signal-routing versatility.
Flexible 12-input Configuration
The MG124C has a total of 12 input channels - four mono microphone/line inputs and four stereo line inputs. Two of the stereo line inputs can also function as mono microphone inputs, giving you up to six simultaneous mono microphone inputs when needed. Gain trim covers a wide -60dB ~ -16dB range for microphone input, and -34dB ~ +10dB for line input.
Comprehensive, Easy-access Connector Panel
Top-mounted input and output connectors make setting up and re-patching your system quick and easy. Both models feature high quality Neutrik™ balanced XLR connectors on all four mono microphone/line channels and two of the stereo channels. The XLR-equipped stereo channels can accept mono microphone input either via the XLR or phone jack connectors. The remaining stereo channels provide phone jack and pin jack connectors for compatibility with a wide range of sources. The four mono input channels also feature insert I/O connectors that let you patch external signal processing gear into those channels as required. Separate pin-jack 2TR inputs are provided to accept the output from a CD player or similar stereo source.
Six High-performance Microphone Preamplifiers with Switchable Phantom Power
The microphone preamplifiers in any mixer are critical to its overall performance. The microphone preamps built into the MG mixers inherit technology from Yamaha's top-line professional consoles, and have been painstakingly designed to deliver superior sonic performance with any dynamic or condenser microphone. All six microphone preamps feature switchable phantom power so you can take advantage of the natural, extended response of high-quality condenser microphones. A single switch turns phantom power on or off for all microphone channels.
Built-in Channel Compressors
Built-in channel dynamics is usually only found on high-end (and very expensive) consoles. The MG124C features Yamaha's innovative one-knob compression feature on mono input channels 1 through 4. This advanced feature can be a tremendous advantage in achieving great vocal sound. It can also be used to refine the sound of bass, guitar, and other sources. Conventional audio compressors with their threshold, ratio, knee, makeup gain and other controls can be complex and time-consuming to set appropriately for a given source. Yamaha's one-knob compressor eliminates the need for an engineering degree with a single control that lets you simply dial in the amount of compression you want.
3-band Channel EQ and High-pass Filter
Yamaha has decades of experience in building truly useful, musical equalization into successful pro consoles, and the channel equalizers in MG-series mixers carry on without compromise. Channels 1, 2, 3, 4, 5/6, and 7/8 feature full 3-band equalizers with LOW, MID, and HIGH controls, while 9/10 and 11/12 have 2-band EQ for smooth equalization of stereo sources.
Four Buses (Stereo and Group)
In addition to the main stereo bus the MG124C features a stereo group bus and outputs that can be used for convenient channel grouping. Assign switches for the stereo and group buses are located next to each channel fader.
Illuminated Channel ON Switches
All input channels feature illuminated channel ON switches chat can be used to individually add or remove channels from the mix without having to change the positions of the channel faders.
Effect/Aux Sends
The MG124C has dual AUX send controls for each channel, one switchable for pre- or post-fader operation, and one fixed for prefader send. Master send controls are also provided, as are RETURN level controls for the AUX and STEREO busses.
Stereo, Control Room, Monitor, and Headphone Outputs
Located above the mixer's master controls, on the convenient easy-access connector panel, are the main stereo output connectors, phone-jack monitor output connectors, pin-jack recording outputs, and a stereo headphone jack. These versatile mixers offer plenty of connectivity for a wide range of applications.
Bright 12-segment Meters for Visual Level Monitoring
Accurate visual level monitoring can help you achieve maximum signal-to-noise ratio without distortion. The MG mixer's bright, easy-to-read 12-segment LED meters make it easy to control system levels for optimum overall performance.
Smooth 60-millimeter Faders
Channel and master level control is accomplished via reliable, high-performance 60-millimeter linear faders that provide smooth, noise-free operation. An important advantage of linear faders is that they provide a direct visual indication of relative level settings.
Lightweight, Portable Design
In spite of the fact that they offer 12 channels, four buses, and a wealth of advanced features, the MG124C is small and light enough (only 2.9 kilograms, 6.4 pounds) to be tucked under an arm and set up just about anywhere. This remarkable mixer provides significant space savings along with huge performance benefits.
Easy Operation
All switches, controls, and displays have been designed and laid out for intuitive access and smooth, reliable operation with positive tactile and visual feedback
P.T. Yamaha Music manufacturing Asia — Manufacturing the electronic instruments and PA products
From the initial design to final manufacturing, all production processes for the Yamaha MG series mixing console are performed entirely inside the company. Moreover, every product that comes off our production line must pass strict quality controls using the sophisticated test instruments. Thus, all of this enables us to deliver the highest quality products to you.
Specifications
Total Harmonic Distortion |
Less than 0.1 % (THD+N) 20 Hz - 20 kHz @ +14 dBu (ST OUT) |
|
Frequency Response |
0, +1, -3 dB 20 Hz - 20 kHz @ +4 dBu (ST OUT) |
|
Input Connectors |
MIC: 6, LINE: 4 mono + 4 stereo, CH INSERT: 4, AUX RTN: 1 stereo, 2TR IN: 1 |
|
Output Connectors |
ST: 2, AUX SEND: 2, CH INSERT: 4, REC: 1 stereo, MONITOR: 1 stereo, GROUP: 2 Phone: 1 |
|
Crosstalk |
-70 dB @ 1 kHz |
|
Phantom Power |
+ 48 V |
|
Input HPF |
CH 1-4, CH 5/6-7/8, 80Hz, 12dB/oct |
|
CH EQ (MONO) ±15 dB (Max.) |
High |
10 k Hz: shelving |
Mid |
2.5 k Hz: peaking |
|
Low |
100 k Hz: shelving |
|
CH EQ (STEREO) ±15 dB (Max.) |
High |
10 k Hz: shelving |
Mid |
— |
|
Low |
100 Hz: shelving |
|
Compressor (COMP) |
Control x 1 (Gain / Threshold / Ratio), CH 1-2 |
|
LED Level Meter / Pre Monitor Level |
2 x 12 points LED meter (PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB). PEAK lights if the signal comes within 3 dB of the clipping level. |
|
Peak Indicator |
Red LED turns on when post EQ (ST CH: or post Mic HA) signal reaches -3dB below clipping (17dBu). |
|
Power Supply Adapter |
PA-20: AC 35VCT, 0.94A, Cable Length = 3.6m |
|
Power Consumption |
30 W |
|
Dimensions (W x H x D) |
346.2 mm x 86.1 mm x 436.6 mm |
|
Net Weight |
3 kg |
|
FAQ:
Q 1. what's the payment term?
A. We accept T/T, 30% deposit and 70% balance before shipping.
Q 2. how's the delivery time ?
A. usually it will take about 25-35 days for production
Q 3. tell me the standard of package?
A. For the small capacity, inside filling the foams, outside using carton, but for big capacity, we should use strong wooden case for protection.
Q 4. Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.
Q 5.Would you accept to use our logo ?
A. If you have good quantity, it absolute no problem to do OEM.
Q 6.We want to know month capacity.
A. It depends on which model. For example for relay type small capacity , month capacity can reach near 20000pcs and big capacity near 3000pcs.
Q 7.Where is your market?
A. Our products are popular in Brazil, Indonesia, Philippines, Italy, America, Pakistan and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benefit from our cooperation.
Q8. what kind of certificate you have ?
A. Our company already achieve ISO, BV, CE and ROHS.
Company profile:
“Zhejiang Winchoice Imp/Exp. Co., Ltd” is a company which is the joint of trade and industry, taking trade as a leader and technology as basic, rely on manufacturing and exporting the professional magnetic materials and audio equipments, supported by Zhejiang University and Nanjing University, have deeply research and development in voice and electronic amplifier technology.
Hangzhou Shengbo Electronic Technology Co., Ltd. is our shareholding factory, We operates its export business. The factory workshop covering an area of more than 10,000 square meters, manned by 200 employees, the main products are professional power amplifier, public address system, speaker box, audio mixer, etc., Annual sales exceed 50 million RMB, the professional power amplifier account half of the sales.
CIBAS HOLDING GROUP is a Chinese-foreign joint venture, controlled by “Zhejiang Winchoice Imp/Exp. Co., Ltd”, the main business is speaker box, amplifier, audio mixer, microphone and other audio products.
Our electroacoustic development department have a big professional research and development team, We have 10 R&D engineers who are specialized in electronic products for more than 10 years,strong technical capability do a big favor for our OEM order.
In year 2012, we won the “EXCELLENT HANGZHOU EXPORT TRADE COMPANY” honor. In the future, we will continuous improve our products and manage, rely on own factory, supply more higher cost-effective products for our customers.
