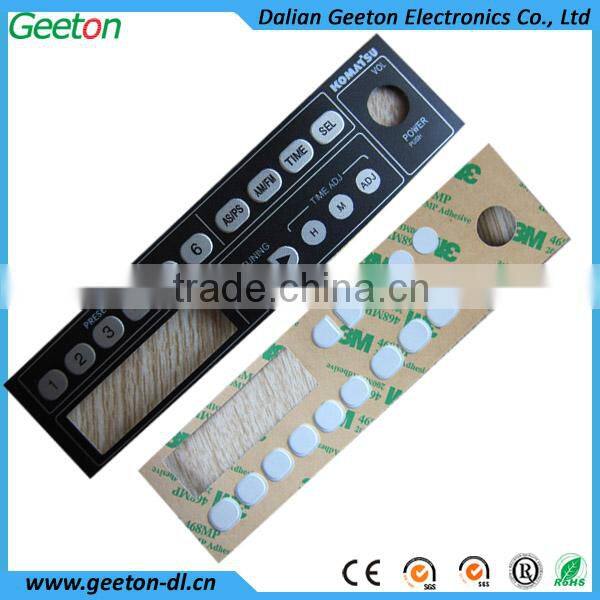

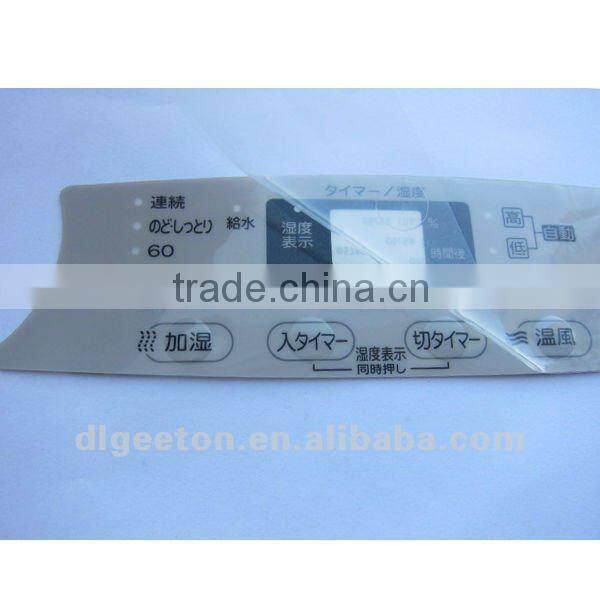

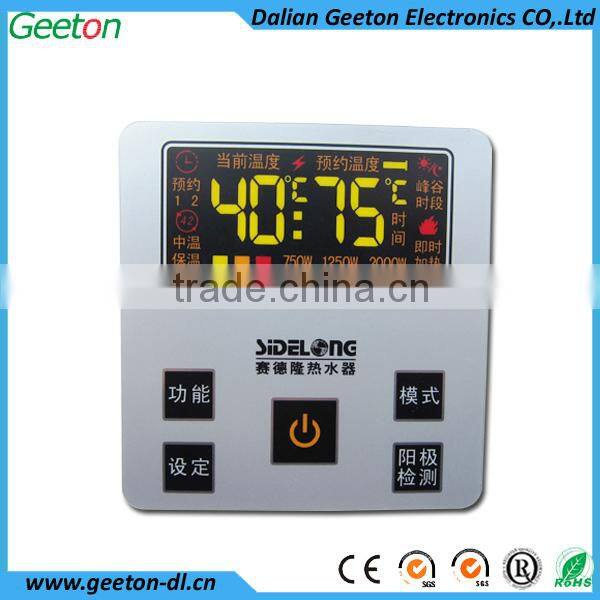

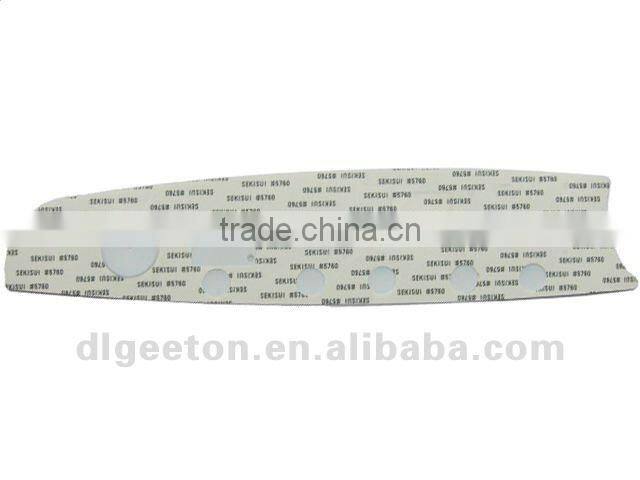

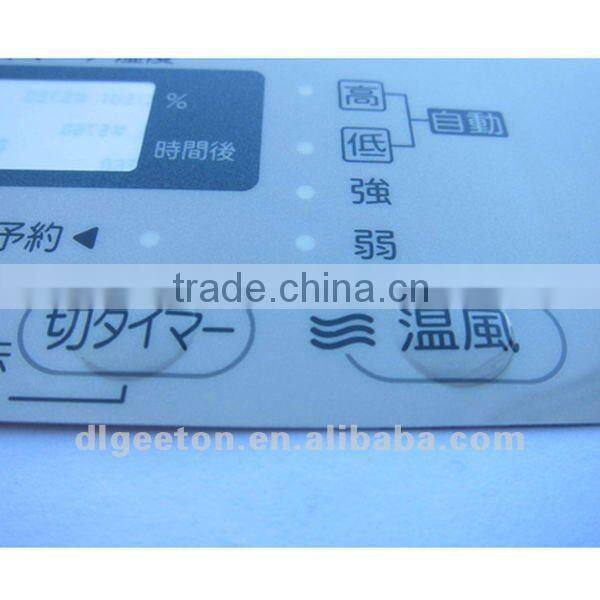

Polycarbonate Printing Electric Control Panel
Electronic characteristics | |
Circuit rating |
35V(DC),100mA,1 W |
Contact resistance |
10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation resistance |
>100MΩ 250V(DC) |
Contact bounc |
≤5ms |
Dielectric withstand |
250VRms(50 - 60Hz/1 min) |
Life expectancy |
flat type≥5million times,tactile type:≥1 million times |
Mechanical Properties | |
Operating pressure |
flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz) |
Switch stroke |
flat type 0.1 - 0.5mm,tactile type 0.6 - 1.5mm |
Environmental parameters | |
Operating Temperature |
-20°C - +80°C |
Storage temperature |
-40°C - +85°C |
Humidity |
40°C,90%-95%,240 hours |
Payment & Shipping terms:
Price: |
0.5-3.0/piece |
Minimum Order Quantity: |
100 pieces |
Port: |
Dalian |
Packaging Details |
PE bag, Carton, Wooden crate |
Delivery Time: |
10-12 days |
Payment Terms: |
L/C,T/T |
Supply Ability: |
5000 pieces per day |
Other Panel
Workshops Pictures
Package
Customers Visit
Certifications
Any colours, any logos are acceptable, free samples service, leave an inquiry to know more detail about the Price, Shipping and Discount.
