Tactile Embossed Button Membrane Panel
- 1500000 Piece / Pieces per Month
- Dalian
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | Geeton | |
| Model Number | GMS-268 | Application | Other, Control Keypad | |
| Keypad Button Material | Other, PET |
Product Description
Specifications
Membrane Panel1. Manufacturer
2. OEM&ODM service
3. We accept Escrow,so your found is safe
4. ISO9001,ISO14001,TS16949,RoHS

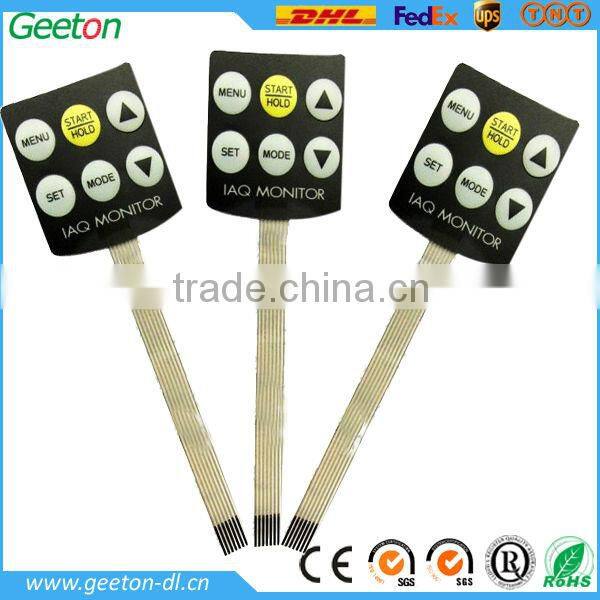

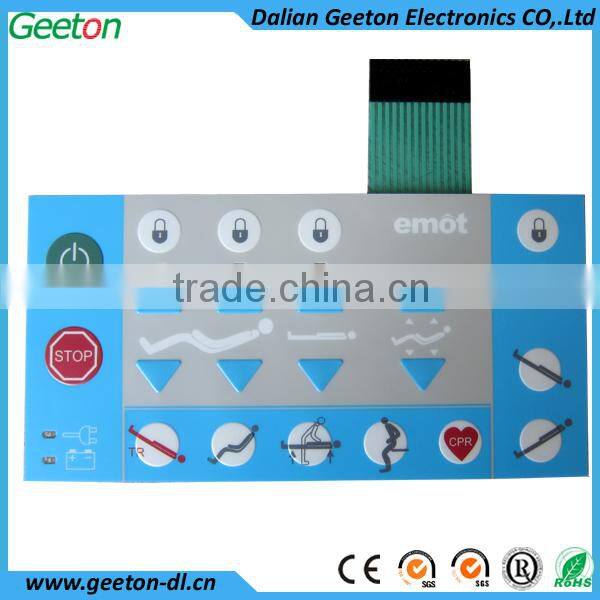

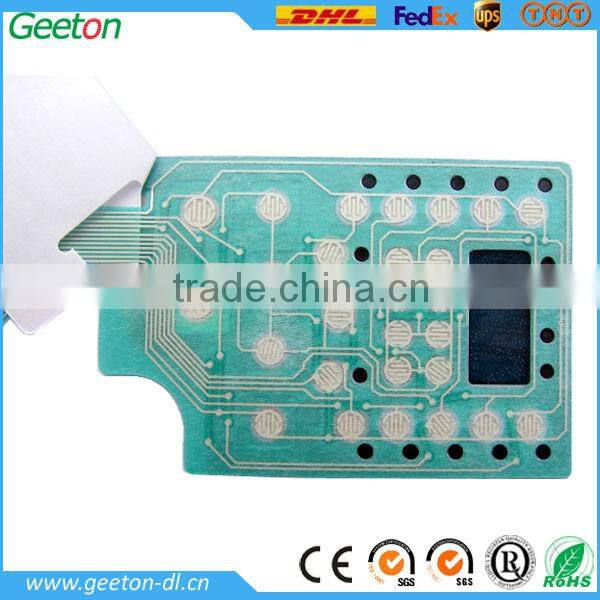

NO.1 Tactile Embossed Button Membrane Panel
NO.2 Membrane Panel Performance
Membrane Switch Performance | |
Electrical Performance | |
Circuit Grade | 35V(DC),100mA,1 W |
Loop Resistance | 10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation Resistance | >100MΩ 250V(DC) |
Dielectric Resistance | 250VRms(50 - 60Hz/1 min) |
Contact Chatter Time | ≤5ms |
Service Life | flat type≥5 million times |
tactile type:≥1 million times | |
Mechanical Properties | |
Operating Force | flat type 57-284g (2-10 Oz) |
tactile type 170-397g (6-14 Oz) | |
Switch Stroke | flat type 0.1 - 0.5mm |
tactile type 0.6 - 1.5mm | |
Environmental Parameters | |
Operating Temperature | -20°C - +80°C |
Storage Temperature | -40°C - +85°C |
Humidity | 40°C,90%-95%,240 hours |

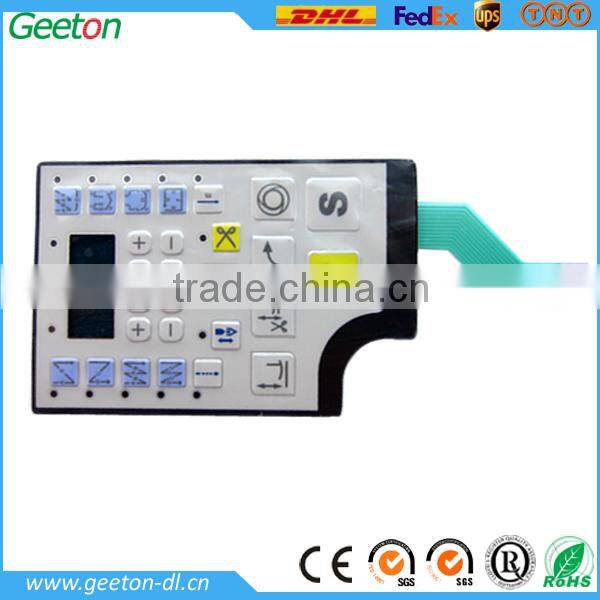

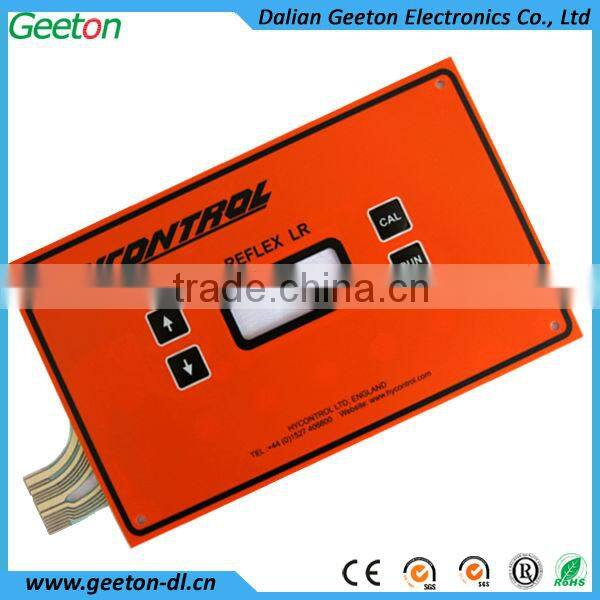

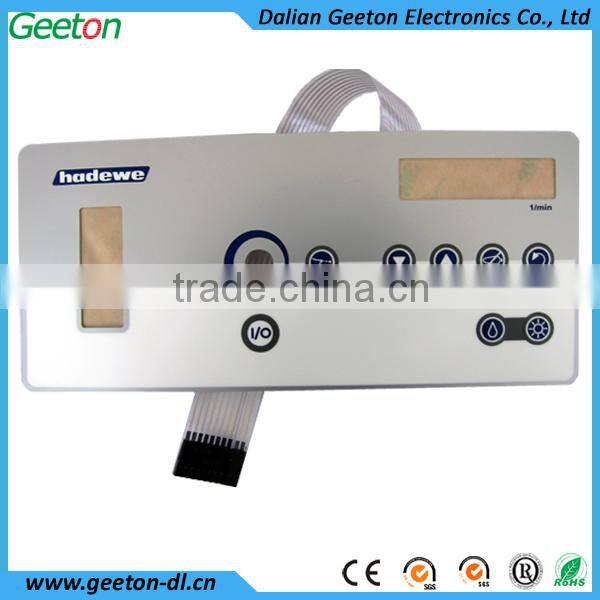

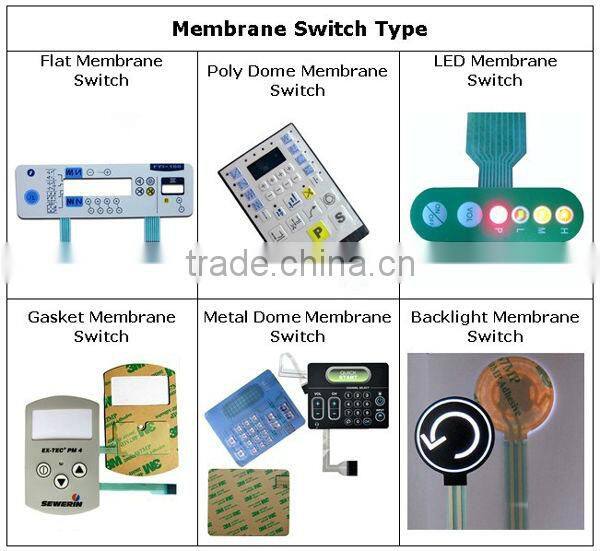

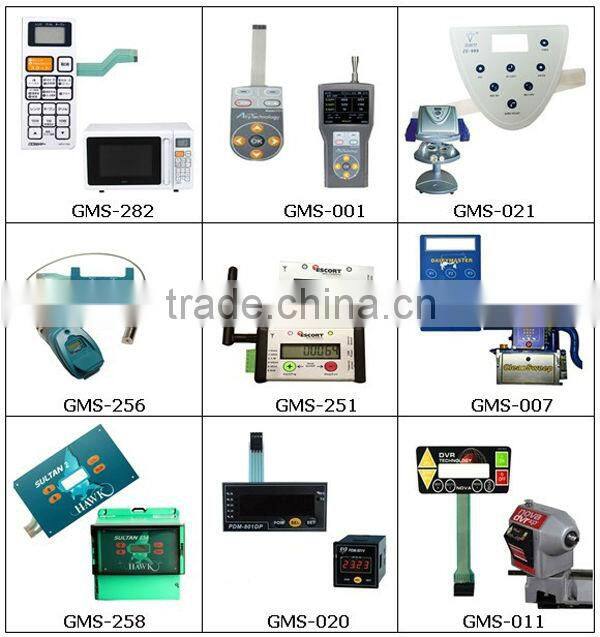

NO.3 Membrane Panel Type & Application & Recommend
NO.4 Flow Chart
NO.5 Why Choose Geeton
Brief Company Profile
1. Founded in 2003, have 6000 m2 workshop area and 200 employees.
2. Main products: membrane switch, graphic overlay, label, acrylic panel, sticker,
FPC and 2D&3D automotive dials.
3. Application Fields: household electrical appliances, beauty medical equipment,
sports equipment, telecommunication, office automation, test instrument,
children’s toys, industrial meters and automotive instrument.
4. Certification: ISO9001:2008, ISO14001:2009, TS16949:2009, raw material can meet
RoHS standard.
5. Cooperative Clients
Certification

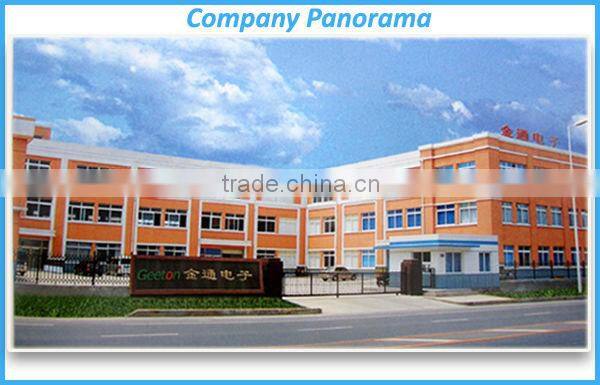

Custmer Visiting & Company Panaroma
Contact Us
- Dalian Geeton Electronics Co., Ltd.
- Contact nameQing Du Chat Now
- Phone86-411-87663988,13898662128
- AddressNo.2, Jinquan Road, Zhanqian Street, Jinzhou District, Dalian, Dalian, Liaoning
