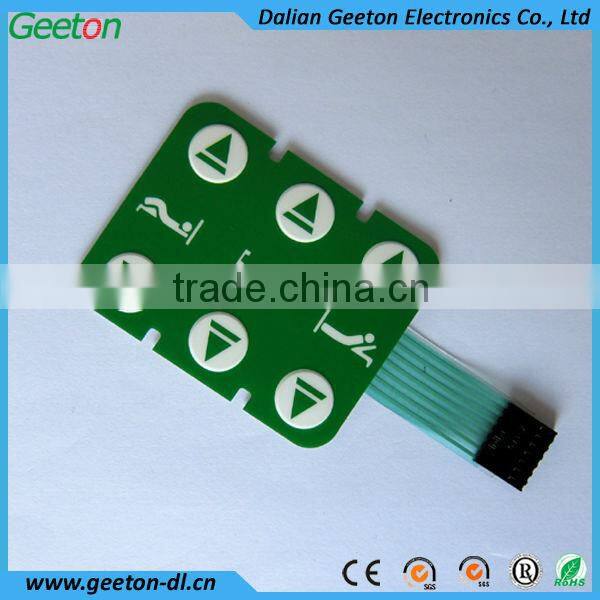

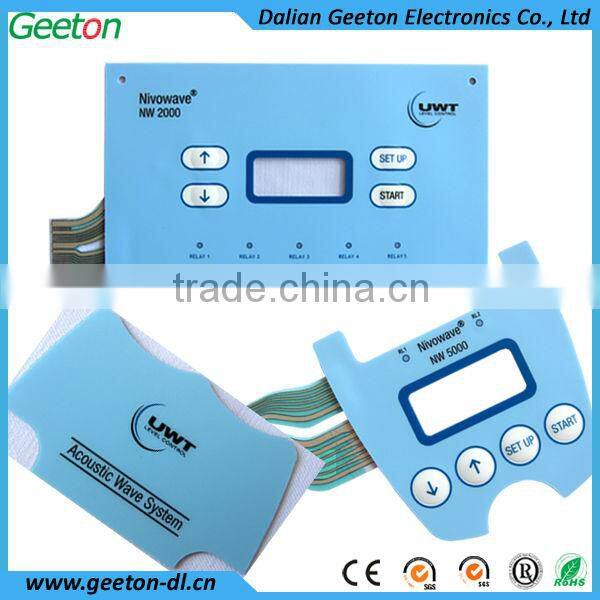

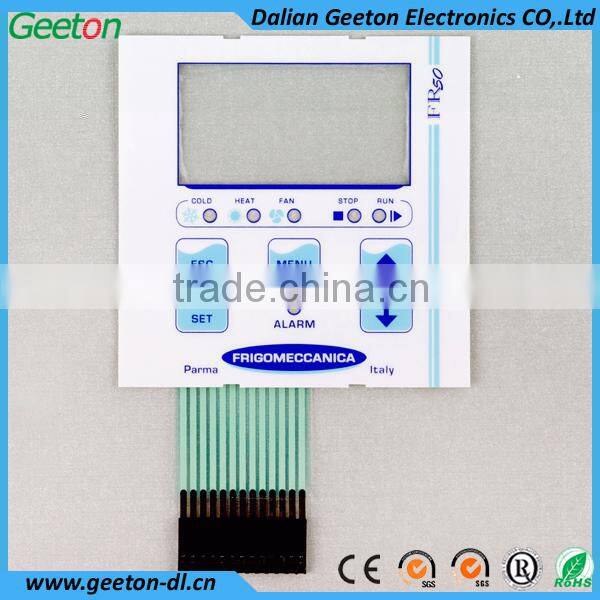

Embedded LEDs Membrane Tactile Keypad With PMMA Panel

Electronic characteristics

Circuit rating

35V(DC),100mA,1 W

Contact resistance

10Ω - 500Ω(According the trace length and materials to confirm)

Insulation resistance

>100MΩ 250V(DC)

Contact bounce

≤5ms

Dielectric withstand

250VRms(50 - 60Hz/1 min)

         Life expectancy

flat type≥500 million times,tactile type:≥1001 million times

Mechanical Properties

Operating pressure

flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz)

Switch stroke

flat type 0.1 - 0.5mm,tactile type 0.6 - 1.5mm

Environmental parameters

Operating Temperature

-20°C - +80°C

Storage temperature

-40°C - +85°C

Humidity

40°C,90%-95%,240 hours

Payment & Shipping terms:

Price

2.5-4.0/piece

Minimum Order Quantity

100 pieces

Port

Dalian

Packaging Details

PE bag, Carton, Wooden crate

Delivery Time

10-12 days

Payment Terms

L/C,T/T

Supply Ability

5000 pieces per day

membrane switch advantages:

Appearance

Beautiful, bright in color

Design

Small size /   light weight  /  thin thickness /  OEM

Feature

Abrasion resistant  /  Tightness is good  /  moisture-proof  /  dust-proof anti-oil  /  anti-corrosion  /  erosion of harmful gases proof  /            acid and alkali proof  /  quake proof.

Quality

In-house 100% functionally tested / long life span

Operation

Easy to operate  /  intuitive  /  safe  /  reliable  /  Installation and connection convenience.
