Specifications

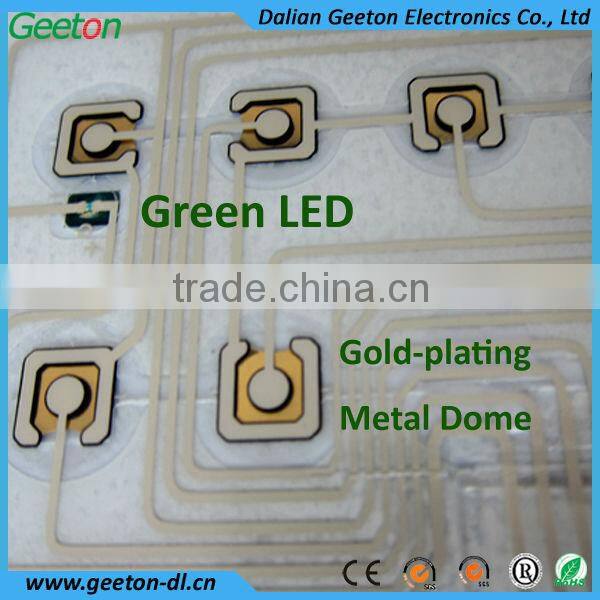

Membrane Keypad1.Feature: Gold-Plating Metal Dome &LED
2.OEM &ODM
3.ISO9001,ISO14001, TS16949
4.Panasonic,OMRON,TOSHIBA

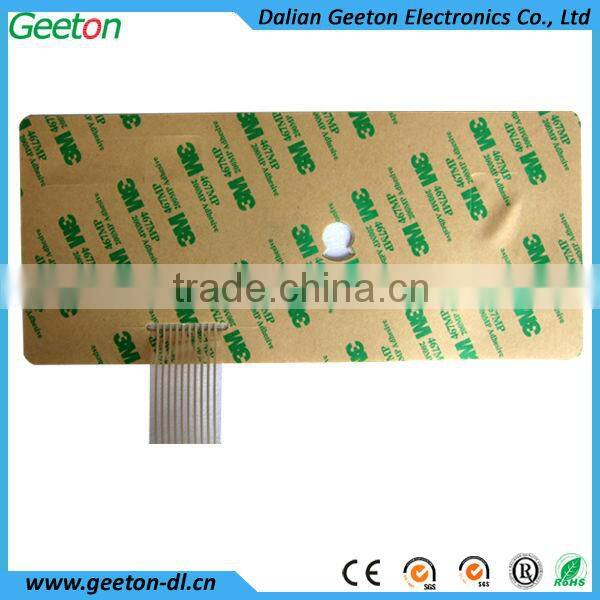

NO.1 Waterproof Membrane Keypad
NO.2 Membrane Keypad Advantages
Membrane Switch Performance | |
Electrical Performance | |
Circuit Grade |
35V(DC),100mA,1 W |
Loop Resistance |
10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation Resistance |
>100MΩ 250V(DC) |
Dielectric Resistance |
250VRms(50 - 60Hz/1 min) |
Contact Chatter Time |
≤5ms |
Service Life |
flat type≥5 million times |
tactile type:≥1 million times | |
Mechanical Properties | |
Operating Force |
flat type 57-284g (2-10 Oz) |
tactile type 170-397g (6-14 Oz) | |
Switch Stroke |
flat type 0.1 - 0.5mm |
tactile type 0.6 - 1.5mm | |
Environmental Parameters | |
Operating Temperature |
-20°C - +80°C |
Storage Temperature |
-40°C - +85°C |
Humidity |
40°C,90%-95%,240 hours |

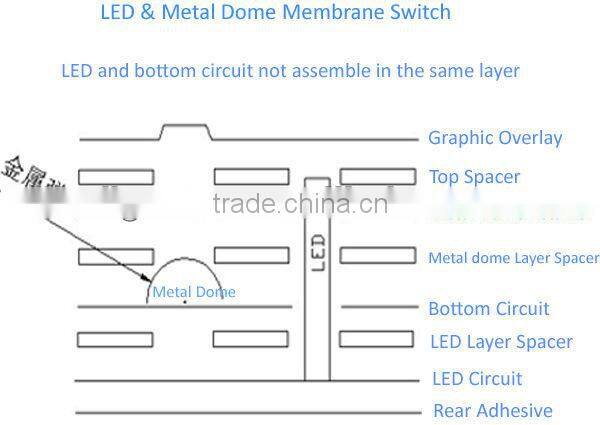

No.3 Products Structure
NO.4 Certification
NO.5 Workshop Pictures
NO.6 Cooperative Clients
If you have any queries about our products, pls feel free to contact us. We are always here.
