HANSHIN 22448-8J115 22448-8H315 Electronic Ignition Systems For Cars MITSUBISHI Ignition Control Module H6T20173

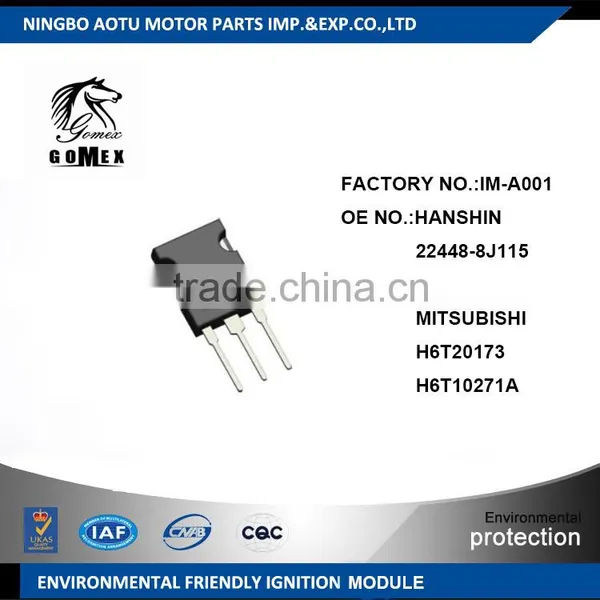

IM-A001 & Dimension

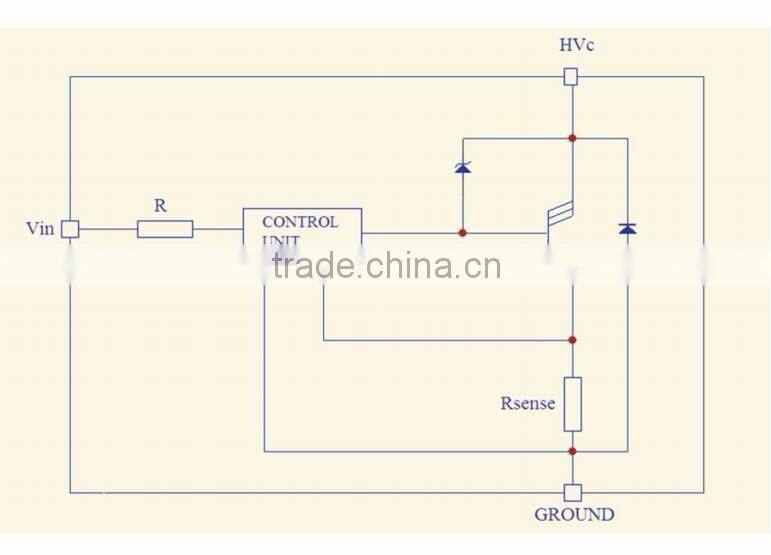

Functional block diagram
Description
The smart darlington IM-A001 especially developed for driving ignition coil in automotive ignition circuits can be controlled either by a voltage source or by a current source.
IM-A001 is a monolithic integrated circuit made using semiconductor process technology, which combines
a darlington transistor and a control circuit.
The device has good heat dissipation ability, the Thermal Expansion Coefficient is the same as epoxy,
which enable a high resistant on Thermal Shock Test.

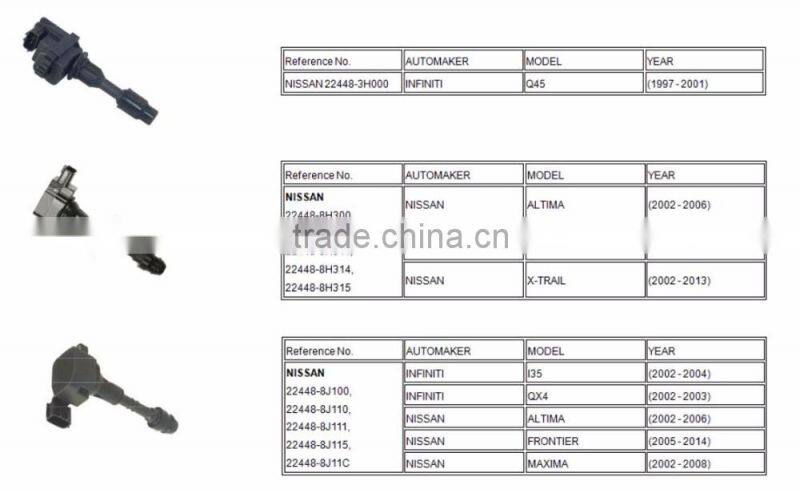

Applications on Ignition Coils (not limited to what is showed below)

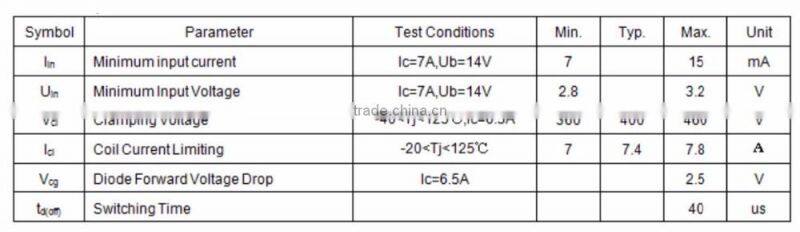

Technical Specifications of IM-A001

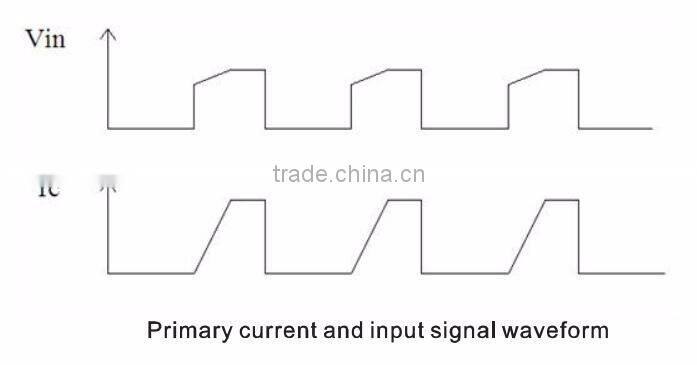

Waveform
Advantages:
1. 100% test before selling
2. 100% brand new and never used

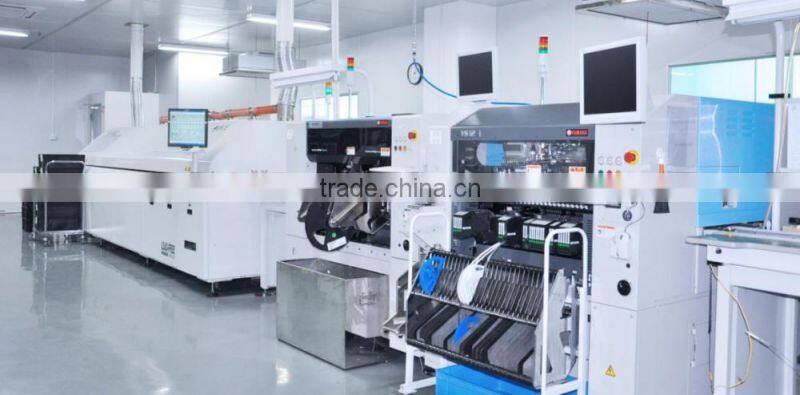

3. Advanced equipment
4. Warranty offered
5. Prompt delivery
6. Good reputation
7. Match original equipment exactly for a perfect fit, easy to install
8. Great Customer Service
FAQ:
Q1. How is your production management and quality control system?
Our quality management system ensures the fulfilment of our customers needs. All processes ranging
from the first contact with our customers to delivery and service are predefined and managed by the
particular team in order to achieve customer satisfaction.
Quality Principle
1 . we want satisfied customers. For this reason, a high quality of our manufactures and our services is
one of the ultimate company ambitions. This applies for all of our performances adduced by our
employees.
2. our customers are our quality standard; they are the focal point of our work and value our performance.
3. the quality of our products is also based on the quality of our purchased parts. So we demand highest
quality from our suppliers and support them in achieving our shared quality objectives.
Q2. Can your factory print our brand on the product?
Yes. Customers need to provide us a logo usage authorization letter to allow us to print customer’s logo on the products.
Q3. Can I visit GOMEX factory? Can your factory arrange transportation for me?
My dear, it is a great honor to invite you to visit our factory. Our factory is located in CIXI,NINGBO City, Zhejiang province.
We can arrange our driver to pick you up from your hotel when you arrived in Shanghai ,Hangzhou or Ningbo City .
Q4. Is your factory able to design our own package and help us in market planning?
Gomex is willing to help our customers to design their package box with their own logo.
We have a design team and a marketing plan design Team to service our customers for this.
Q5. Can you offer free samples?
A: It depends on the sample costs, but we do not pay freight costs.
Q6. Can you help to ship the goods?
A: YES. We can help to ship the goods through customer forwarder or our forwarder.
Q7. What are our major market?
A: Our main markets are Europe, Russia, Middle East, North America, South America ,Western Africa, ect.
