KDS Series Plastic Vibrosieve , From 9 Years' Gold Supplier !

Name: KDS Series Plastic Vibrosieve , From 9 Years' Gold Supplier !
Brand: BXKM
SKU: 108177995
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

BXKM

Model Number:

KDS Series

Zhangjiagang Baixiong Klimens Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name BXKM

Model Number KDS Series

Specifications

plastic vibrosieve
1.Diameter of screen surface:600,1000,1500mm
2.Single-and multiple-layer sortin
3.capacity:1T/H,2.5-6T/H

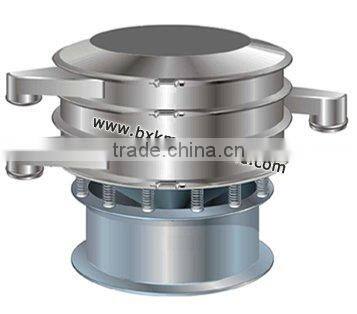

KDS Series plastic Vibrosieve

1.Features:

(1) Applicable to sizing particles and screening power and liquid;

(2) Excellent power generator;

(3) Single-and multiple-layer sorting;

(4) Low blockage of sieve holes;

(5) Easy replacement of the sieve;

(6) No mechanical vibration conduction;

(7) Wide range of materials to be sieved.

2. Specifications

Model	Power		Diameter of sieve(mm)	Dimensions(mm)	NO. of sieve
KDS-300	0.125		200	350×300×737	1
KDS-450	0.37		450	500×500×650	1
KDS-600	-1F	0.55	550	770×770×720	1
	-2F			770×770×820	2
	-3F			770×770×920	3
KDS-800	-1F	0.735	750	900×900×780	1
	-2F			900×900×930	2
	-3F			920×920×1080	3
KDS-1000	-1F	1.47	950	1180×1150×880	1
	-2F			1180×1180×1030	2
	-3F			1180×1180×1170	3
KDS-1200	-1F	1.84	1150	1380×1350×1050	1
	-2F			1380×1350×1220	2
	-3F			1380×1350×1370	3
KDS-1500	-1F	2.2	1450	1800×1800×1120	1
	-2F			1850×1850×1320	2
	-3F			1900×1900×1520	3
KDS-1800	-1F	3.0	1730	1950×1950×1470	1
	-2F			1950×1950×1630	2
	-3F			1950×1950×1790	3
KDS-2000	-1F	4.0	1930	2200×2200×1630	1
	-2F			2200×2200×1800	2
	-3F			2200×2200×1970	3
KDS-2500	-1F	4.0	2430	2700×2700×1880	1
	-2F			2700×2700×2050	2
	-3F			2700×2700×2200	3
Other special size can produce as customized.
