PET bottle washing line

Specifications

pet bottle washing line
1.dirty bottle to clean dry flakes
2.with lable, paper sepratatin
3.capacity:150-1000kgh
4.CE

pet bottle washing line



(1) Full automatic crushing washing line for PET

This line is the best proposal for PET bottles recycling , with full system configuration including: label removing , crushing , flotation, hot washing , floatation, drying , vibrosieve and final paper suction.



(2) Processing capacity : 300kg/h, 500kg/h. 1000kg/h and more as per requirement by customer.



(3) Flow chart:



(4) System configuration:



Item	Description
1	Inspection belt conveyer with iron absorber
2	Belt conveyer
3	Label removing machine
4	Belt conveyer
5	Crusher
6	Screw conveyer
7	Flotation tank
8	Screw conveyer
9	Hot washing tank ( with electric heating )
10	Screw conveyer
11	High speed Scrubbing washing unit
12	Flotation rinsing unit 01
13	Flotation rinsing unit 02
14	Centrifugal dryer
15	Vibrosieve ( powder dust separator )
16	Electric heating drying unit
17	Small paper and label separator
18	Silo
19	Electric control cabinet

















































brief specifications :

Final PET flakes size : 8~10mm

Humidity of final PET flakes:  less than 1.5%

Impurity in output PET flakes :   Total impurity max. 250ppm

                                In which :

                                PE/PP contamination … max. 80ppm

                                PVC label contamination …max. 80ppm

                       ( those PVC bottles involved can not control by the line )

                                Paper contamination … max. 10ppm

                                Metal, glass, wood, sands … max. 80ppm

Steel parts : wet parts made by stainless steel SS304

Crusher blades : SKD-11

Electric elements ( contactors and relays ) : Siemens brand



detailed pictures :















                            label remover                                              double screw conveyer

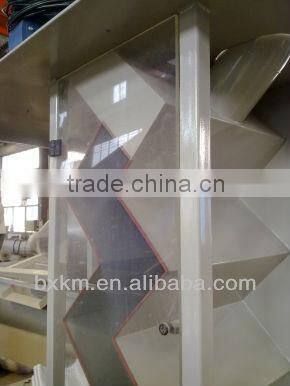

paper scraps separator :







CE :
