Used Plastic Bottle Recycling Machine
- Shang Hai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Baixiong Klimens | Model Number | PRP Series | |
| Use | Bottle Crusher | Plastic Type | Other, PET, PET | |
| Shaft Design | Single | Power | 250~360 KW | |
| Capacity | 300~1000kg/h | Voltage | 3 phase 380 V 50Hz or as required | |
| Power(W) | 2500000~360000 | Dimension(L*W*H) | 50m* 3.5m*3.5m | |
| Weight | Min 8 T | Certification | CE, ISO9001 & CE Certification | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
plastic bottle recycling machine1.dirty bottle to clean dry flakes
2.with lable paper separator
3.capacity:150-1000kgh
4.CE
plastic bottle recycling machine :
(1)Full automatic PET bottle crushing washing line
This line is the best proposal for PET bottles recycling , with full system configuration including: label removing , crushing , flotation, hot washing , floatation, drying , vibrosieve and final paper suction.
(2) Processing capacity : 300kg/h, 500kg/h. 1000kg/h and more as per requirement by customer.
(3)Steel parts : wet parts made by stainless steel SS304
Crusher blades : SKD-11
Electric elements ( contactors and relays ) : Siemens brand
(4) Flow chart:
(5) System configuration:
Item | Description |
1 | Inspection belt conveyer with iron absorber |
2 | Belt conveyer |
3 | Label removing machine |
4 | Belt conveyer |

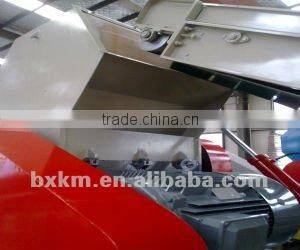

5 | Crusher |

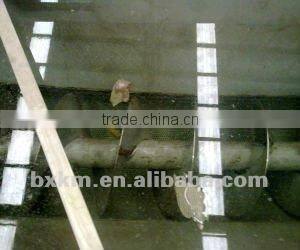

6 | Screw conveyer |

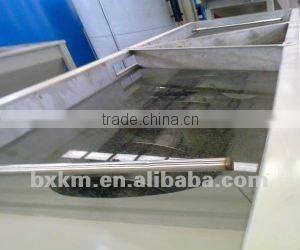

7 | Flotation tank |
8 | Screw conveyer |
9 | Hot washing tank ( with electric heating ) |
10 | Screw conveyer |
11 | High speed Scrubbing washing unit |
12 | Flotation rinsing unit 01 |
13 | Flotation rinsing unit 02 |
14 | Centrifugal dryer |
15 | Vibrosieve ( powder dust separator ) |
16 | Electric heating drying unit |
17 | Small paper and label separator |
18 | Silo |
19 | Electric control cabinet |

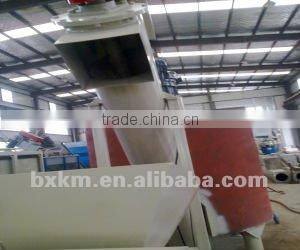

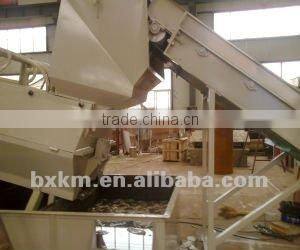

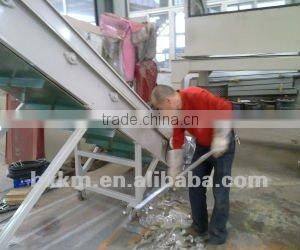

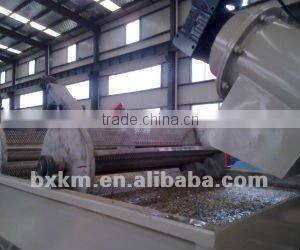

Crushing and washing line for PET bottles
CE :
