Dirty PET bottle/flakes crushing washing line

Specifications

wet parts made by SS304
no matter how dirty the bottles are ,it will be no problem

pet bottle recycling line

(1)Full automatic PET bottle crushing washing line:



This line is the best proposal for PET bottles recycling ,even the bottles are very dirty, with full system configuration including: label removing , crushing , flotation, hot washing , floatation, drying , vibrosieve and final paper suction.



(2) Processing capacity : 300kg/h, 600kg/h. 1000kg/h and more as per requirement by customer.



(3)Steel parts : wet parts made by stainless steel SS304

Crusher blades : SKD-11

Electric elements ( contactors and relays ) : Siemens brand.



(4) Flow chart



(5) System configuration:



Item	Description
1	Inspection belt conveyer with iron absorber
2	Belt conveyer
3	Label removing machine
4	Belt conveyer
5	Crusher
6	Screw conveyer
7	Flotation tank
8	Screw conveyer
9	Hot washing tank ( with electric heating )
10	Screw conveyer
11	High speed Scrubbing washing unit
12	Flotation rinsing unit 01
13	Flotation rinsing unit 02
14	Centrifugal dryer
15	Vibrosieve ( powder dust separator )
16	Electric heating drying unit
17	Small paper and label separator
18	Silo
19	Electric control cabinet

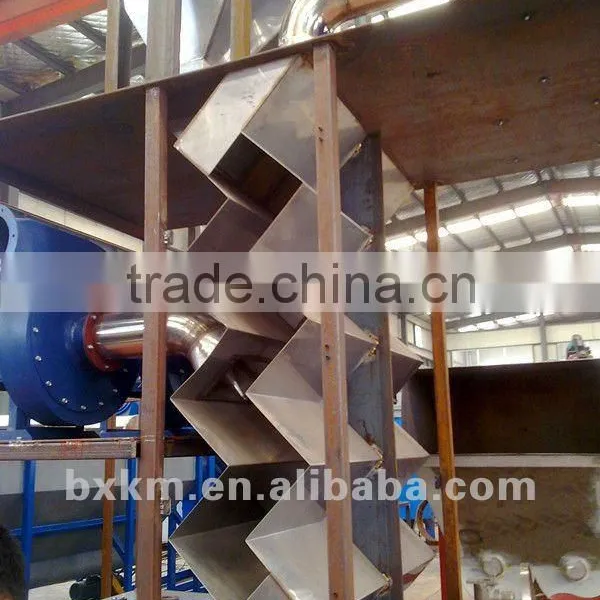

Photoes:
