Specifications
wilder input voltage small silent operation inverter1.small scale
2.352*123*330(mm)
3.Modified sine wave
4.CE&ROHS&ISO9000

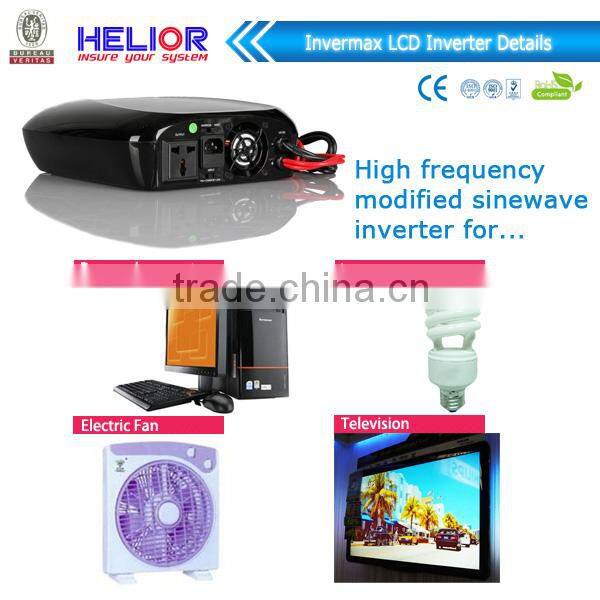

wilder input voltage small silent operation inverter (InverMax LCD)
Outstanding Feature
1. High frequency
2. Rack Tower Design
3. Off mode charging inverter
4. Full automatic and silent operation
5. User selectable for accepting wider input voltage
6. Compact size for convenient use and storage
7. Built-in 8Amp super charger for up to 100Ah battery
8. Small Scale and cost effective inverter for home appliances and office equipment
9. Two-steps intelligent charging control to reduce the recharging time
Technical Specification
Model&Capacity
| Model | INVERMAX 500 | INVERMAX 1000 | INVERMAX 1500 | INVERMAX 2000 | |
| CAPACITY | VA/W | 500VA /300W | 1000VA /600W | 1500VA /900W | 2000VA /1200W |
Input
| Nominal Voltage | 110/120VAC OR 220/230/240V AC | |||
| Input Voltage Range | 90-145VAC or 170-280VAC (Narrow Range) | |||
| 90-145VAC or 90-280VAC (Wide Range) | ||||
| Voltage | 120VAC or 230VAC | |||
| Voltage Regulation (Batt.Mode) | 10%/-18% | |||
| Frequency | 50HZ or 60HZ | |||
| Waveform | Modified Sinewave | |||
Battery
| DC Voltage | 12V DC +/-0.2V | 24V DC +/-0.2V | ||
| Charging Current | 8 Amp +/-1 Amp | 10Amp +/-1 Amp | 10Amp +/-1 Amp | 10Amp +/-1 Amp |
| Overcharging Protection | 14.5V +/- 0.3V charger stops and fault | 29V+/- 0.6V charger stops and fault | ||
Indicator
| LCD display | LCD display shows all the parameters and status of the inverter | |||
Audible Alarm
| Low Battery Voltage in battery mode | Sounding every 2 seconds | |||
| Overload | Sounding every 0.5 second | |||
| Fault | Sounding continuously | |||

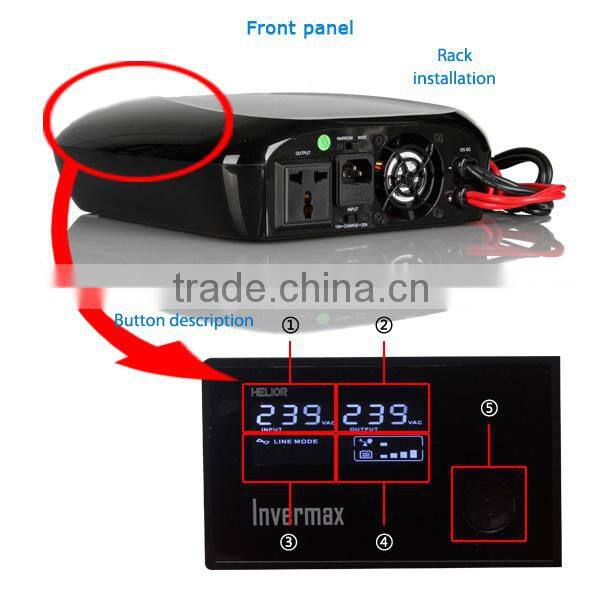

| 1 | Input Voltage |
| 2 | Output Voltage |
| 3 | Battery Mode/AC mode |
| 4 | Battery Power |
| 5 | ON/OFF Button |
Customer Feedback
Our R&D team have tested your UPS, they are satisfied with the performance of the sample. All the test
results are complying with the specification. We are highly appreciated it. --- N. Raja (from Chennai, India)
We are quite impressive with the IGBT function of this UPS. We are now trying to apply this model on our
telecommunication systems. --- Robert Alles (from Munich, Germany)
Order information
Trade term: FOB Shenzhen / Hongkong
Delivery time: 7-21 days after confirmed the order
Packaging Detail:Standard export carton or OEM package
Warranty
1 years since the date of purchase
Warranty term
1. Under the terms of this warranty, if failure occurs under normal usage within warranty period, Helior Technology will provide free maintenance based on the proof-documents.
2. If Failure or damage occurs due to incorrect operation, wire connection, or any other mis-opeartions, Helior Technology will provide pay maintenance on charge basis.
More detailed info for family UPS & Inverter, please do not hesitate to inquiry now!
