Parameters
Name |
Collie motorcycle RT150-B |
Engine Type |
RW162FMJ-5(CGS150) |
Single cylinder,4-stroke,air-cooling,vertical | |
Bore×Stroke(mm) |
62*49.8 mm |
Displacement(mL) |
150.3ml |
Max. Power(kw/rpm) |
8.8kw/8,500rpm |
Max. Torque(N.m /rpm) |
11.0N.m/6,500rpm |
Fuel Tank Capacity(L) |
17.5L |
Gear |
5-speed gearshift |
Transmission Mode |
Chain drive |
Start Mode |
Electric/kick |
Max. Speed(km/h) |
95km/h |
Front Tires |
2.75-18 |
Rear Tires |
3.00-18 |
Front Brake |
disc brake |
Rear Brake |
drum brake |
Dry Weight(kg) |
110kg |
Compression Ratio |
9.0:1 |
Fuel Consumption(L/100 km) |
≤2.1L/100km |
Ignition Mode |
CDI |
Min. Ground Clearance(mm) |
160mm |
Product Dimensions(mm×mm×mm) |
2025mm*750mm*1100mm |
Seat Hight(mm) |
770mm |
Wheelbase(mm) |
1305mm |
Loading Capacity(kg) |
150kg |
Climbing Ability(°) |
≥25° |
Min. Turning Radius(mm) |
2,300mm |

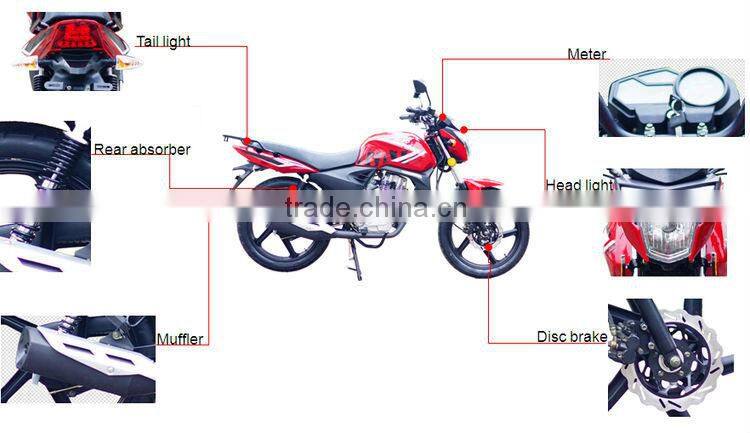

Other configurationlist
Muffler type |
Side hanging Single muffler/color is black |
Current |
12V ,8-class full wave AC current |
Clutch mode |
Manual |
Decorative cover |
Sliver plated |
Meter |
Mechanical single meter |
Head light |
With LED decorative light |
Tail light |
LED |
Turn light |
Normal lights |
Fuel tank decorative light |
LED |
Rear view mirror |
With “RATO’’ character |
Battery |
Normal 12N7A-3B |
Cargo shelf |
Normal |
Remark: Picture here are for your reference.
For Different color and configuration vehicles,please contact us at once.

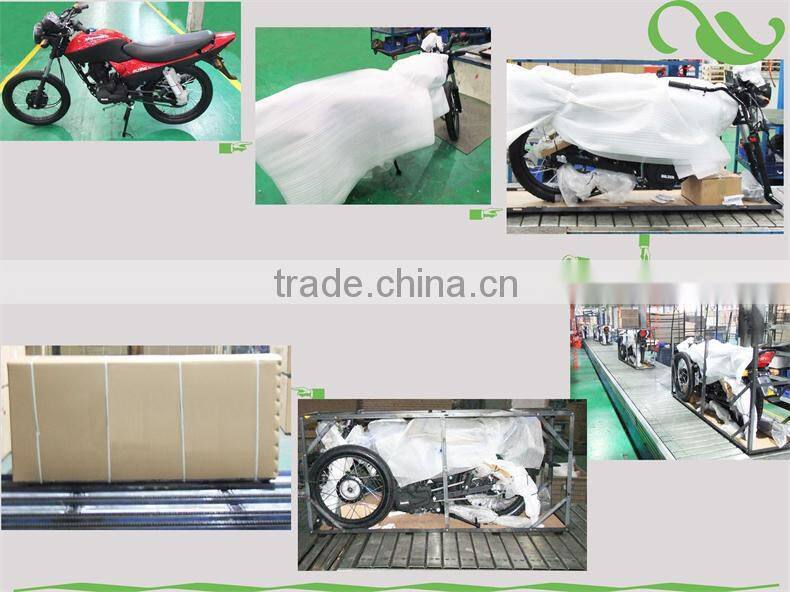

Normally, we are packing vehicles as following Procedures:
plasticfilms+irons+cartons
carton size: 1860*580*860mm, 24units/20GP;50 units/40GP;75units/40HQ.
For example:
RATO BACKGROUND:
Established in June, 2007
Registered capital:54 Millon USD
Factory area:460,000sqm
Address : Zone B, Shuangfu Industrial park,Jiangjin District,Chongqing,China.
Products:Motorcycles , ATVS,General industrial equipments and Spare parts also.
Engineers: More than 130 members
Certification: ROHS,ISO14001,ISO9001,CE,EPA,CARB etc.
RATO INTRODUCTION
“To work with ideas and happiness”, with this belief, RATO aiming to make a difference. Adhere to people-oriented, RATO has been highly praised by our partners, and create the Operation philosophy, to make our customers and employees satisfied.
RATO has an international R&D team of more than 130 engineers which can design and develop complete products according to customer requirements and company development needs. At present RATO has developed its own series products with independent intellectual property. Therefore, RATO has an annual output capacity of 2 million sets engines, 200,000 sets motorcycles and ATVs, as well as 300,000 set motor engines.
RATO’s products have been exported to America, Europe, Asian, Africa etc. Under the support of the company, RATO’s international sales team devoted to provide the best and the fastest sales and after sales services to meeting the customers’ requirements in the highest degree. Make sure that our customers been satisfied in buying and using our products.
Pictures for RATO:
Vehicles workshop(Motorcycles and ATVs)
QC&Testing Equipments
Spare Parts Packing Line
Shipping
1.RATO has an after sales service team ,who can offer the most professional Products Catalogue in motorcycle industy,help to solve many problems when using our motorcycles ,vehicles and machines.
2.The package of spare parts carries properties of whole, subordinate,independent and marketable.
3.Our after sales sevice team has been combined of many technical staff since the factory was established.
4.Spare parts of vehicles and machines are supplied as well as doing service.
1.What is your MOQ?
Re: One 20’ container for vehicles or machines should be appreciated, while you can do some consolidation. However, spare parts would depend on the detailed products.
2.What is your delivery time?
Re:Normally 35 days for motorcycle and general purpose machines,25days for spare parts once your order placed.
3.What is your payment?
Re:T/T,L/C etc.
4.Whether do you support the OEM?
Re:Certainly, and condition is that total value of per order must be over than 100,000USD .
5.What's your transportation?
Re:By air,by sea(LCL,FCL).
If anything that you want to know ,please contact us.
By the way,thanks for reading our introduction!
