48 V 4000W inbuilt battery inverter (InverMax )
Out standing feature
1.High frequency switching technology for compact size and light weight 50/60Hz inbuilt battery 2000W inverter (InverMax )
2.Pure sinewave output
3. High efficient DC to AC conversion minimizing energy loss
4. Supporting home appliance/ office equipments/ Lighting Equipments / Moto-Based Equipment
5. Solar. wind. hydro, Generator
Line Mode Specification
| MODEL | InverMax 3kva | InverMax 5kva | |
| Input Voltage Waveform | Sinusoidal (utility or generator) | ||
| Rated Output Power | 3000VA/2400W | 5000VA/4200W | |
| Nominal Input Voltage | 230Vac | ||
| Input Voltage Range | 170Vac to 280Vac (Normal); 90Vac to 280Vac (generator/Wide range) | ||
| Max AC Input Voltage | 300Vac rms | ||
|
50Hz / 60Hz (Auto detection) | ||
| Efficiency (Line Mode) | >95% | ||
| Transfer Switch Rating | 30A | 40A | |
| Transfer Time (AC to DC) | 10ms (typical) 20ms (typical) | ||
| Transfer Time (DC to AC) | 10ms (typical) 20ms (typical) |
||
Inverter Mode Specification
| MODEL | InverMax 3kva | InverMax 5kva |
| Output Voltage Waveform | Pure Sine Wave | |
| Power Factor | 0.8 | 0.84 |
| Nominal Output Voltage(V) | 230Vac | |
| Output Frequency(Hz) | 50Hz / 60Hz ± 1Hz | |
| Output Voltage Regulation | ±10% rms | |
| Nominal Efficiency | >90% | |
| Over-Load Protection | fault after 5s@≥150% load; fault after 10s@110%~150% load | |
| Surge rating | 6000VA | 10000VA |
| Capable of starting electric motor | 1.5HP | 2.5HP |
| Output Short Circuit Protection | Current limit (Fault after 4 cycles max) | |
Charger Mode Specification
| MODEL | InverMax 3kva | InverMax 5kva |
| Nominal Input Voltage | 230Vac | |
| Input Voltage Range | 180V~ 270Vac(Normal range);100V~ 270Vac(generator/wide range) | |
| Nominal Output Voltage | According to the battery type | |
| Nominal Charge Current | 10A @Vi/p<170Vac; 20A@Vi/p=230Vac; 10A @Vi/p>280Vac | 20A(95-175v,gen/wide,only); 35A(175-275v)@35A setting; 20A(175v-275v)@20A setting) |
| Charge Algorithm | Boost CC (constant current stage) →Boost CV (constant voltage stage) →Float (constant voltage stage) | |
| Battery Type Setting | Flooded, AGM/Gel | |
General Specification
| MODEL | InverMax 3kva | InverMax 5kva |
| Cooling | Forced Air, variable speed fan | |
| Dimension | 268mm(W)*86mm(H)*330mm(D) | 350mm(W)*110mm(H)*407mm(D) |
| Net Weight | 5.1Kg | 9Kg |

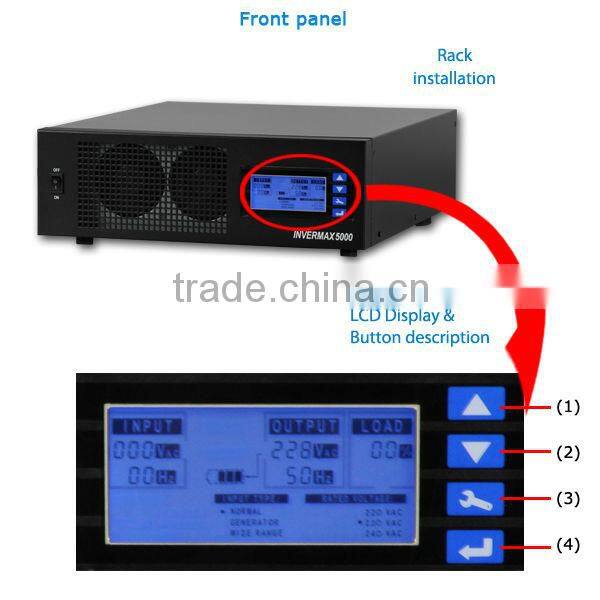

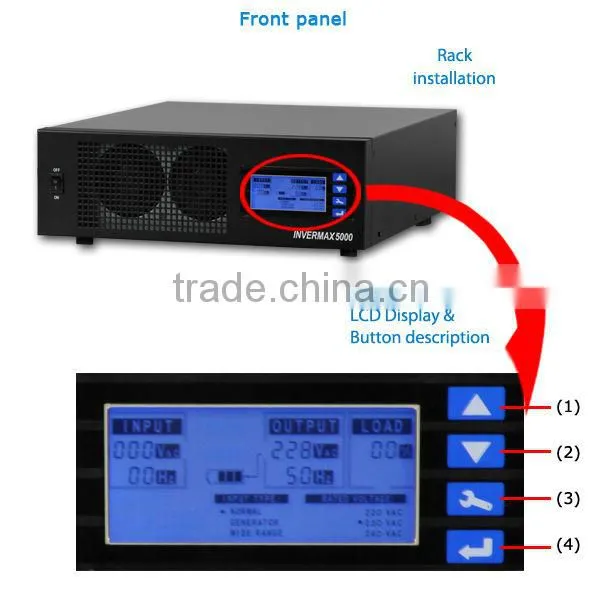

| Switch | Function | Description |
| (1) | UP | Move up to pre-select |
| (2) | DOWN | move down to pre-select |
| (3) | Configuration | Enter configuration mode, annd turn page |
| (4) | enter | Enter to confirm |

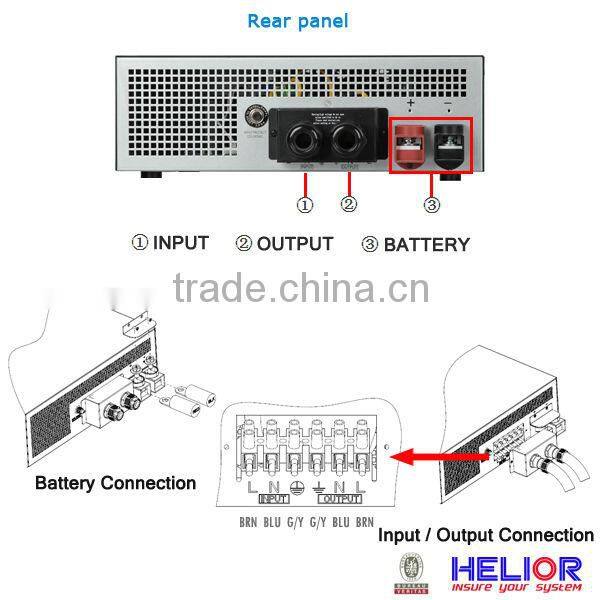

Input & Output Connections
Step 1- Disconnect the unit from the battery either by turning off the battery switch or removing the
battery cables from the battery. Turning off the unit does not constitute disconnecting from the battery.
Step 2- Feed the wires through cable clamp and AC cover. See Figure 4.
Step 3- Following the wiring guide located in the AC wiring compartment as Figure 4, connect the
GND (green/yellow), Line (brown), and neutral (blue) wires from the AC input (utility, generator, etc) to the terminal block.
Step 4- Connect the AC Line output wiring to the terminal marked AC Line (output) following the
wiring guide inside the compartment. Connect the AC neutral out to the AC neutral out terminal. Torque the wires into the terminal block.
Step 5- Use the two M3 screws to lock the AC cover.
Step 6-Tighten the clamps on the AC cable jackets (not the individual wires) to provide strain relief for the connections
Customer Feedback
Our R&D team have tested your UPS, they are satisfied with the performance of the sample. All the test
results are complying with the specification. We are highly appreciated it.
--- N. Raja (from Chennai, India)
We are quite impressive with the IGBT function of this UPS. We are now trying to apply this model on our
telecommunication systems.
--- Robert Alles (from Munich, Germany)
Order information
Trade term: FOB Shenzhen / Hongkong
Delivery time: 7-21 days after confirmed the order
Packaging Detail:Standard export carton or OEM package
Warranty
1 years since the date of purchase
Warranty term
1. Under the terms of this warranty, if failure occurs under normal usage within warranty period, Helior Technology will provide free maintenance based on the proof-documents.
2. If Failure or damage occurs due to incorrect operation, wire connection, or any other mis-opeartions, Helior Technology will provide pay maintenance on charge basis
More detailed info for family UPS & Inverter, please do not hesitate to inquiry now!
