KST-B On Off Type Electric Actuator From China Supplier
US$ 75 - 458.33
/ Set
1 Set(Min. Order)
- NINGBO/SHANGHAI
- T/T Money Gram Credit Card
You May Like
-
KST-B On-off Type Electric Actuator, Motorized Actuator, Rotary Electric Actuator
-
KST-B On-off Electric Actuator For Ball Valve, Butterfly Valve
-
KST-B Rotary Electric Actuator for Ball Valve, Butterfly Valve
-
KST-S Passive Contact Type Electric Actuator, Electrical Actuator, Motorized Actuator
-
KST-S Quarter Turn Electric Actuator From China Manufacturer
-
Regulating Electrical Actuator, Motorized Actuator, On Off Actuator, Modulating Actuator, Rotary Electric Actuator
Product Details
| Material | Alloy | Place of Origin | Zhejiang, China | |
| Model Number | KST-B | Brand Name | KST |
Product Description
Specifications
Torque:7-2000 N. MVoltage: 24V DC, 110V AC, 220V AC, 380V AC
Type: On-off, Modulating, Passive Contact

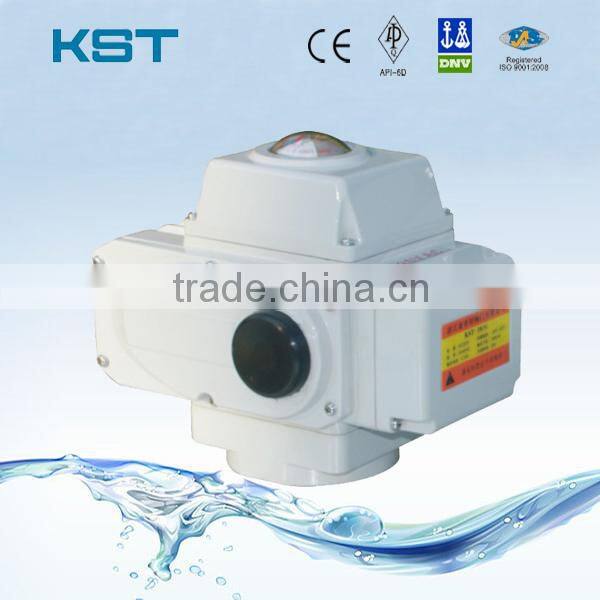

KST-B On Off Type Electric Actuator from China Supplier
Specifications
1). Model: KST-05,10,20,40,60,100,200
2). Torque Range: 7-2000Nm
3). Motion Range: 0-360°, 0-90°
4). Ambient Temp.: -30ºC~+60ºC
5). Working Pressure: 0-4.0Mpa (40Bar)
6). Open/Close Time: 7S-100S
7). Number Of Wires: 2-7 Wires
8). Actuator Body: Aluminium Alloy
9). Protection Class: IP68
10). Voltage: 24V DC, 110V AC, 220V AC, 380V AC
11). Type: On-off, Modulating (Regulating), Passive Contact
12). Available Valve Size: Ball Valve (DN15-DN200); Butterfly Valve (DN25-DN400)
Products Show
