Hydraulic Press Brake
Model: WD67Y 40T/2500
1. Machine Charactristcs
-- The machine is equipped with hydraulic electric control, freely adjustable slider travels and inching, semi-automatic, automatic operating criterion convenient for module trial and adjustment.
-- Up-move type bending design,pair oil cylinders working simultaneously, balanced operation,convenient,and safety.
-- With function of keeping pressure and delay time on lower dead spot, to assure the accuracy of work pieces.
-- Under the national standard conditions, the accuracy of bending angle can up to ±45´.
-- With function of slow decline, operator can control work pieces better.
2. Hydraulic system
-- Hydraulic system may realize quick decline, slow decline, working speed bending, quick return travel and sudden slider stop in the process of up and down etc.
-- Quality pump can stand high pressure, and low noise.
-- Sealing rings from Japanese NOK, with good sealing performance, reliable working, and long life.
-- The machine can work continuously under rated burden, hydraulic system has no divulgence, continue and steady, high accuracy.
3. Standard equipped with NC Controlller (E10)
1. X axis and Y axis position display
2. Resolution 0.1mm or 0.01mm
3. Holding Time set
4. One side position indication
5. Spindle off set

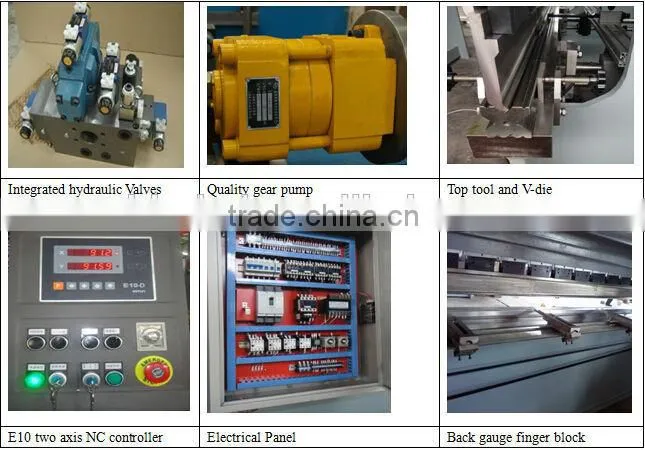

4. Main Equipments:
| Hydraulic system: | Omega |
| Pump: | Gear pump |
| Electrics: | Schneider |
| O-rings: | Japanese NOK |
| Conectors: | Germay EMB |
| Ballscrew(Option): | TAIWAN HIWIN |
| Linear Guide rail(Option): | TAIWAN HIWIN |
| Servo motor(Option): | Huada or YASKAWA |
5. Other standard equipments:
| Settionalized Top Tool: | 1set |
| Multi V-die Full length: | 1piece |
| Stop fingers: | 2 Piece |
| Front supporting arms: | 2 Piece |
| Foundation bolts : | 1set |
| Toolings: | 1set (screw driver and spanner) |
| Manuals and diagram : | 1book |
Price: Give me reply, i will give you my favorable price immediately!
Payment term: 30% deposit and the balance paid against copy of B/L in 3 days.
Package: Standard exporting package.
Operation manual and video disc:
When delivery machine, the related operation instruction of model will delivery together with machine. And in the instruction, there is teaching video disc.
After-sales service:
1.machine is simple, generally, user can understand how to operate. There is operation instruction and disc.
2.welcome to our factory to learn how to operate our machine, we will give good training.
3.our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user.
