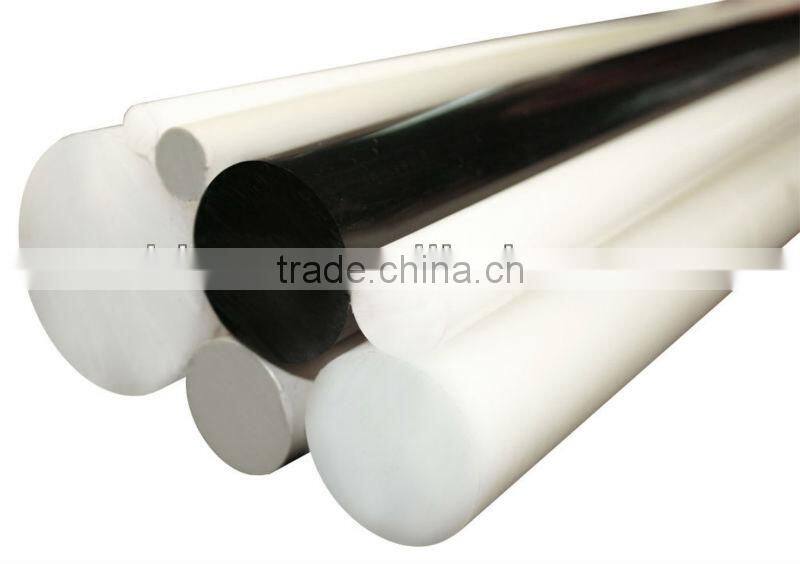

PVDF BAR / PVDF STICK
- NINGBO OR SHANGHAI
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | AIDMER | |
| Model Number | 79-012 |
Product Description
AIDMER PVDF (Polyvinylidene fluoride)
PVDF is a high purity engineering thermoplastic with excellent chemical resistance,abrasion resistance,flame resistance and UV stability.PVDF is widely used for chemical tank liners and semiconductor equipment components.
Homopolymer PVDF has higher strength and stiffness and has a higher heat deflection temperature than copolymer PVDF.Copolymer PVDF is less stiff but has superior impact resistance and stress crack resistance.
KEY CHARACTERISTICS:
l Excellent chemical resistance
l High purity
l Easy to weld using thermoplastic welding equipment
l Good UV stabillity
l Flame resistant
l Abrasion resistant
l FDA compliant grades available.
APPLICATIONS:
l Chemical tank liners
l Pump and valve parts
l Semiconductor equipment components
PROPERTIES | UNITS | PVDF HOMOPOLYMER |
Density | g/cm3 | 1.77~1.78 |
Tensile strength | Mpa | ≥35 |
Elongation at break | % | ≥250 |
Melting point | °C(°F) | 160(320) |
Heat of fusion | J/g(BTU/lb) | 40(17) |
Crystallizing point | °C(°F) | 124(255) |
Crystallizing heat | J/g(BTU/lb) | 44(19) |
Water absorption (immersion 24 hours) | % | 0.02 |
Coefficient of linear thermal expansion | in/in/°Fx10-5 | 7.1 |
Hardness | Shore D | 70~80 |
PVDF Standard Sizes
Item | thickness (mm) | Width (mm) | Length (mm) | ||

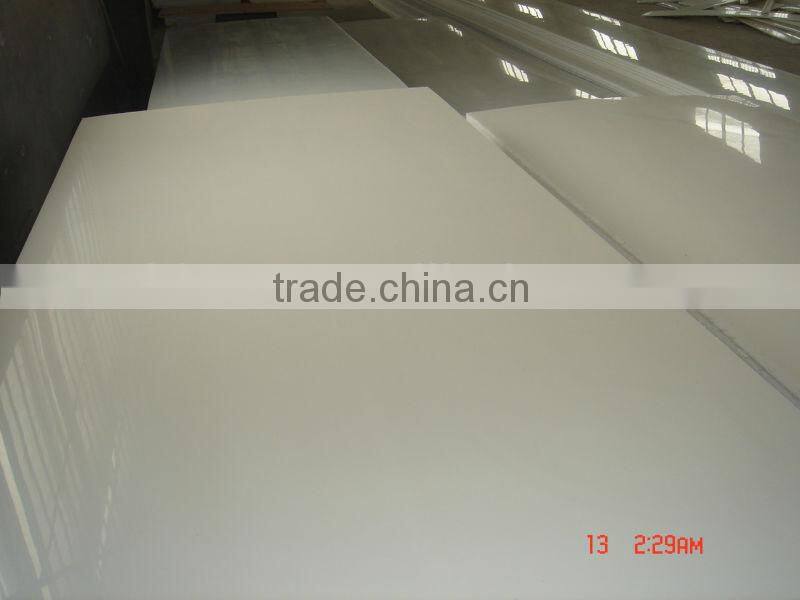

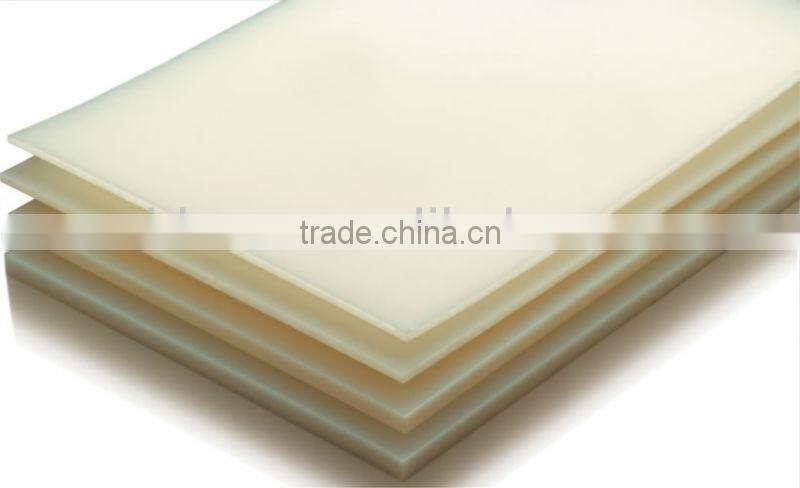

Sheet | 6-60 | 1000 x 2000 1220 x 2440 1500 x 3000 | |||
0.05-10 | 1000~1500 | ≥10000 | |||
Item | diameter (mm) | Length (mm) | |||
Bar | 3-250 | 300~2000 | |||
1.Other sizes, colors can be customized. 2.Length, width, diameter and thickness tolerances may vary by manufacturer 3.Certain grades available
Virgin PVDF SHEET / Polyvinylidene fluoride Sheet / PVDF ROD
...
