AIDMER PTFE ROD

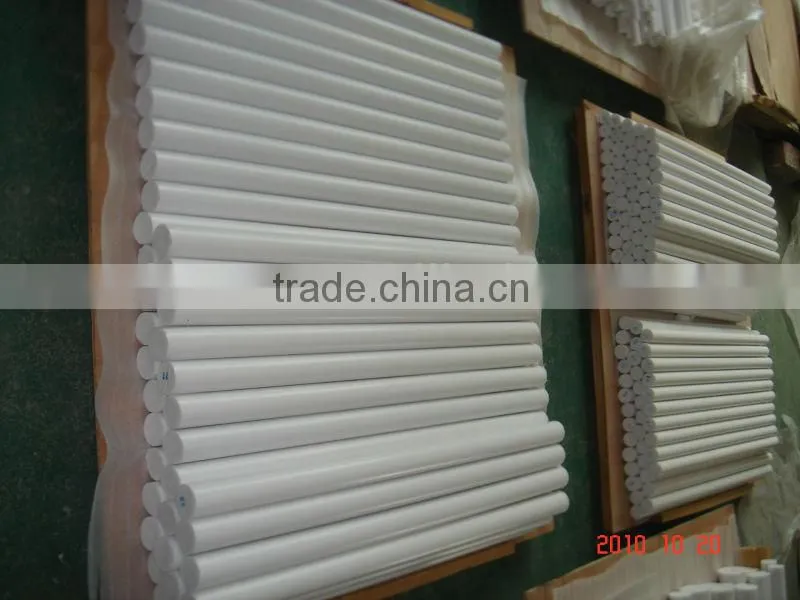

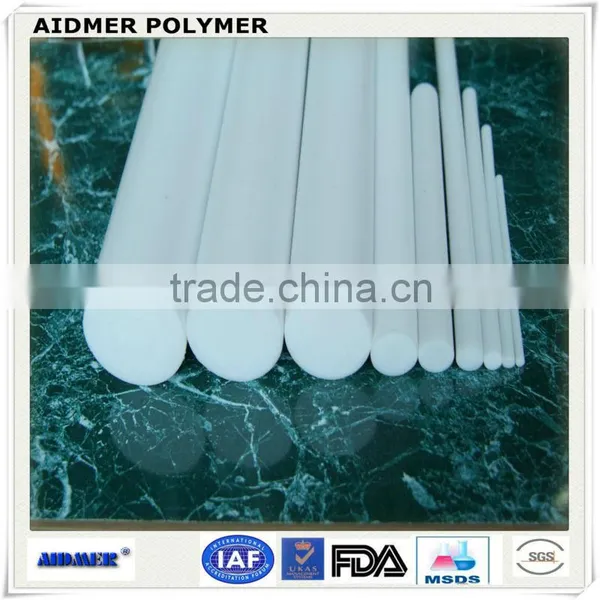

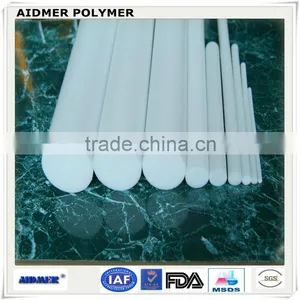

Aidmer 78-011 PTFE ROD
Aidmer 78-012 MOLDED PTFE ROD
Aidmer 78-051 (GL, G, B)FILLED PTFE ROD
PTFE Rodis available in both virgin grades and reprocessed (mechanical) for less demanding applications. Surf Technologies extrudes rod in all standard sizes from 1/8th inch diameter up to 8 inches in diameter. The molded ptfe rod can get to 16 inches.
Note:All rods can be etched for bonding, and can be mounted on a plywood disk for less waste in machining. Also can be made with filled (reinforced) PTFE to enhance the performance parameters of PTFE. Materials available for reinforcement are Glass Fiber, Graphite, Bronze we can do.
Applications
PTFE rod is generally used as machining stock for all kinds of chemical, electrical and mechanical components where the outstanding performance characteristics of PTFE are required. Various fillers are available to modify the properties of PTFE to meet application requirements.
Technical Data :
Properties |
unit |
Result |
Apparent density |
g/cm3 |
2.2±0.1 |
Tensile strength (min) |
Mpa |
≥25 |
Ultimate elongation (min) |
% |
≥200 |
Working Temp |
°C |
-180 ~ 260 |
Melting point |
°C |
327 |
Produce Max. Temp |
°C |
385 |
Hardness Rockwell |
|
M65 |
Specification:
Aidmer 78-011
Dia (mm) |
L |
3~200mm |
100~2000mm |
Aidmer 78-012
Dia (mm) |
L |
10~400mm |
100~300mm |
...
