Help CenterUSA Wila Type Mechanical Crowing Cnc Press Brake Machine With 2D Graphical CNC Control Italy EAS530
Related Products
-
Export to Kyrgyz 4+1 Axis Full CNC DNC880S Control Press BrakeUS$ 1,000 - 100,000MOQ: 1 Unit -
4+3 Axis Electro Hydraulic Servo CNC Press Bake Model PPBH 100/4000US$ 1,000 - 100,000MOQ: 1 Unit
-
I'NTL Brand Swiztland Cybelec DNC 880S Bending Machine, 4+3 Axis Cnc Press Brake Quality ChoiceUS$ 1,000 - 100,000MOQ: 1 Unit
-
Machine to Bend and Cut Metal SheetsUS$ 1,000 - 100,000MOQ: 1 Unit
-
High Quality Press Brake With Full CNC ControlUS$ 1,000 - 100,000MOQ: 1 Unit
Specifications
CE certificateCNC bending machine price,
Italy Atos Hydraulics,
ESA S530 servo motor and drive
Japan Nachi Pump
Model: PPBH 160T/3200 -ESA S530
3+1 AXIS(X,Y1,Y2+V axis Table Crowning)
Bending Force: 1000Kn
Bending Length: 3200mm on mild steel plate
1. Descriptions of CNC Synchro Press Brake:

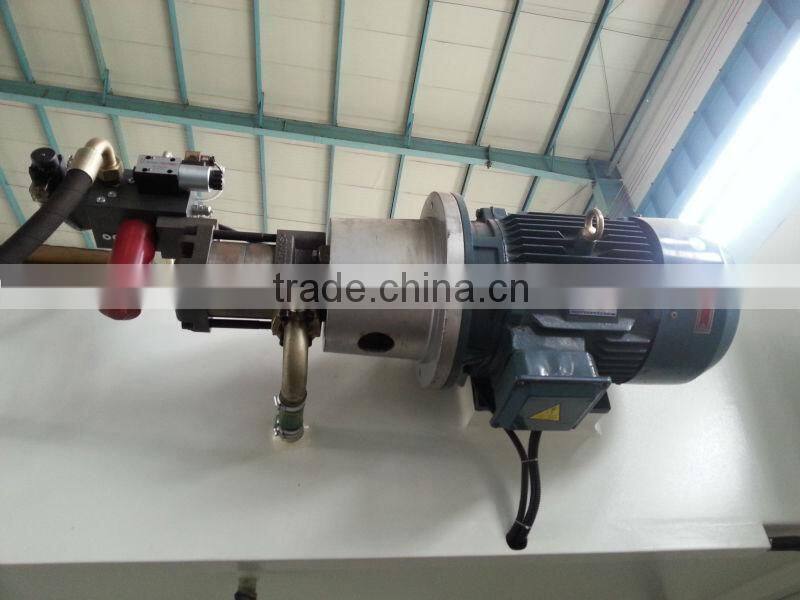

Hydraulic system:
-A complete electrolyte servo synchro CNC (Computer Numerical Control) controlled press brake.
-Adopt Atos hydraulic system from Italy.
Mechanical system:
- Two light rulers are installed at the two ends of the slide, making the slide movement be parallel to the working table
- Adopt the working table compensation structure.

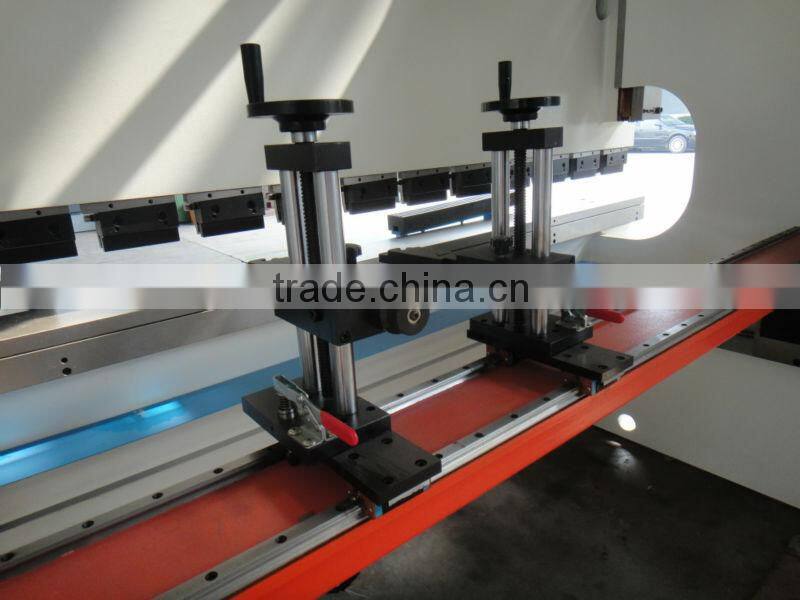

- The CNC servo motor of the back gauge gives a high positioning accuracy.

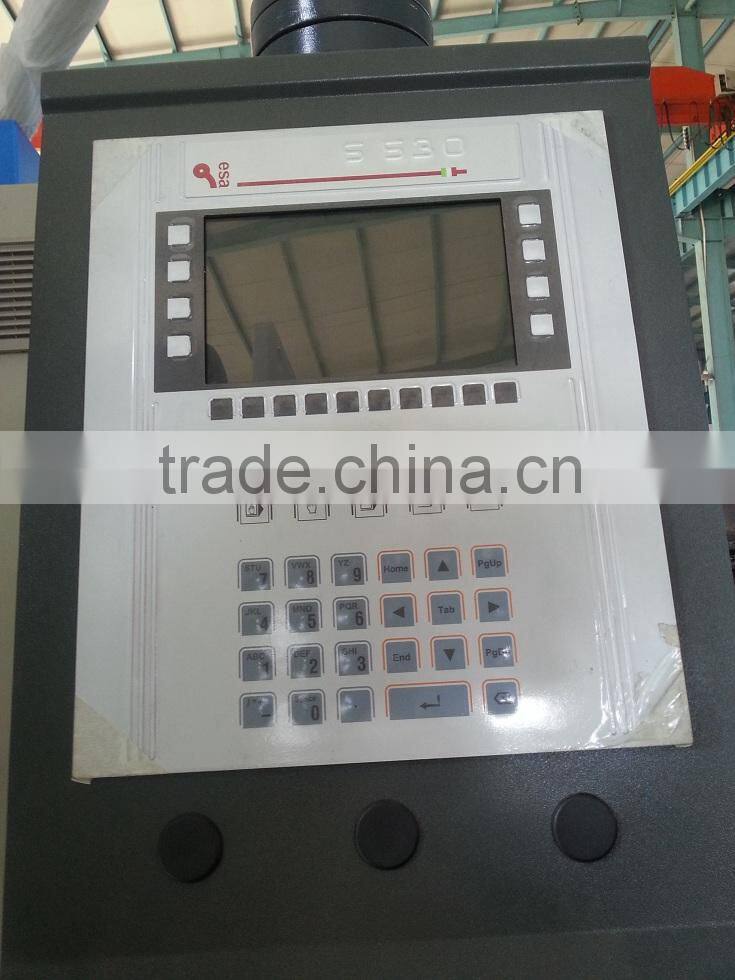

CNC system Italy ESA S530:
-Programming of the axes positions in tabular mode with automatic syntactical checks,
automatic calculation of the bending and bending tonnage.
- All programs, tools description, parameters can be stored on the internal memory or on USB memory stick
These files can be exchanged with other CNC and PC troughUSB memory stick.
- Complete graphic off-line programming on a standard PC, through a simulation program.
- Customizable alarm messages.
Synchro control system:

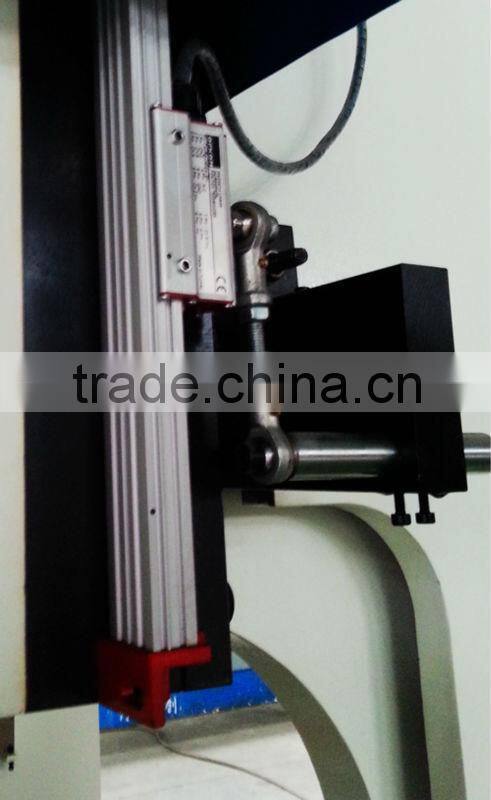

-Two light rulers (Y1-Y2) have been installed at the two sides of the machine to measure the exact distances.
-The position data will be delivered to the CNC system and then it can check out the servo valve control signal (S2-S2).
Transmission system:
- High-precision ball screw and linear guide-way
- AC servo motor and drive;
Compensation System:
-WILA deflection compensation;
-Automatic worktable compensation for wear and tear of the bed
The deviation resistance ability of the machine tool:
-The electrolyte servo system of this forging machine is an inner closing ring control system, which can check out the synchro discrepancies of the slide by the movement of the light ruler.
-The electrolyte servo valve can correct the slide discrepancies, making the slide parallel to the working table.
2. Key Components Made by:
No. |
Item |
Origin |
1 |
CNC Controller |
ESA KV S530, Italy |
2 |
Servo Motor and Drive |
Huada |
3 |
Hydraulics |
HOERBIGER Or BOSCH, Germany |
4 |
Ball Screw |
HIWIN, Taiwan |
5 |
Linear Way |
HIWIN, Taiwan |
6 |
Hydraulic Fittings |
EMB Fitting Type |
7 |
Hydraulic Seals |
Japan NOK |
8 |
Linear Scale |
GIVI, Italy |
9 |
Electric Components |
European/Japan |
We have established long term coorperation with the following company or their representives

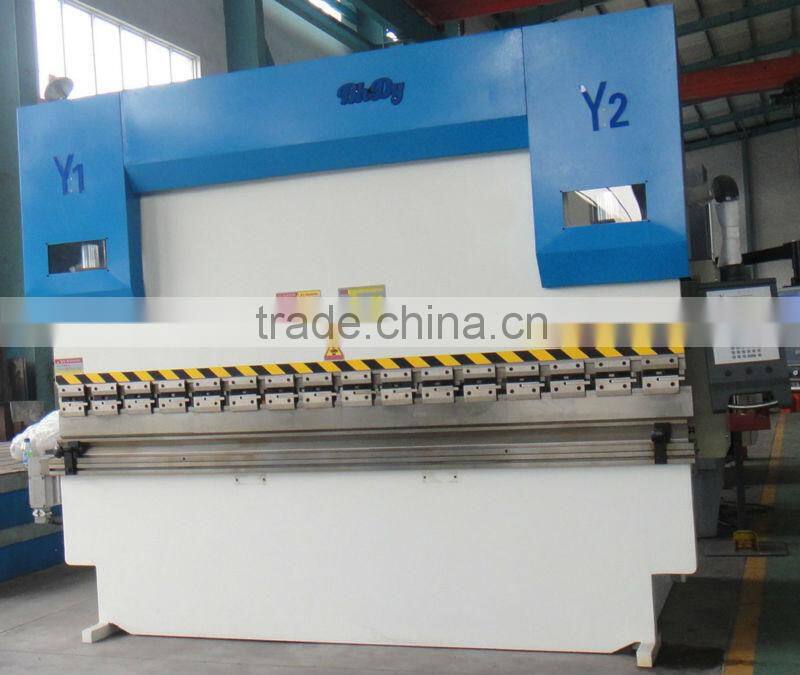

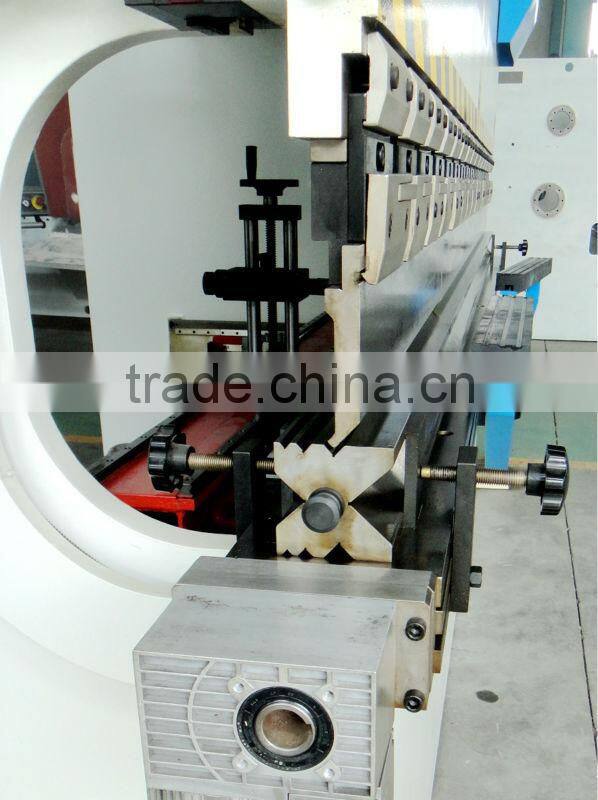

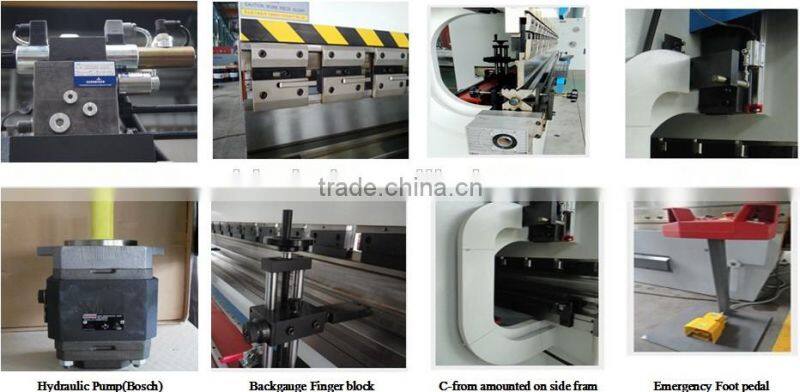

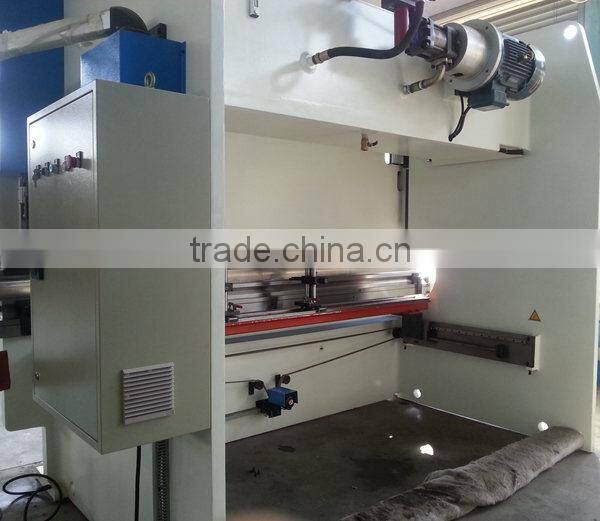

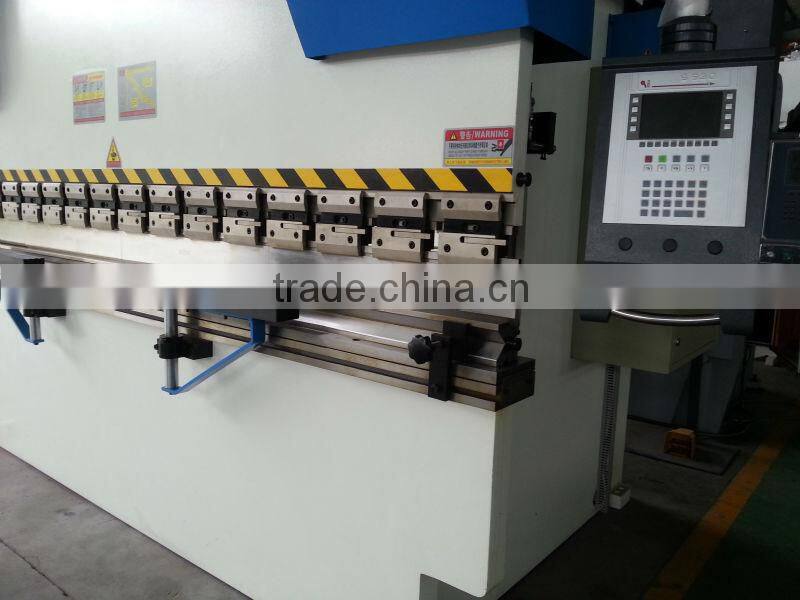

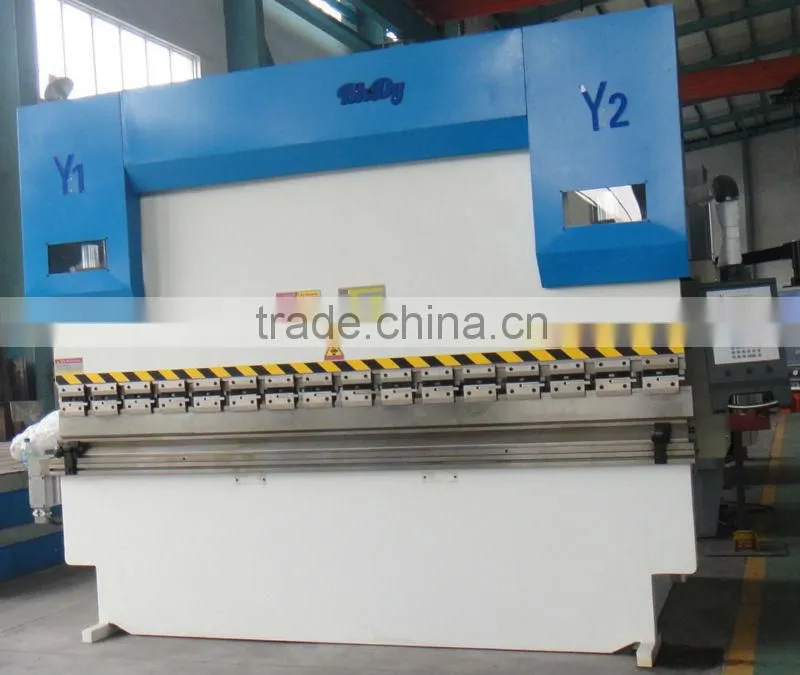

3. Detailed Photo of Machine

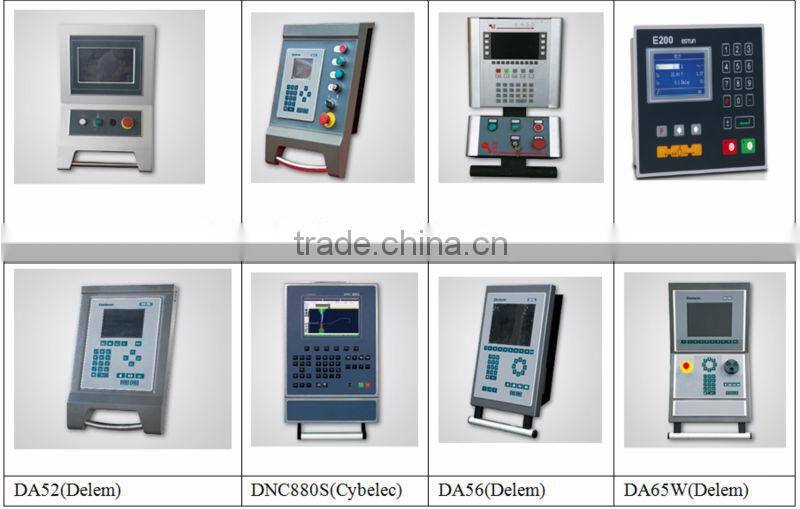

4. CNC Controller for Option
Note: Machine standard covered by one plastic film cover. can be also packed by crate or wooden box or metal box according to customer's special needs.
FAQ
1. Q: You are Manufacturer or trading company?
RE: We are 100% manufacturer with 25 year's manufacturing experience
2. Q: Can you do OEM service?
RE: Yes, we can. The color can be customized. Your own logo can be used on the machine.
3. Q: Do you accept LC payment?
RE: Yes. Normally, our payment is 30% +70% TT. LC payment is also acceptable.
4. Q: where is your factory located? How can we visit there?
RE: we have two factory, one is in Shanghai, the other is in Bowang, Maanshan(near Nanjing Air port)
You can fly to either Shanghai Air port or Nanjing Air port. We will send our driver to pick you up.
It will only take 40 minutes by car to either of the two factories
Established in 1989, Bohai has vast experience in building and supplying quality products. With over 60,000 machines delivered worldwide, Bohai has earned a reputation as a supplier of innovative “value oriented” solutions. As the parent company of Shanghai Wanjiao Machine Tools Co.,Ltd and Maanshan Huayu Machine Tools Co., ltd,BOHAI owns one of the the most contemporary production plants in the industry in China. Three different ISO certified factories producing different product families employ 300 employees.
In order to offer customer solutions and further develop patents, the BOHAI Research and Development center opened in 2000. Now, there are fifteen enginer serve for the R & D center.
Designed and engineered with modern technology, Bohai products are equipped with high quality and proven readily available components.
Your partner today, tomorrow, and forever.
