Specifications
CE certificateJapan NOK seal
bending machine
ESA S530 servo motor and drive
Japan Nachi Pump,Mechanical compensation

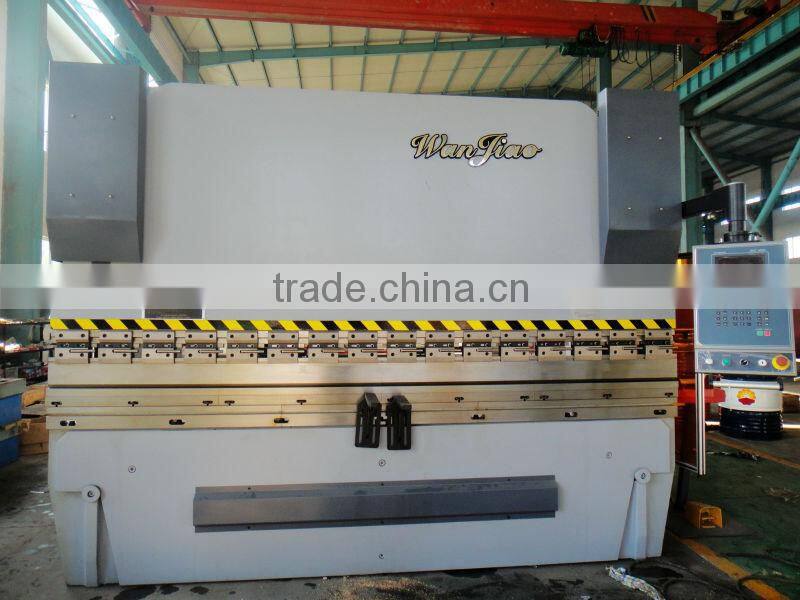

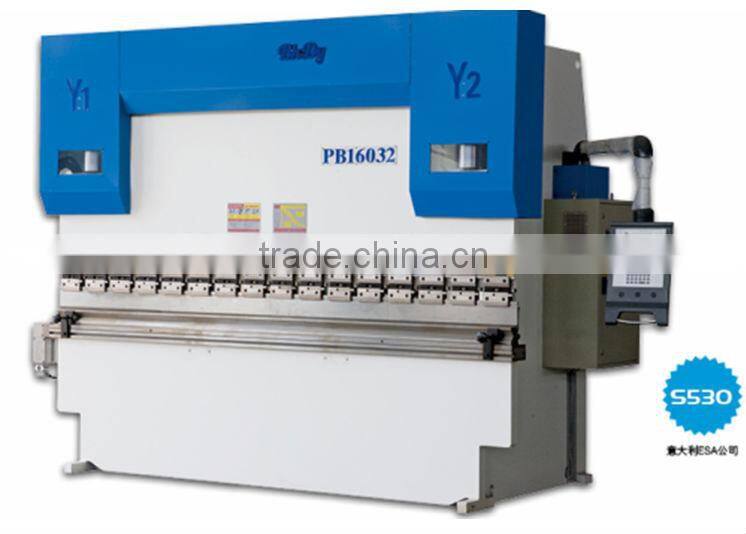

PPBH 160T/3200 hydraulic plate bending machine
1. Descriptions of CNC Synchro Press Brake:
Hydraulic system:
-A complete electrolyte servo synchro CNC (Computer Numerical Control) controlled press brake.
-Adopt Italy Atos electro hydraulic servo system
Mechanical system:
- Two light rulers are installed at the two ends of the slide, making the slide movement be parallel to the working table
- Adopt the working table compensation structure.
- The CNC servo motor of the back gauge gives a high positioning accuracy.
CNC system Italy ESA S530:
-Programming of the axes positions in tabular mode with automatic syntactical checks, automatic calculation of the bending and bending tonnage.
- All programs, tools description, parameters can be stored on the internal memory or on USB memory stick.
These files can be exchanged with other CNC and PC troughUSB memory stick.
- Complete graphic off-line programming on a standard PC, through a simulation program.
- Customizable alarm messages.
Synchro control system:
-Two light rulers (Y1-Y2) have been installed at the two sides of the machine to measure the exact distances.
-The position data will be delivered to the CNC system and then it can check out the servo valve control signal (S2-S2).
Transmission system:
- High-precision ball screw and linear guide-way
- Japan YASKAWA AC servo motor and drive;
Compensation System:
-WILA deflection compensation;
-Automatic worktable compensation for wear and tear of the bed
The deviation resistance ability of the machine tool:
-The electrolyte servo system of this forging machine is an inner closing ring control system, which can check out the synchro discrepancies of the slide by the movement of the light ruler.
-The electrolyte servo valve can correct the slide discrepancies, making the slide parallel to the working table.
2. Key Components Made by:
No. |
Item |
Origin |
1 |
CNC Controller |
ESA KV S530, Italy |
2 |
Servo Motor and Drive |
Huada(China Top Brand), or Yaskawa(Japan) |
3 |
Hydraulics |
Atos Italy |
4 |
Ball Screw |
HIWIN, Taiwan |
5 |
Linear Way |
HIWIN, Taiwan |
6 |
Hydraulic Fittings |
EMB Fitting Type |
7 |
Hydraulic Seals |
Japan NOK |
8 |
Linear Scale |
GIVI, Italy |
9 |
Electric Components |
European/Japan |
We have established long term cooperation with the following company or their representatives

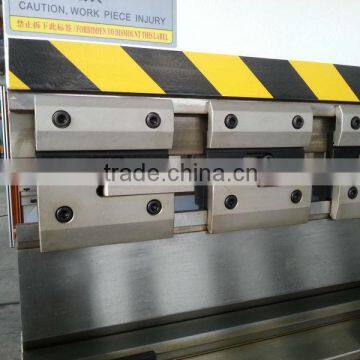

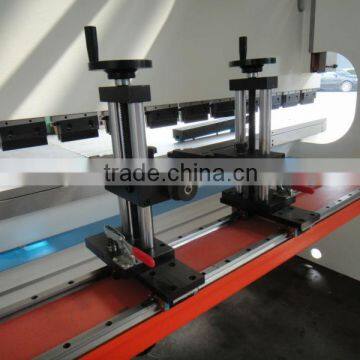

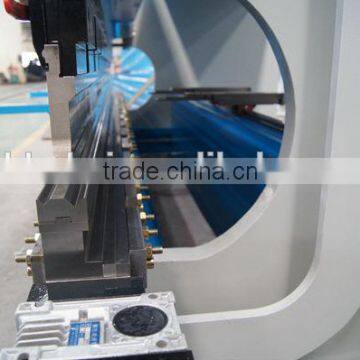

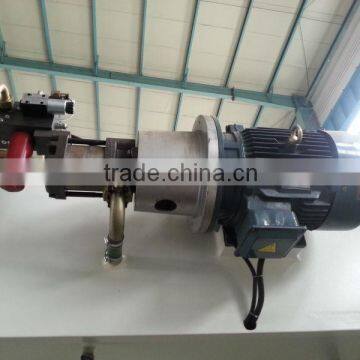

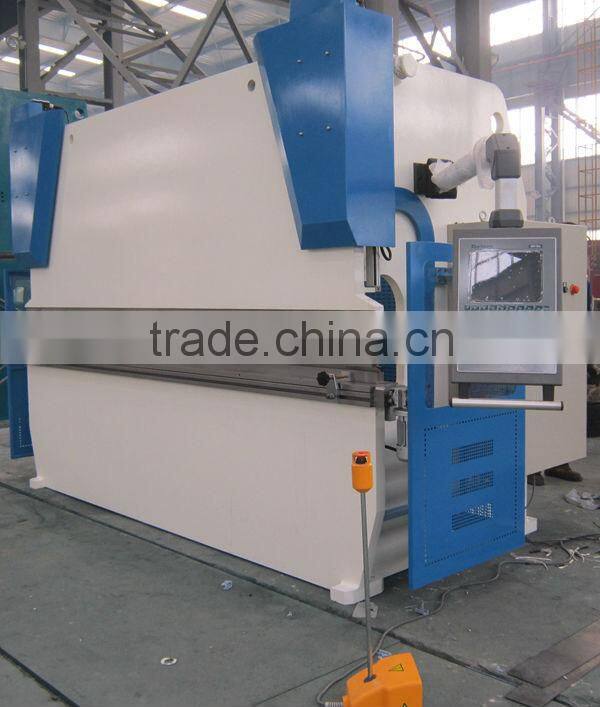

3. Detailed Photo of Machine

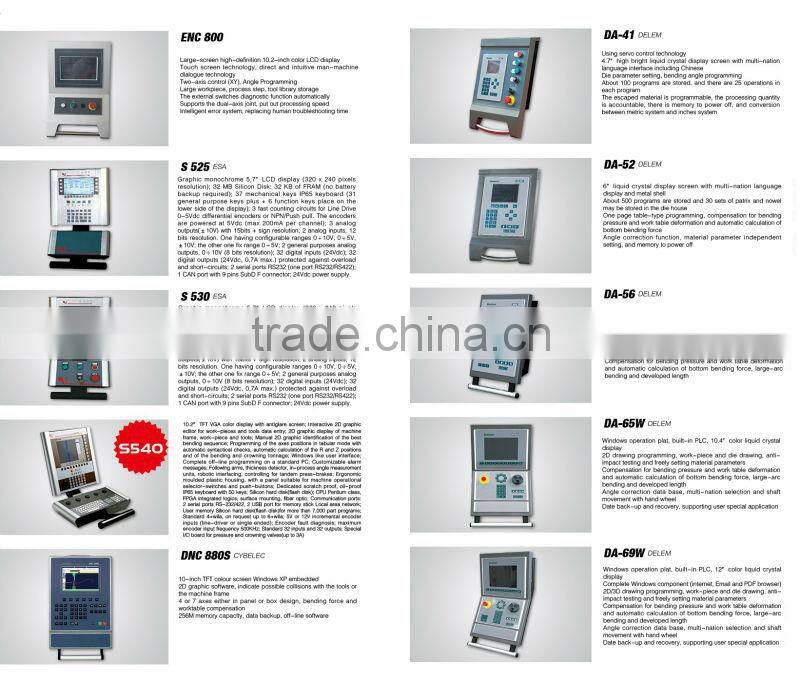

4. Other Controller for Option
Note: Machine standard covered by one plastic film cover. can be also packed by crate or wooden box or metal box according to customer's special needs.
