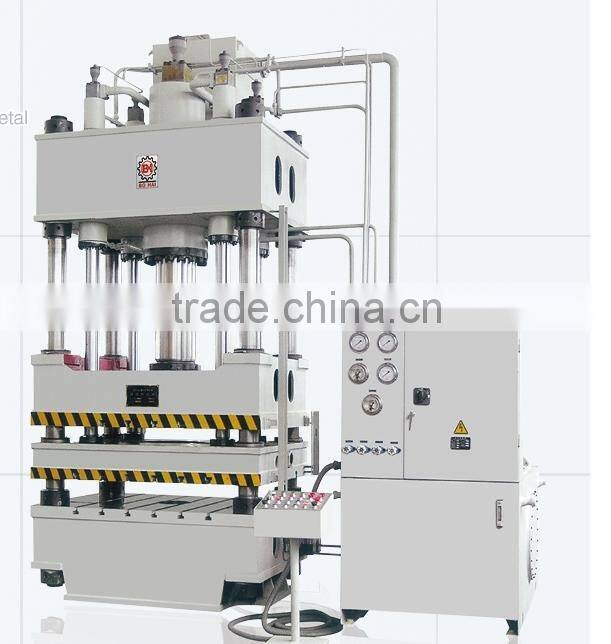

Y28 series Automatic oil press machine
Y28 Deep drawing hydraulic press Features:
-The hydraulic press of this series is the double-movment hydraulic press for sheet metal drawing.

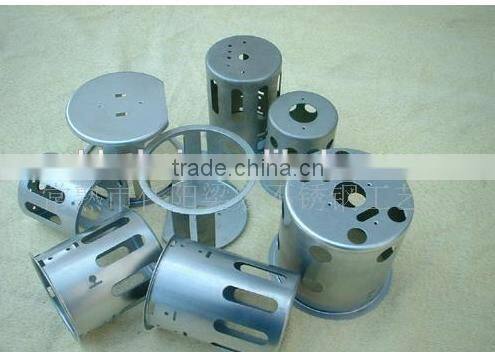

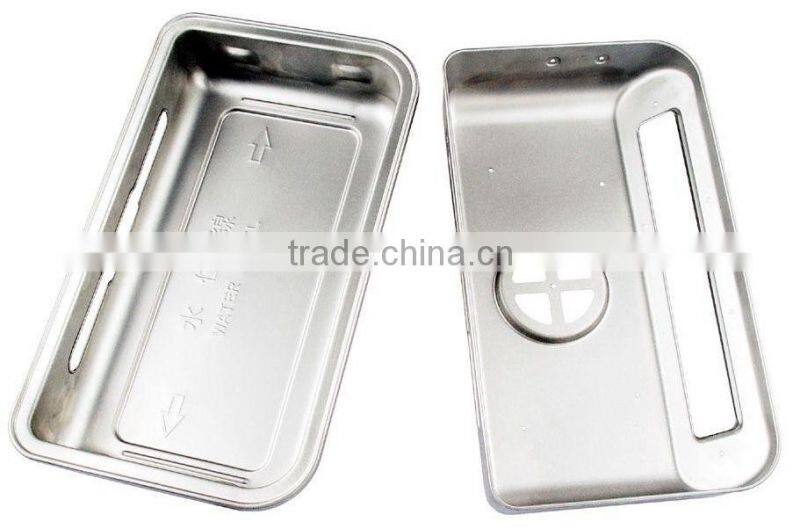

It is Paticularly for drawing,forming,flanging,bending and stamping of sheet metals for making pars and components. It is also fit for stamping process and pressing process.
-The hydraulic system has a two way cartridge inserted valve;
the electrical system has PLC for control. Thus, The machine can be conviniently operated.
-The hydraulic press is charactrized with high speed under no-load condition,high efficiency in energy utilization and low poer consumption with the blank holder presssure and drawing force adjustable.
it is an ideal euippment for the forming of metal
Item |
Unit |
Y28-63/100 |
Y28 -100 /150 |
Y28 -150/200 |
Y28 -200/300 |
Y28 -220/315 |
Y28 -315/400 |
Y28 -400/600 |
|
Nominal Force |
KN |
1000 |
1500 |
2000 |
3000 |
3150 |
4000 |
6000 |
|
Drawing Force |
KN |
630 |
1000 |
150 |
2000 |
2200 |
3150 |
4000 |
|
Knock out Force |
KN |
190 |
190 |
400 |
400 |
400 |
800 |
630 |
|
Blank holder force |
KN |
300 |
500 |
630 |
800 |
1000 |
1000 |
2300 |
|
Max .pressure of liquid |
MPa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Stroke of drawing slide |
mm |
600 |
600 |
700 |
800 |
800 |
800 |
800 |
|
Stroke of Bland-holder slide |
mm |
250 |
250 |
250 |
400 |
350 |
400 |
720 |
|
Stroke of knock out cylider |
Mm |
200 |
250 |
250 |
350 |
350 |
|
400 |
|
Daylight of drawing slide |
Mm |
1000 |
1200 |
1300 |
1400 |
1560 |
1500 |
2190 |
|
Daylight of blank holder slide |
Mm |
600 |
750 |
900 |
720 |
820 |
1000 |
1300 |
|
Table area |
Mm2 |
720*580 |
800*800 |
1000*900 |
980*900 |
1120*120 |
1260*1200 |
1250*1250 |
|
Speed |
Rapid down |
Mm/s |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
Deceleat down |
Mm/s |
20 |
20 |
20 |
20 |
20 |
20 |
16 |
|
Pressing |
Mm/s |
1020 |
1020 |
1020 |
1020 |
1020 |
10 |
1016 |
|
Retrun |
Mm/s |
100 |
100 |
100 |
135 |
100 |
100 |
100 |
|
Knock-out |
Mm/s |
95 |
95 |
90 |
90 |
90 |
90 |
100 |
|
Return |
Mm/s |
220 |
220 |
180 |
180 |
200 |
200 |
200 |
|
Overall Dimensions |
L-R |
Mm |
2500 |
2300 |
3800 |
3800 |
3800 |
4500 |
4300 |
F-B |
Mm |
1500 |
900 |
1800 |
1800 |
1800 |
2800 |
2315 |
|
Height above Floor |
mm |
3200 |
3600 |
4400 |
4600 |
4400 |
4600 |
5240 |
|
Total power |
KW |
11 |
15 |
22 |
37 |
37 |
37 |
37 |
|
Total weight |
Kg |
6000 |
8000 |
10000 |
13000 |
15000 |
17000 |
47000 |
|
