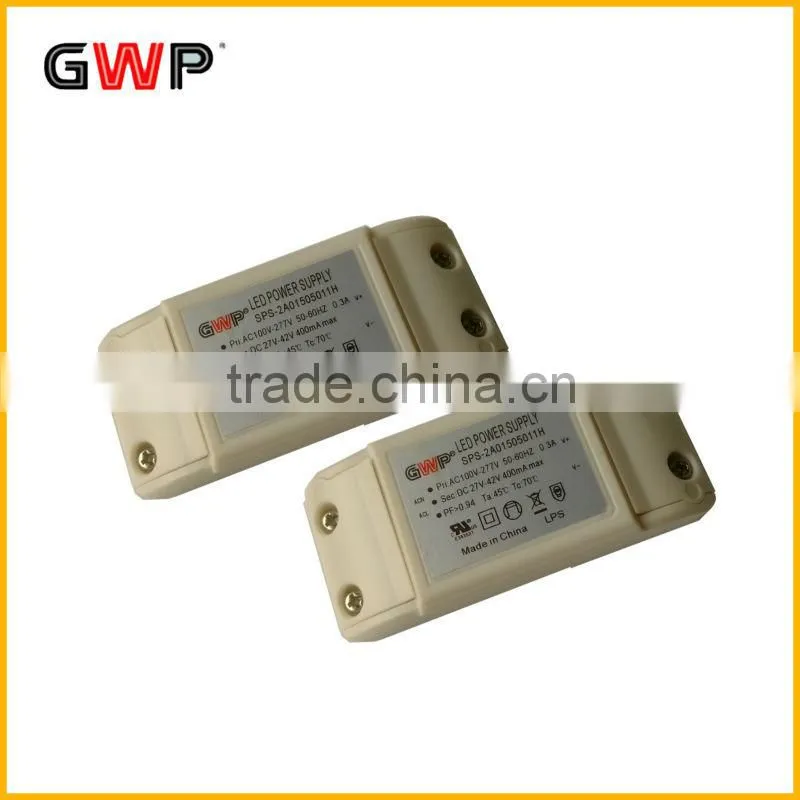

LED Constant Current 24w

LED Constant Current 24w thumbnail-1
LED Constant Current 24w photo-1
US$ 3 - 4 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GWP
Model Number:
SPS-2A01505011H
Contact Supplier Request Quote Chat Now
GWP Lighting Technology (Dongguan) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GWP
Model Number SPS-2A01505011H

Specifications

LED constant current 24w
1. UL&cUL number E343521
2. Two years warranty
3. Input voltage: 100-277V
400mA MAX

LED constant current 15w
1. UL&cUL number E343521
2. Two years warranty
3. Input voltage: 100-277V
400mA MAX

.E343521 UL Class 2

100% full load burn-in test

General Specification
Item SPS-2A01505011H SPS-2A01505012H SPS-2A02405011L SPS-2A04005011L SPS-
2A04005011LD		 SPS-
2A06005011H
AC input
Voltage range:		 100-277VAC
Input current: 0.25A 0.25A 0.33A 0.56A 0.56A 0.9A
Efficiency: >80%
Current
adjustment range:		 75%-103% rated output current adjustable by internal
potential meter
Power factor   >0.95
Output Voltage:   27-38VDC 15-27VDC 20-40VDC   20-40VDC 20-40VDC 24-38VDC
Output Current:   120-400mA 0-560mA 400-650mA 650-1000mA 1A Max
0-10V Dimmable		 1100-1600mA
Out Power:   5-15W 15W 24W 40W 40W 60W
Operating
temperature:		 -25°C~+40°C
Working temperature   -30°C~+60°C
Safety standards   ul/cul :ul8750,ul1310 CAN/CSA C22.2 NO.223 EN61347-1,EN61347-2-13
EMC Standards   EN 55015:2006+A1:2007+A2:2009 EN61547:2009
EN61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008 EN61347-1:2008 EN61347-2-13:2006
Connection input UL rated, 18AGWx2c 20cm
output UL rated, 18AGWx2c 20cm male-female connector
Dimension(LxWxH)(mm)
Packing Carton



Warning

1.Please read the user manual carefully before use.



2.Please make sure the driving voltage ranging and rated current of LED light,and do not exceed the manufacturer’s specification when in use.



3.The red output cord is positive pole,the clack output cord is cathode.



4.Please connect the LED light phase before turning on the appliance to ensure LED light is safely.



   LED constant current 24w

LED constant current 24wLED constant current 24wLED constant current 24w
