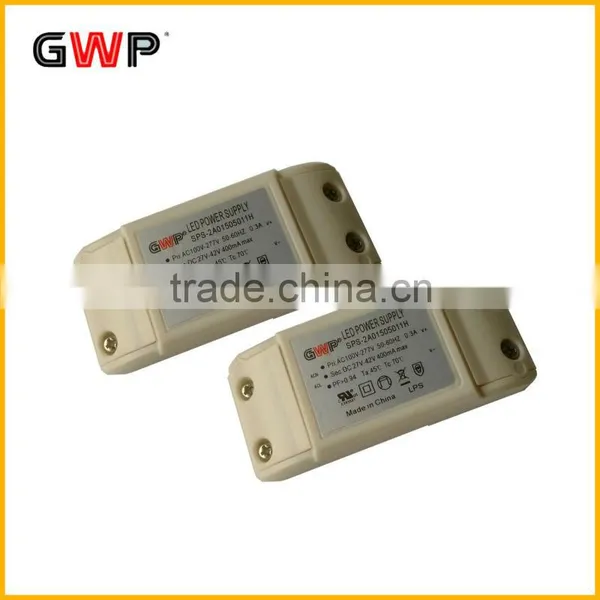

LED constant current driver 15w

Specifications

LED constant current driver 15w
1. UL&cUL number E343521
2. Three years warranty
3. Input voltage: 100-277V
200-1200mA

LED constant current driver 15w
1. UL&cUL number E343521
2. Three years warranty
3. Input voltage: 100-277VAC
120-1200mA MAX

.E343521 UL/CUL Class 2





General Specification

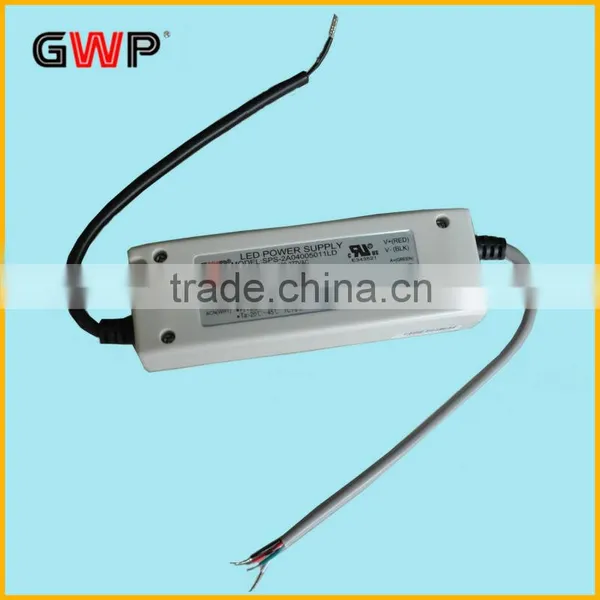

Item		SPS-2A01505011H	SPS-2A01505012H		SPS-2A02405011L		SPS-2A04005011L	SPS- 2A04005011LD	SPS- 2A06005011H
AC input Voltage range:		100-277VAC
Input current:		0.25A	0.25A		0.33A		0.56A	0.56A	0.9A
Efficiency:		>80%
Current adjustment range:		75%-103% rated output current adjustable by internal potential meter
Power factor		>0.95
Output Voltage:		27-38VDC	15-27VDC		20-40VDC		20-40VDC	20-40VDC	24-38VDC
Output Current:		120-400mA	0-560mA		400-650mA		650-1000mA	1A Max 0-10V Dimmable	1100-1600mA
Out Power:		5-15W	15W		24W		40W	40W	60W
Operating temperature:		-25°C~+40°C
Working temperature		-30°C~+60°C
Safety standards		ul/cul :ul8750,ul1310 CAN/CSA C22.2 NO.223 EN61347-1,EN61347-2-13
EMC Standards		EN 55015:2006+A1:2007+A2:2009 EN61547:2009 EN61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008 EN61347-1:2008 EN61347-2-13:2006
Connection	input	UL rated, 18AGWx2c 20cm
	output	UL rated, 18AGWx2c 20cm male-female connector
Dimension(LxWxH)(mm)		88*39*22.5MM			127*43*22mm		142*45*30mm 100pcs/Carton
Packing		Carton

 ==========================================================================================================

General Specification

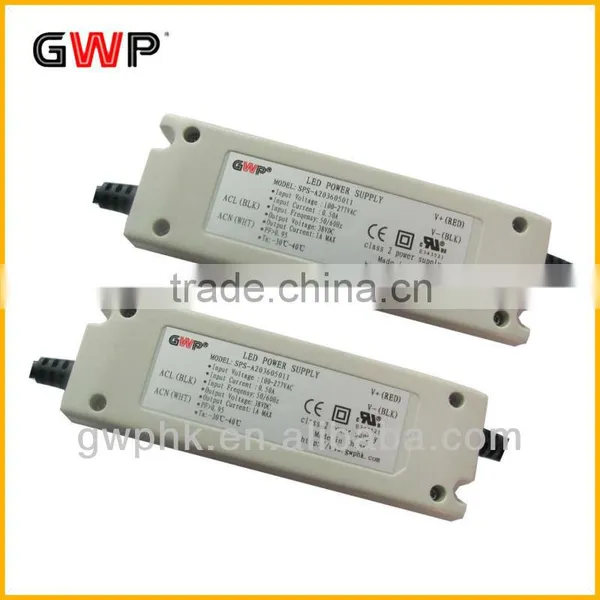

Model No.		SPS- A200905011	SPS- A201505011		SPS- A201805011		SPS- A202405011	SPS- A203605011
AC input Voltage range:		100-277VAC
Input current:		0.15A	0.20A		0.3A		0.35A	0.5A
Efficiency:		>80%
Current adjustment range:		75%-103% rated output current adjustable by internal potential meter
Power factor		>0.95
Output Voltage:		27-38VDC
Output Current:		220mA	360mA		440mA		560mA	1A Max
Out Power:		9W	15W		18W		24W	36W
Operating temperature:		-25°C~+40°C
Working temperature		-30°C~+60°C
Safety standards		ul/cul :ul8750,ul1310 CAN/CSA C22.2 NO.223 EN61347-1,EN61347-2-13
EMC Standards		EN 55015:2006+A1:2007+A2:2009 EN61547:2009 EN61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008 EN61347-1:2008 EN61347-2-13:2006
Connection	input	UL rated, 18AGWx2c 20cm
	output	UL rated, 18AGWx2c 20cm male-female connector
Dimension(LxWxH)(mm)		127*43*22mm						142*45*30mm
Packing		33x33x34cm 100pcs/ctn						33x33x42cm 100pcs/ctn



.







----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
