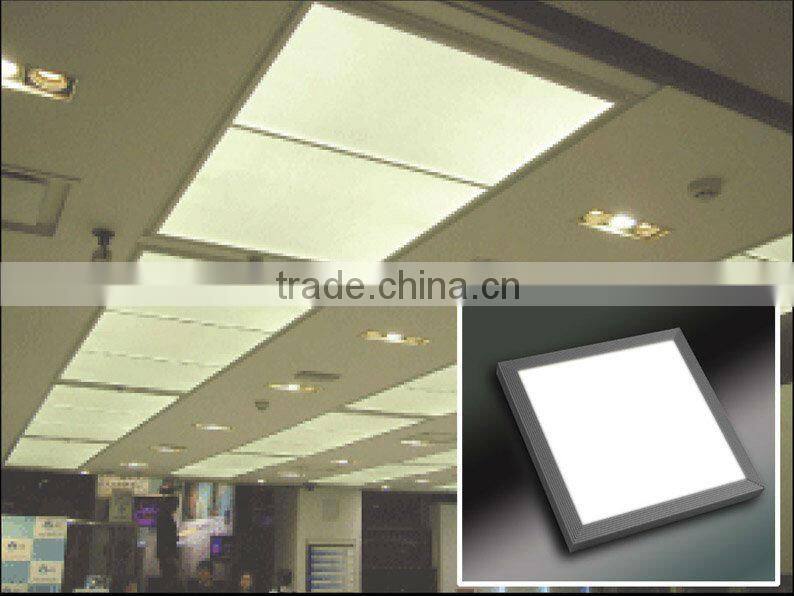

60x60 cm Led Panel Lighting New Type

GWP Lighting Technology (Dongguan) Co., Ltd.

US$ 72.5 - 80 MOQ: 10 Pieces

Key Specifications

LED Light Source:

Led

Warranty(Years):

Input Voltage(V):

100-277V

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source Led

Warranty(Years) 2

Input Voltage(V) 100-277V

Lamp Power(W) 36

Lamp Luminous Flux(lm) 2160±80LM

Color Temperature(CCT) Other, warm white/neutral white/cool white

Working Temperature(℃) -37, 55

Working Lifetime(Hour) 50000

Lamp Body Material Other, aluminum+ glass

IP Rating Other, 70

Certification CCC, CE, FCC

Place of Origin Guangdong, China

Brand Name GWP

Specifications

60x60 cm led panel lighting new type
1.Power:36W
2.packing Dimension :W9B 610*610*120mm
3. 50, 000hrs , no noise

60x60 cm led panel lighting new type

Feature

External LED driver, easier for maintenance.

Emits virtually no UV/IR light in the beam.

70% lumen maintenance after 30,000 hours. 3 years warranty.

Using constand current driving circuit with power factor correction.

Uning micro-chip shunt circuit driving technique to maximum efficiency.

Anti-shake, convenient for transportation

Solid state lighting. Energy saving lighting product.

Low radiated heat.

Contains no mercury.

Specification


Item		Parameter range
Power		36W
LED Quantity		528PCS
Color		warm white/neutral white/cool white
CCT		2700-3500K/4000-4500K/5500-6500K
CRI		≥70
Lifespan		≥50000 Hours
Flux		2160±80LM
Beam Angle		120°
Material		aluminum+ glass
Net Weight		MAX 4.982KG/pcs
Gross Weight		MAX 5.3KG/package
Package Dimension		W9B 610610120mm
Package Spec.		4PCS/ CTN
Technical Request
Item	units		Parameter range
Working Environment	°C		-37⁰C - 55⁰C
Working Humidity			≤95%
Storage Condition	°C		-40°C~80°C
Limited Voltage	V		AC 100-277V,50/60Hz
Input current	A		0.12-0.36
Protection Level	IP20 CLASS1
