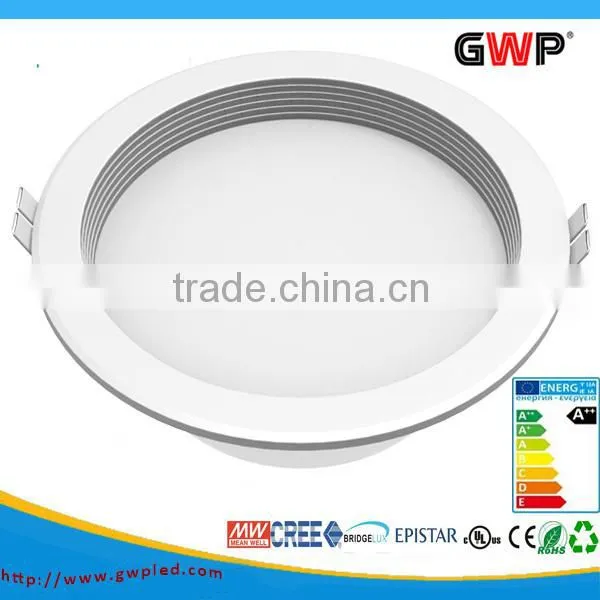

1-10V Dimmable 36Watt LED Downlight

1-10V Dimmable 36Watt LED Downlight thumbnail-1
1-10V Dimmable 36Watt LED Downlight thumbnail-2
1-10V Dimmable 36Watt LED Downlight photo-1

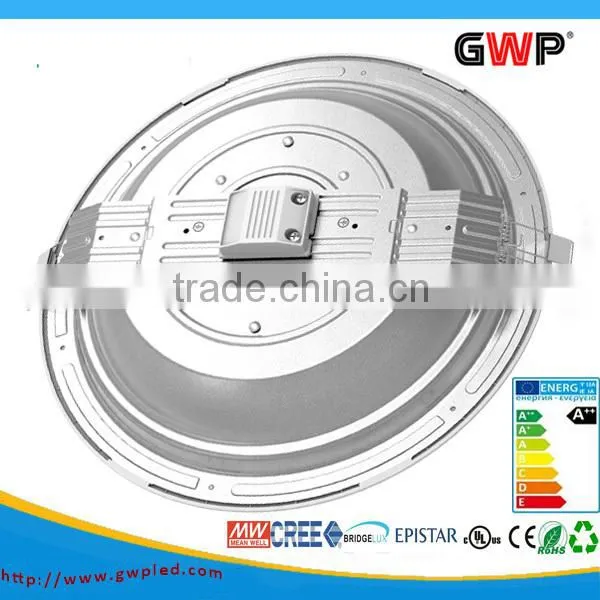

1-10V Dimmable 36Watt LED Downlight photo-2
US$ 5 - 25 MOQ: 10 Pieces
Key Specifications
Get Latest Price
LED Light Source:
2835
Warranty(Years):
3
Input Voltage(V):
100-277
Contact Supplier Request Quote Chat Now
GWP Lighting Technology (Dongguan) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 2835
Warranty(Years) 3
Input Voltage(V) 100-277
Lamp Power(W) 36
Lamp Luminous Flux(lm) 3000
Lamp Luminous Efficiency(lm/w) 85
Color Temperature(CCT) Cool White
Working Temperature(℃) -25, 55
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP54
Certification BV, C-tick, CCC, CE, CQC, EMC, ETL, FCC, GS, LVD, PSE, REACH, SAA, UL, VDE
Model Number GD-36-03
Place of Origin Guangdong, China
Brand Name GWP LED Downlight

1-10V dimmable 36Watt LED downlight

Product Description

 1.Super bright SMD2835 LED as lighting sources;high efficiency energy Saving Eco friendly;

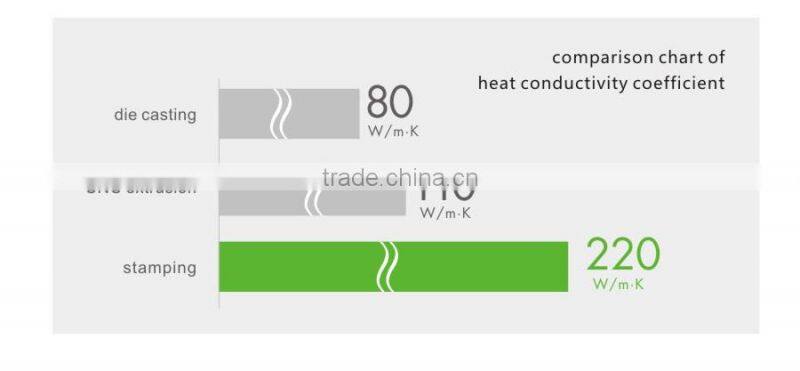

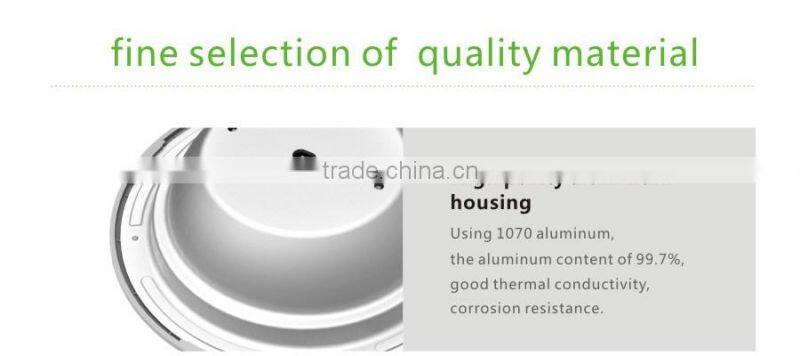

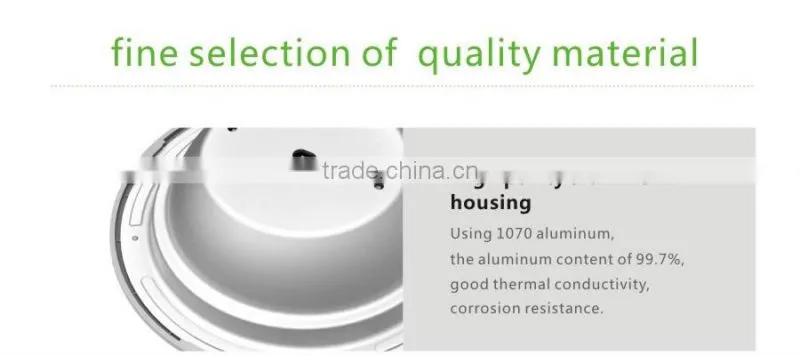

2.Aluminium alloy frame with high thermal conductivity simple and nice;
3.Integrated heat dispersion structure low lumens depreciation and long lifespan;
4.External constant current driver universal available;
5.Easy to install.



Model Size Power Input Voltage Maximum Size Opening Size LED CCT CRI Luminous Flux Life Span Power Factor Installation Way
GD-525-03 2.5 inch 5W 100-277Vac Ø102mm Ø80mm 25pcs 2835 2700-6500K Ra>80 425lm 50,000h >0.95 Recessed
GD-903-03
 3 inch 9W 100-277Vac
 Ø112mm
 Ø90mm
 45pcs 2835 2700-6500K
 Ra>80
 765lm 50,000h
 >0.95
 Recessed
GD-1204-03
 4 inch 12W 100-277Vac
 Ø146mm
 Ø120mm
 60pcs 2835 2700-6500K
 Ra>80
 1020lm 50,000h
 >0.95
 Recessed
GD-1806-03 6 inch 18W 100-277Vac Ø190mm Ø165mm 90pcs 2835 2700-6500K Ra>80 1530lm 50,000h >0.95 Recessed
GD-2408-03
 8 inch 24W 100-277Vac
 Ø235mm
 Ø210mm
 120pcs 2835 2700-6500K
 Ra>80
 2040lm 50,000h
 >0.95
 Recessed
GD-3608-03 8 inch 36W 100-277Vac Ø235mm Ø210mm 180pcs 2835 2700-6500K Ra>80 3060lm 50,000h >0.95 Recessed

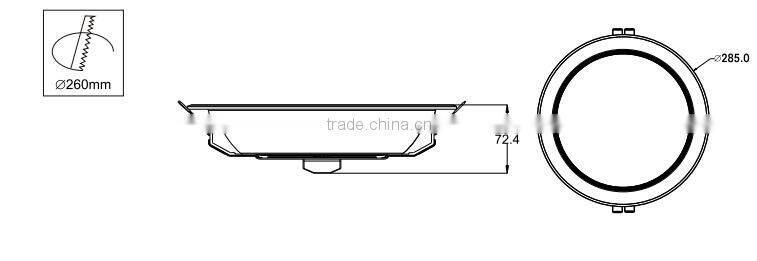

GRP-3610-03 10 inch 36W 100-277Vac Ø285mm Ø260mm 180pcs 2835 2700-6500K Ra>80 3060lm 50,000h >0.95 Recessed

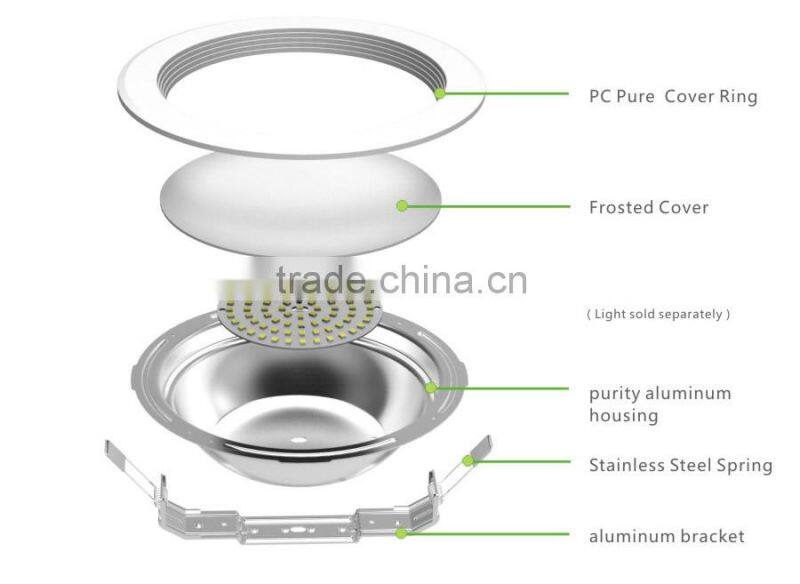

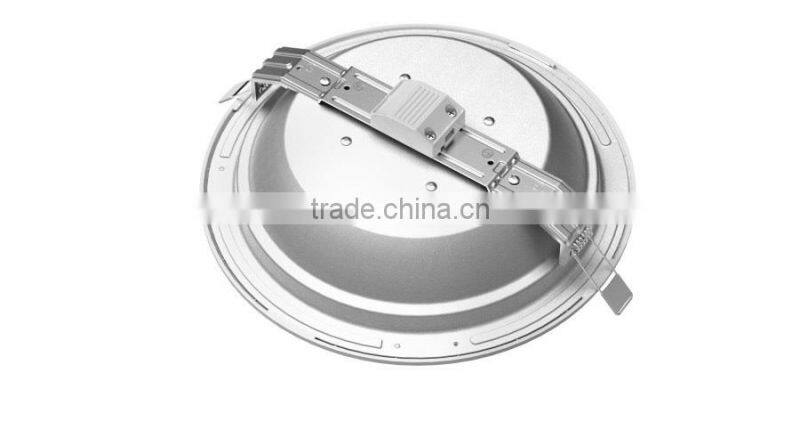

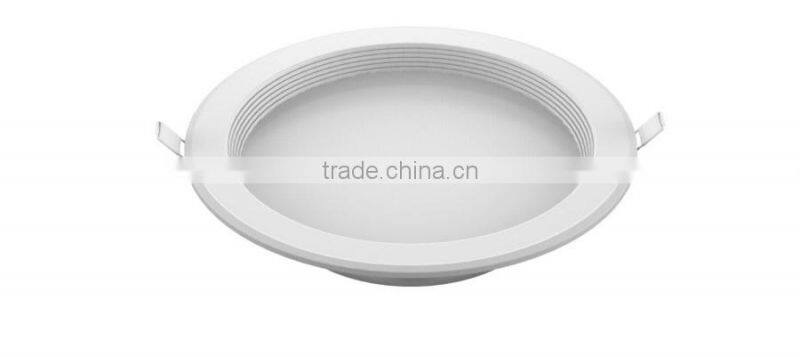

Product Show

1-10V dimmable 36Watt LED downlight1-10V dimmable 36Watt LED downlight1-10V dimmable 36Watt LED downlight1-10V dimmable 36Watt LED downlight1-10V dimmable 36Watt LED downlight1-10V dimmable 36Watt LED downlight

1-10V dimmable 36Watt LED downlight

 1-10V dimmable 36Watt LED downlight

Application



1. Commercial lighting, environmentally friendly lighting, warehouse , supermarket and home illumination.
2. IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hotel and other public places.
3. Exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour range



Installation Guide

Notes :

1,When installation LED panel light, try to avoid the minefields, strong magnetic field and high-pressure region.
2,Ensuring a solid connection correctly in order to avoid short-circuit damage to components and trigger fires.
3,Installed in a well-ventilated place to ensure appropriate environmental temperature.
4,Using the led panel light, please check the local voltage compliance product requirements.
5,To prohibit the live wiring, check to confirm wiring is correct, check the no short-circuit, and then power!
6,In case of failures, do not maintenance in private.

1-10V dimmable 36Watt LED downlight

Packaging & Shipping

 1-10V dimmable 36Watt LED downlight

Factory Show

1-10V dimmable 36Watt LED downlight

1-10V dimmable 36Watt LED downlight1-10V dimmable 36Watt LED downlight

Certification

 1-10V dimmable 36Watt LED downlight

Payment and Shipping

 1-10V dimmable 36Watt LED downlight



Why choose us?


Hello, my dear customers.Thank you for visiting our website.

This kind of LED round panel/downlight is one of our main products. It sells well with reasonable price and high quality. It was made of Acrylic plate and aluminum hull. We can make 4/5/6/8 inch for you with this kind of type. What's more, we have UL/CE/RoHS certificate of this kind of bulb.

Our company was founded in 2006, we have many years production experience. The company locates in Guangdong province, and has branch company in Hongkong. Welcome you to visit our company at anytime.

Maybe we can start from a sample order, so that you will say that : wow! I finally find the most suitable supplier.

Please feel free to contact us.

Thank you again.

Good luck.
