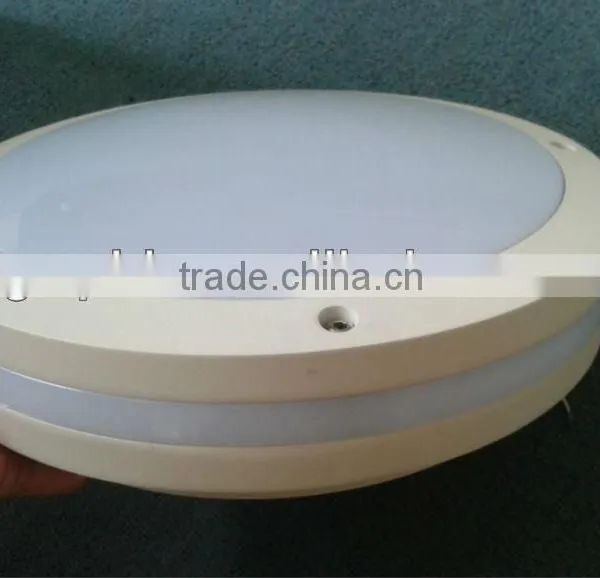

LED ceiling lamp 30w---3 years warranty

Specifications

LED ceiling lamp 30w---3 years warranty
1.Long life span
2.CE and ROHS certification
3. energy saving

LED ceiling lamp 30w---3 years warranty



Product Features

Traditional ceiling light fixture with high quality LED as light source.

 No glare design.

 Emits virtually no UV/IR light in the beam.

 Be designed to replace a traditional ceiling light.

 Using constand current driving circuit with power factor correction.

 Uning micro-chip shunt circuit driving technique to maximum efficiency.

 Solid state lighting. Energy saving lighting product

 50,000 hours rated average life.

 Low radiated heat.

 Contains no mercury.





Specifications



Mechanical Characteristics

Heat Sink Specification	Extrude  Aluminum
Cover Material	Diffused PC
PCB Material	Aluminum  Core PCB
Power Supply	Internal
Number of LEDs	528
LED Type	3528
IP rate	IP65
Diameter	410mm
Height	125mm
Weight	1.2kg



Optical Characteristics

Luminous Flux	2600-2850lm
Light Colo	warm white/neutralwhite /cool white
Color Temperature	3000K/4500K/6000K
CRI	80
Beam Angle	160°



Operation Conditions

Operating Temperature	-37°C-55°C
Storage Temperature	-40°C-80°C



 Electrical Specifications

Power	30W
Input Voltage	100-277VAC
Power Factor	0.95



Part Numbers



GC-030AW1	Warm White
GC-030AN1	neutral white
GC-030AC1	cool white



Applications

LED Ceiling light is well suited for commercial and residential application,

For instance:boats,villa,restaurant,hotel,hall,meeting,room,office,living room,

exhibition room, gallery, museum, reading room, bar, bathroom, school, bedroom, buildings, underground parking garage, supermarket, shopping mall etc.
