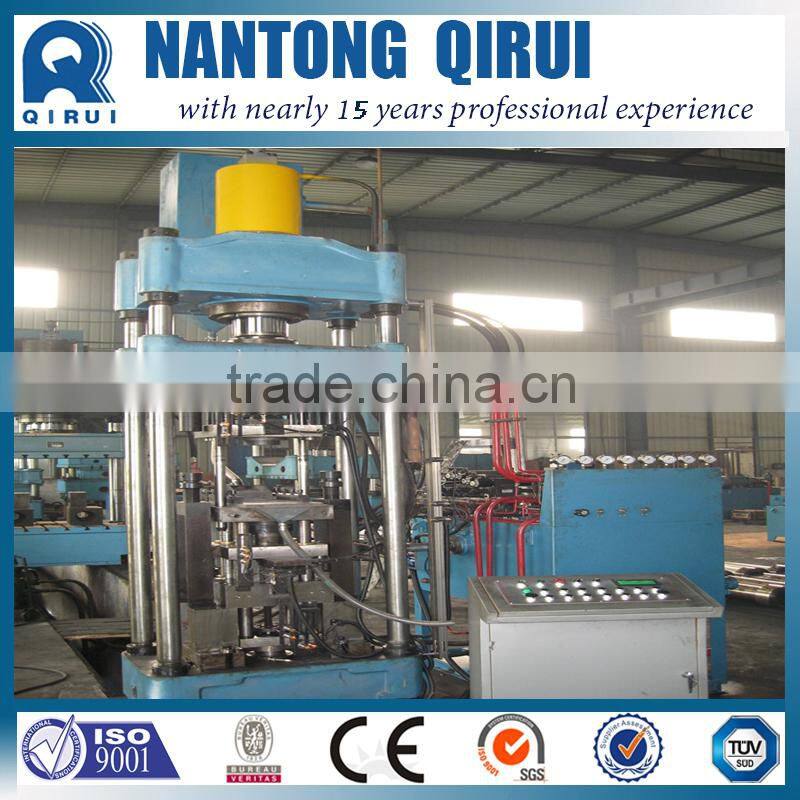

Help CenterHP-79-100T Powder Product Hydraulic Press Machine
Related Products
-
Low Price Hydraulic Machine With Hydraulic Press , Hydraulic Motor China MachineUS$ 2,000 - 20,000MOQ: 1 Set -
Powder Product Hydraulic Press Machines for Sale CE ISO Certifield From Professional ManufactureUS$ 1 - 100,000MOQ: 1 Set
-
Professional Manufacture Powder Product New CNC Hydraulic Press Machines for SaleUS$ 1 - 100,000MOQ: 1 Set
-
Hydraulic Door Skin Press MachineUS$ 2,000 - 20,000MOQ: 1 Set
-
Wood Pallet Block Macking Machine, Hydraulic Briquetting Baler, Wood Shaving CompactorUS$ 2,000 - 20,000MOQ: 1 Set
This series of hydraulic pressure molding machine is suitable for various kinds of dry powder products,it is equipped with floating shelf, it can realize the synchronous bidirectional pressing forming process.
The series hydraulic machine includes four column type (type HP79Z) and frame type (HP79ZK type),with independent hydraulic and electric control system,centralized control buttons, can realize the constant pressure and constant process of two kinds of forming process, has the function of automatic pressure maintaining time delay and andreturn etc..
the machine has automatic powder, three heavy pressure, pull the release" process action program, completely suitable for multi step, special structure, mechanical parts of the powder products. Products with fly height, demoulding position and pressed product height using positioning mechanism, and is equipped with a mechanical transmission device is convenient for the user to adjust, to ensure consistency of product performance and accuracy of repeat positioning.
| HP-79-100T Powder Product Hydraulic Press | ||||||||||||||
|
Nominal force |
1000kn |
Slider stroke parmeter |
Max. pressure |
1000kn |
Push-up piston parmeter |
Max. push-up force |
600/400kn |
Up- center piston parmeter |
Max. drawing force |
60kn |
At piston parmeter |
Max. drawing force |
30kn |
|
|
Max. working hydraulic pressure |
25Mpa |
Max. return force |
315kn |
Max. drawing force |
570/320kn |
Max. return force |
35kn |
Max. return force |
19kn |
|||||
|
Max. distance surface of table |
1200mm |
Max. stroke |
500mm/s |
Max. stroke |
200mm |
Max. stroke |
50mm |
Max. stroke |
60mm |
|||||
|
Effective area of table |
720mm*580mm 800mm*580mm |
Fast down speed | 120mm/s |
Push-up speed | 40mm/s |
Down center piston parmeter |
Max. drawing force |
60kn |
Overall dimension | Left-right |
3000mm 3400mm |
|||
Delive goods machine |
Delive area |
140mm *150mm |
Slow down speed |
5- 15 mm/s |
Return speed | 45mm/s |
Max. return force |
35kn |
Front-back |
1300mm 2000mm |
||||
| Stroke | 250mm |
Return speed | 180mm/s |
Total motor power |
11kw |
Max. stroke |
120mm |
Hight above ground |
4000mm |
|||||
Height down ground |
300mm | |||||||||||||
| Packing | Carton, Pallet or In nude | |
| Detail accordance with the actual dimension. | ||
| Shipping | Time of Delivery | Within 20-90days after make deposit. |
| Shipping Terms | Seaway or Airway. |
|
Why you choose us?
1.Combination of production and trade
2.Strong design team
3. Competitive price
4. Fast delivery time
5. Oversea after-sales service
About the price
1. Do you have a competitive price?
Of course, we have. Have a try, you will know it.
2. How can I get the discount?
The discount is up to your order quantity. Small order will have higher price.
Your rolling order can help you get a bigger discount.
Delivery time, material, length of warranty and the weather need inspections all will influence the price.
About the payment
| NO. | Image | Terms | Details |
| 1 | |
Western Uinon | 40% at Sight and The Balance Payable Before Shippment |
| 2 |
|
T/T | |
| 3 | L/C | Full Persent of The Total Amount | |
| 4 | |
Ali Express |
About the MOQ
1. What is your MOQ?
To our old customers, there is no MOQ. 1PCS, 5PCS, 10PCS… IS OK.
If you are a professional purchaser or specialize in hydraulic press, we can do very small quantity for you. 1pcs or 5pcs.
We hope there will be a bigger one after that. Then there will not be MOQ to you.
About the delivery Time
1. Usually, it is 20-90 days. According to your quantity.
2. Your urgent order is acceptable, But the price will be litter higher than normal.
About our factory local In
1.Where is your company?
Our factory locates in Nantong near Shanghai.
2.How can we get there?
You can only arrive at shanghai and we can go there to pick up you to our company to make a visit.
If you are interested in our products or any questions,
Plz feel free to contact with me.
