Laser Marking Machine is suitable for mobile phone repair shops,gift shops and Small factories. used for Marking / printing / engraving on many type of metal material and some non metallic material,Especially used for printing phone IMEI,The machine is simple, high efficiency, very popular.

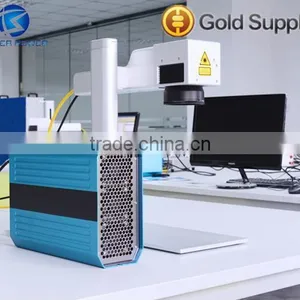

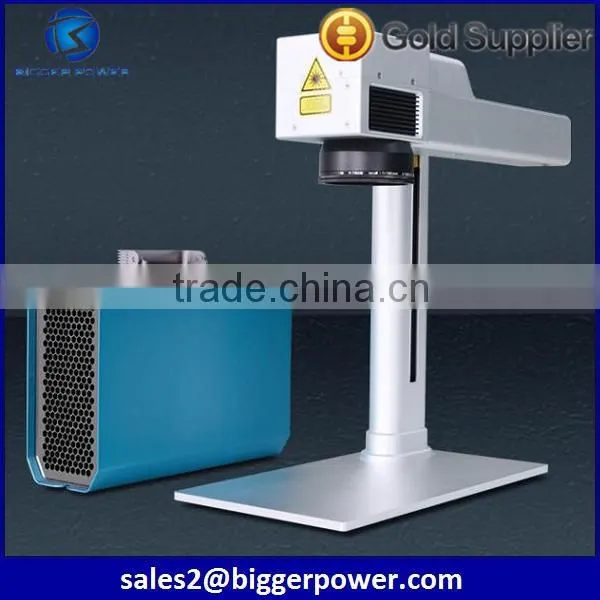

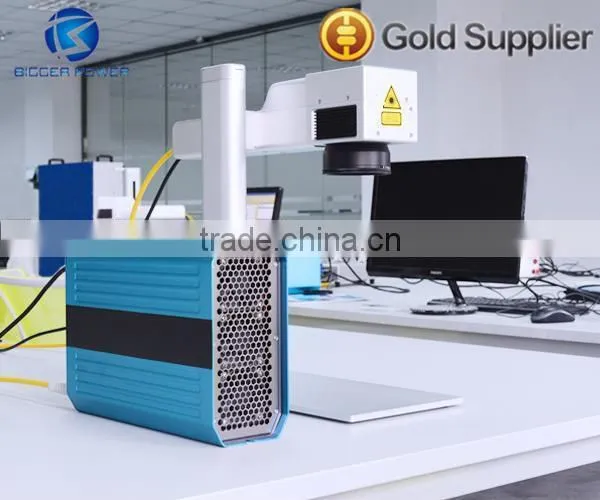

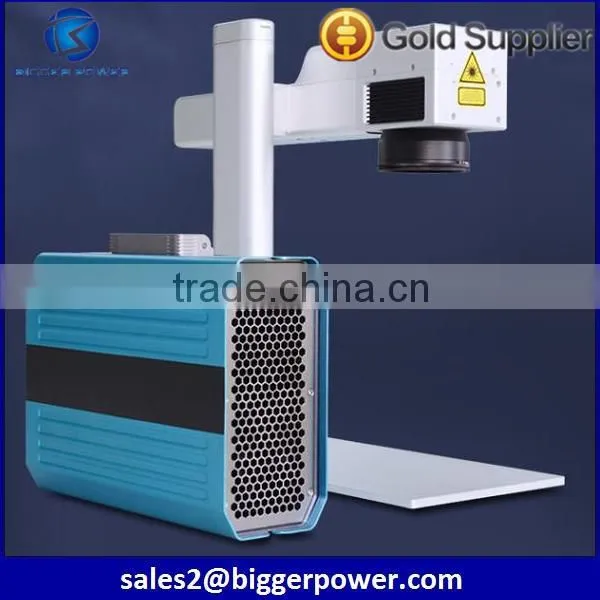

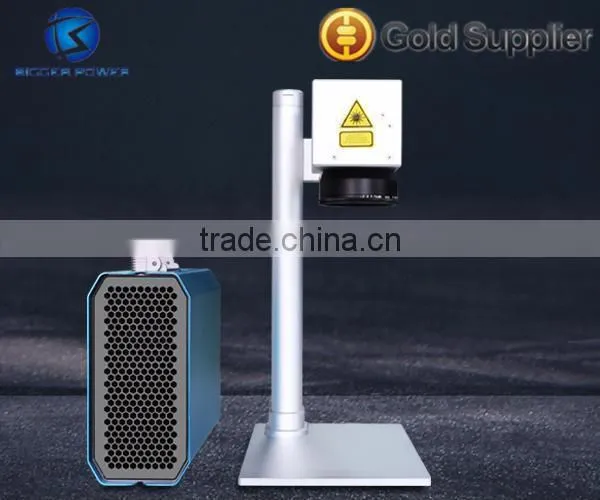

Metals and plastic material fiber laser logo marking machine
| Application | Portable 20W fiber Laser Marking Machine |
| Product size | 11*31*22 CM |
| Weight | 40KG |
| Fiber Laser Power | 10W /20W |
| Minimum Line Width | 0.01mm |
| Minimum Character | 0.15mm |
| Marking Depth | 0.05~0.5 mm |
| Engraving Line Speed | ≤7000mm/s |
| Repeatability Accuracy | ±0.001mm |
| laser wavelength | 1064nm |
| Beam Quality | M2:1.4~1.8 |
| Marking Format | AI, PLT, DXF, BMP, DST |
| Graphic Format Supported | bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt,etc. |
| Cooling Mode | wind cooling |
| Working Voltage | 110V-240V |
| Unit Power | 500W |
| Working Condition | 5%-50%,Free of Condensed Water |
| Laser Module Life | >100000 hours |
Main Features:
1.Long life Working time over100,000 hours long life span. Germany IPG technology, the international latest, most reliable structure, small size, power consumption is small.
2.Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
3.High Precision: Re-position precision is 0.001mm.
4.High Speed: Imported scanning systems makes the scanning speed is up to 7m/s.
5.Easily Operating:Afford the specific marking software based on Windows, You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
6.High Reliability: MTBF>100,000 hours.
7.Energy Saving: The efficiency of optic-electrical converting is up to 30%.
8.Low Running Cost: No wearing part. Free maintaining.
Application Industry
1.Electrical Engineering and Electrical part and component
2. Mobile (cover,battery,keyboard, I Phone case)
3. Jewellery(ring,pedeant,bracelet),eyeglass,clocks and craft
4. Medicine package and medical instrument
5. Car motor car spare part
6. Instrument and meters and cutting tool
7. Plastic case and Building materials,PVC pipe
8. Military product and aviation and aerospace,
9. Hardware fitting and accessory
10. Sanitary appliance
11. Food and beverage
12. Solar PV industry: Silicon wafer
13. Other rubber, epoxy resin, ABS, Printing ink, Coating film
