MOPA fiber laser machinery is suitable for mobile phone repair shops,gift shops and Small factories. used for Marking / printing / engraving on many type of metal material and some non metallic material,Especially used for printing iphone IMEI,The machine is simple, high efficiency, very popular.

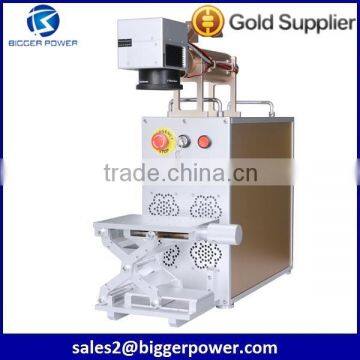

10w/20W MOPA portable mini metal fiber laser marking machine for sale
| The marking parameters: | |
| Laser source: | MOPA |
| Adjustable frequency: | 1KHZ - 1000KHZ |
| Fiber Laser Power: | 20W |
| Laser Wave Length: | 1064nm |
| Max pulse energy: | 0.5 mj |
| Beam diameter: | 7mm |
| Standard Marking Area: | 110mmx110mm |
The galvanometer parameters: | |
| Marking Speed: | 7000mm/s |
| Repositioning precision: | 0.003mm |
| The optical properties: | |
| Marking: | F=210mm,150*150mm |
| Marking Depth: | 0.05-0.5 mm (According to the material) |
| Minimum Line width: | 0.015mm |
| The System property: | |
| Voltage: | AC110V/22V |
| Power: | 500W |
| Bracket height: | 400mm |
| Work environment: | 0-50 ℃ |
| Cooling Mode: | Air Cooling |
| Laser module life: | More than 10000 hours |
| Machine Packaging Size: | 70x25x50CM |
| Weight: | 60KG |
Main Features:
1.Long life Working time over100,000 hours long life span. Germany IPG technology, the international latest, most reliable structure, small size, power consumption is small.
2.Portable: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
3.High Precision: uesd MOPA Laser source,Re-position precision is 0.001mm.
4.High Speed: Imported scanning systems makes the scanning speed is up to 7m/s.
5.Easily Operating:Afford the specific marking software based on Windows, You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
6.High Reliability: MTBF>100,000 hours.
7.Energy Saving: The efficiency of optic-electrical converting is up to 30%.
8.Low Running Cost: No wearing part. Free maintaining.
Application Industry
1.Electrical Engineering and Electrical part and component
2. Mobile (cover,battery,keyboard, I Phone case)
3. Jewellery(ring,pedeant,bracelet),eyeglass,clocks and craft
4. Medicine package and medical instrument
5. Car motor car spare part
6. Instrument and meters and cutting tool
7. Plastic case and Building materials,PVC pipe
8. Military product and aviation and aerospace,
9. Hardware fitting and accessory
10. Sanitary appliance
11. Food and beverage
12. Solar PV industry: Silicon wafer
13. Other rubber, epoxy resin, ABS, Printing ink, Coating film.
