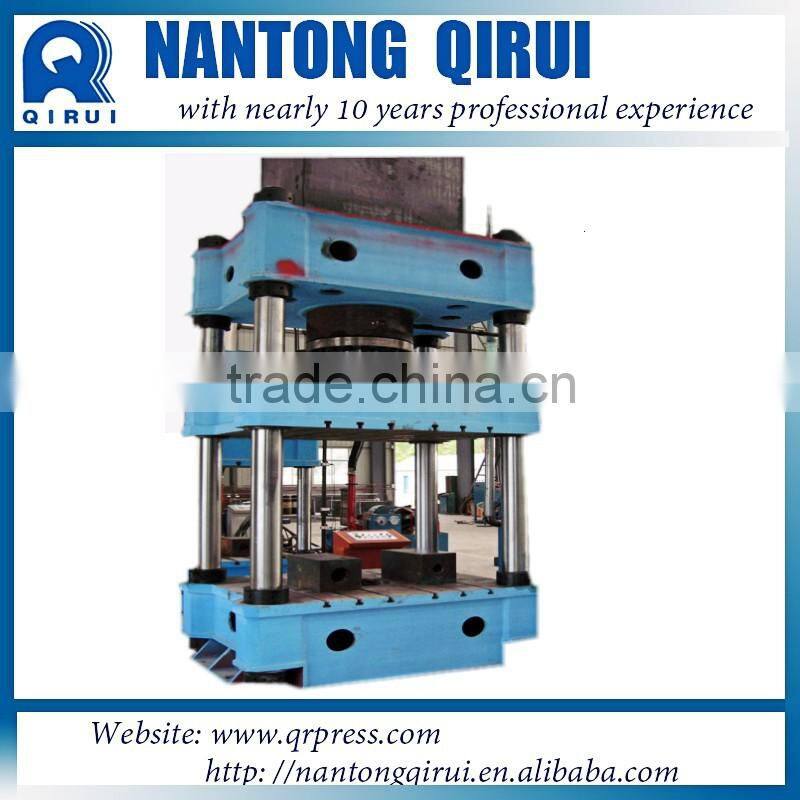

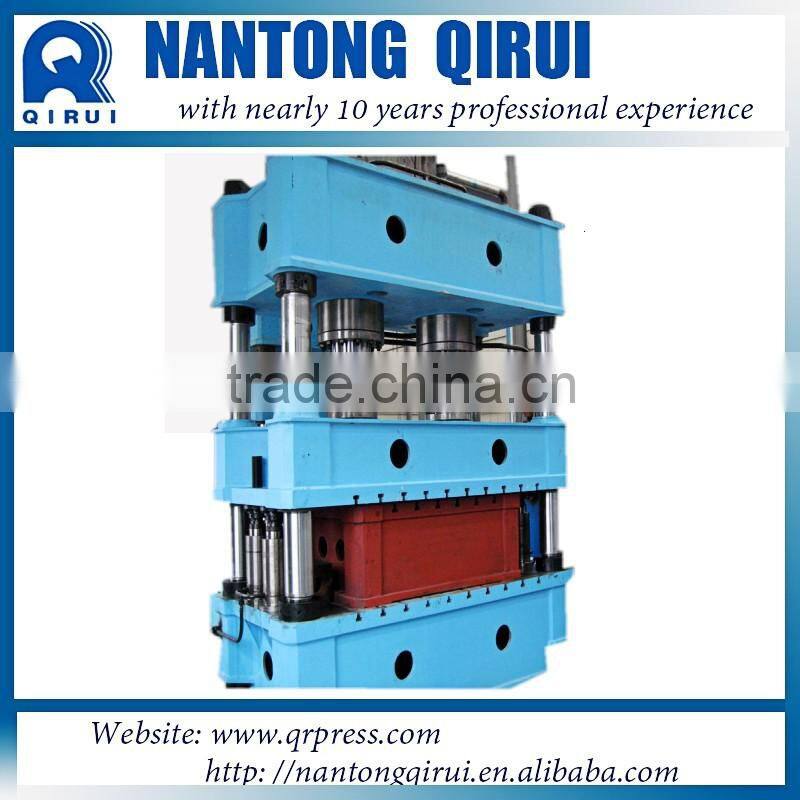

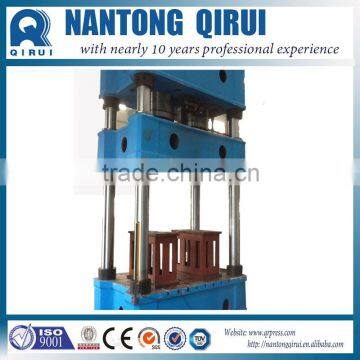

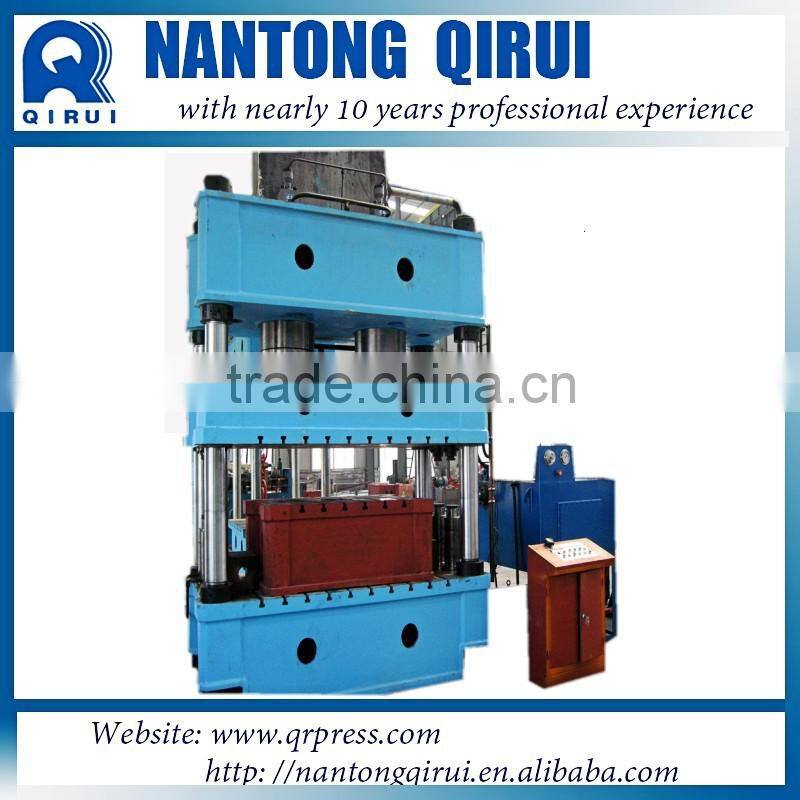

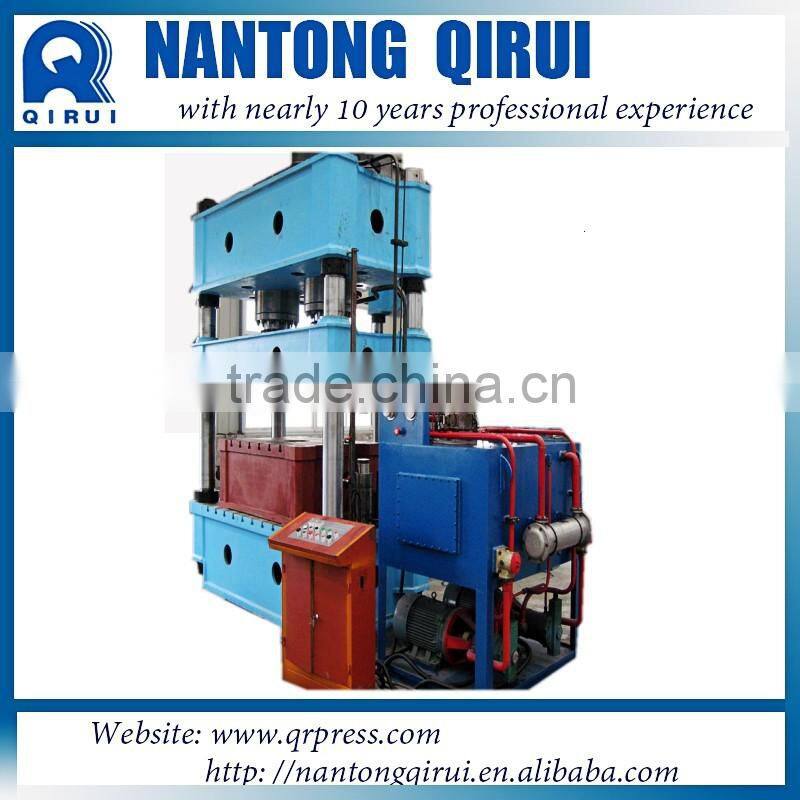

The series hydraulic machine is an universal press equipment.It can be used in the plastic material. Such as powder molding, Plastic molding,Cold (hot) metal extrusion molding and stamping, Bending, Drawing and flanging of the sheet.
The machine has the independent electrical and hydraulic system, it has the adjustment,manual and semiautomatic operating methods and constant process and pressure.
It is Safe and reliable to work, and it is convenient to be repaired.
The series hydraulic machine equipped with accessories for customers to choose :
• Mobility workbench
• Hydraulic damping system
• Screen safety protection device
• Displacement sensing device
• Knock-out device
• Quick die clamping mechanism
• Rail lubricate device

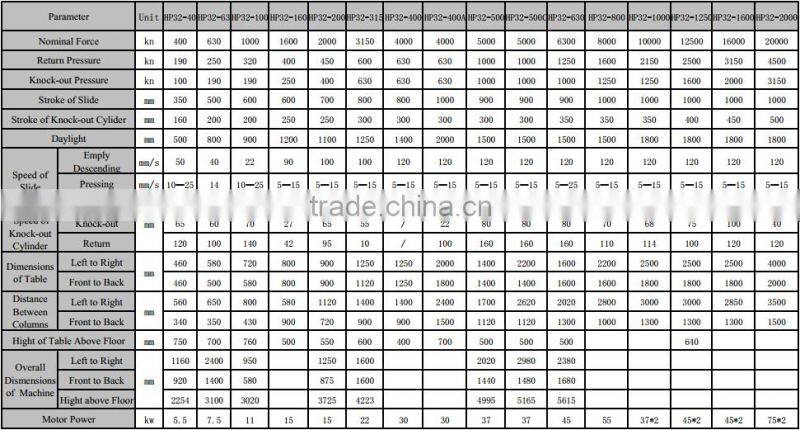

| CE Certification adjustment manual semiautomatic punching hydraulic press | |||||
| Nominal Force | Return Pressure | Knock-out Pressure | Stroke of Slide | Stroke in Knock-out Cylider |
Daylight |
| 4000kn | 630kn | 630kn | 800 mm | 3000 mm | 1400mm |
| Speed of Slide | Overall Dimensions of Machine | ||||
| Emply Descending | Pressing | Return | Left to Right | Front to Back | Height Above Floor |
| 120 mm/s | 5-15 mm/s | 60mm | / | / | / |
| Speed of Knock-out Cylinder | Dimensions of Table | Distance Between Columns | |||
| Knock-out | Return | Left to Right | Front to Back | Left to Right | Front to Back |
| / | / | 1250mm | 1250mm | 1400 mm | 900mm |
| Hight of Table Above Floor | Motor Power | ||||
| 400 mm |
30kw |
||||
recommend products
| Packing | Carton, Pallet or In nude for Nantong top manufacturer of hydraulic press machines for plastic product | |
| Detail accordance with the actual dimension. | ||
| Shipping | Time of Delivery | Within 20-90days after make deposit. |
| Shipping Terms | Seaway or Airway. | |
Why you choose us?
1.Combination of production and trade
2.Strong design team
3. Competitive price
4. Fast delivery time
5. Oversea after-sales service
About the price
1. Do you have a competitive price?
Of course, we have. Have a try, you will know it.
2. How can I get the discount?
The discount is up to your order quantity. Small order will have higher price.
Your rolling order can help you get a bigger discount.
Delivery time, material, length of warranty and the weather need inspections all will influence the price.
About the payment
| NO. | Image | Terms | Details |
| 1 | |
Western Uinon | 40% at Sight and The Balance Payable Before Shippment |
| 2 |
|
T/T | |
| 3 | L/C | Full Persent of The Total Amount | |
| 4 | |
Ali Express |
About the MOQ
1. What is your MOQ?
To our old customers, there is no MOQ. 1PCS, 5PCS, 10PCS… IS OK.
If you are a professional purchaser or specialize in hydraulic press, we can do very small quantity for you. 1pcs or 5pcs.
We hope there will be a bigger one after that. Then there will not be MOQ to you.
About the delivery Time
1. Usually, it is 20-90 days. According to your quantity.
2. Your urgent order is acceptable, But the price will be litter higher than normal.
About our factory local In
1.Where is your company?
Our factory locates in Nantong near Shanghai.
2.How can we get there?
You can only arrive at shanghai and we can go there to pick up you to our company to make a visit.
If you are interested in our products or any questions,
Plz feel free to contact with me.
