The series hydraulic machine is an ideal equipment for sheet metal’s stamping and forming,it is completely suitable for stamping and pressing metal sheet products.
This series of hydraulic press include tetra style (HP27 type) and frame style(HP27 K type), tetrstyle has the advantage of simple structure, wideopen work, economic, practical; frame style has good rigidity, high precision of stability,strong capacity against deflection and inclined loading proof capability. It uses the hydraulic cushion pressure to top the edge andit can adjust flexibly different blank holder.
The machine in the hydraulic cylinder is arranged in the center of the slider, the worktable of the machine has a fixed type and movable type for the user to choose. The machine cylinder (tensile) pressure, hydraulic cushion pressure (pressure side), stroke, hydraulic cushion stroke can be adjusted in a certain range according to the need.
The machine has the independent electrical and hydraulic system, it has the adjustment,manual and semiautomatic operating methods and constant process and pressure. It is Safe and reliable to work, and it is convenient to be repaired.
The series hydraulic machine equipped with accessories for customers to choose :
• Mobility workbench
• Hydraulic damping system
• Screen safety protection device
• Displacement sensing device
• Knock-out device
• Quick die clamping mechanism
• Rail lubricate device

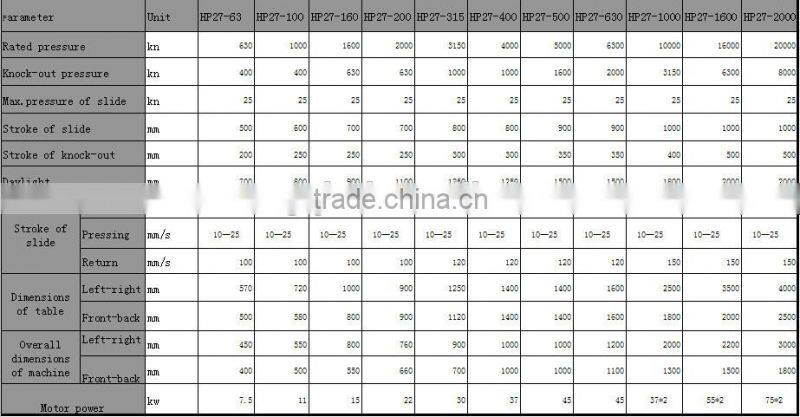

| HP27-63T Series Single Action Hydaulic Press | ||||||
| Raeted pressure | Knock out pressure | ure of liquid | Stroke of slide | Stroke of knock out | Dayulight | Total power |
| 630kn | 400kn | 25kn | 500mm | 200mm | 700mm | 7.5kw |
| Stroke of table | Dimensions of table | Overrall dimensions of machinery | ||||
| Descent | Pressing | Return | L-R | F-B | L-R | F-B |
| 120mm/s | 10-25mm/s | 100mm/s | 570mm/s | 500mm/s | 450mm/s | 400mm/s |
| Packing | Carton, Pallet or In nude | |
| Detail accordance with the actual dimension. | ||
| Shipping | Time of Delivery | Within 20-90days after make deposit. |
| Shipping Terms | Seaway or Airway. |
|
Why you choose us?
1.Combination of production and trade
2.Strong design team
3. Competitive price
4. Fast delivery time
5. Oversea after-sales service
About the price
1. Do you have a competitive price?
Of course, we have. Have a try, you will know it.
2. How can I get the discount?
The discount is up to your order quantity. Small order will have higher price.
Your rolling order can help you get a bigger discount.
Delivery time, material, length of warranty and the weather need inspections all will influence the price.
About the payment
| NO. | Image | Terms | Details |
| 1 | |
Western Uinon | 40% at Sight and The Balance Payable Before Shippment |
| 2 |
|
T/T | |
| 3 | L/C | Full Persent of The Total Amount | |
| 4 | |
Ali Express |
About the MOQ
1. What is your MOQ?
To our old customers, there is no MOQ. 1PCS, 5PCS, 10PCS… IS OK.
If you are a professional purchaser or specialize in hydraulic press, we can do very small quantity for you. 1pcs or 5pcs.
We hope there will be a bigger one after that. Then there will not be MOQ to you.
About the delivery Time
1. Usually, it is 20-90 days. According to your quantity.
2. Your urgent order is acceptable, But the price will be litter higher than normal.
About our factory local In
1.Where is your company?
Our factory locates in Nantong near Shanghai.
2.How can we get there?
You can only arrive at shanghai and we can go there to pick up you to our company to make a visit.
