Help CenterHP-05C-100ton Magnetic Material Wet-moulding Hydraulic Press Machinery
Related Products
-
HP-05C-160 Magnetic Material Wet-moulding Hydraulic Press MachineNegotiableMOQ: 1 Set -
HP-05C-250D QiRui Magnetic Material Wet-moulding Hydraulic Press MachineNegotiableMOQ: 1 Set
-
Hydraulic Package Making Machine With Hydraulic Hose , Hydrulic Cylinder From NantongUS$ 2,000 - 20,000MOQ: 1 Set
-
CNC FRP Door Windows Hand Press Button Making MachineUS$ 1 - 100,000MOQ: 1 Set
-
High Efficiency Hydraulic Press of Baler MachineUS$ 1 - 100,000MOQ: 1 Set

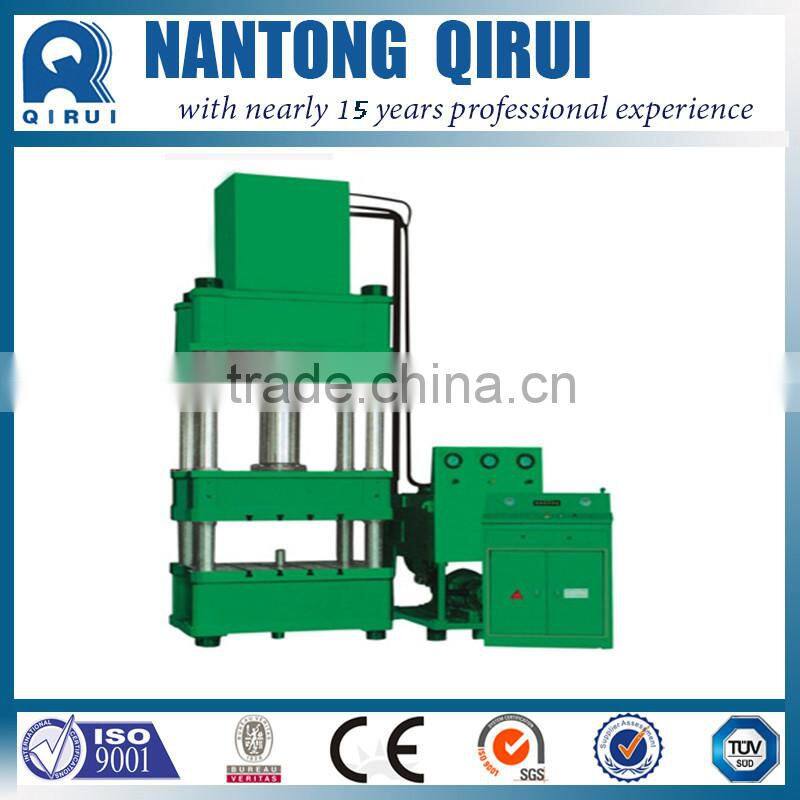

This series hydraulic press is suitable for the magnetic material products for wet molding process, is on the basis of digesting and absorbing advanced technology both at home and abroad, combining the characteristics of magnetic materials industry in China to design and manufacture of a special magnetic material molding equipment.
Machine adopts multistage speed in her work and a variety of craft operating procedures, user can choose according to the requirements of different products flexible, adjustment, so as to make the product forming thickness control in the process of the required range.
This series pressing machine with manual feeding control, semi-automatic control and automatic single
control equipped with material, of the water injection system. Widely used in ring, tile, squares and various special-shaped high-performance wet permanent magnetic ferrite magnet production.
This series press is also equipped with a variety of different specifications of the filling demagnetization power supply equipment and air cooling and water cooling package, for users to choose.
| HP-05C-100D Magentic Material Wet-moulding Hydraulic Press Machine | |||||||
|
Nomimal force |
1000kn |
Slide-travel speed |
Empty slide down |
120mm/s |
Table dimensions |
Left-right | 720mm |
|
knock out force |
400kn |
Speed of slow down |
5mm/s | Front-back | 580mm | ||
|
ure of liquid |
25Mpa | Lowspeed1 | 0.5-3mm/s |
Overall dimensions of table |
Left-right | 3550mm | |
|
Slide stroke |
500mm | Lowspeed2 | 0.02-0.5mm/s | Front-back | 1300mm | ||
|
Push up stroke |
150mm | Return | 60mm/s |
Height above floor |
3800mm | ||
|
Max.distance between lower surface of slide and surface of table |
1000mm |
Push up stroke |
Push-up | 11mm/s |
Total motor power |
7.5kw | |
|
Height of table above floor |
860mm | Return | 17mm/s | ||||
| Packing | Carton, Pallet or In nude | |
| Detail accordance with the actual dimension. | ||
| Shipping | Time of Delivery | Within 20-90days after make deposit. |
| Shipping Terms | Seaway or Airway. |
|
Why you choose us?
1.Combination of production and trade
2.Strong design team
3. Competitive price
4. Fast delivery time
5. Oversea after-sales service
About the price
1. Do you have a competitive price?
Of course, we have. Have a try, you will know it.
2. How can I get the discount?
The discount is up to your order quantity. Small order will have higher price.
Your rolling order can help you get a bigger discount.
Delivery time, material, length of warranty and the weather need inspections all will influence the price.
About the payment
| NO. | Image | Terms | Details |
| 1 | |
Western Uinon | 40% at Sight and The Balance Payable Before Shippment |
| 2 |
|
T/T | |
| 3 | L/C | Full Persent of The Total Amount | |
| 4 | |
Ali Express |
About the MOQ
1. What is your MOQ?
To our old customers, there is no MOQ. 1PCS, 5PCS, 10PCS… IS OK.
If you are a professional purchaser or specialize in hydraulic press, we can do very small quantity for you. 1pcs or 5pcs.
We hope there will be a bigger one after that. Then there will not be MOQ to you.
About the delivery Time
1. Usually, it is 20-90 days. According to your quantity.
2. Your urgent order is acceptable, But the price will be litter higher than normal.
About our factory local In
1.Where is your company?
Our factory locates in Nantong near Shanghai.
2.How can we get there?
You can only arrive at shanghai and we can go there to pick up you to our company to make a visit.
If you are interested in our products or any questions,
Plz feel free to contact with me.
