hot new products for 2014 security flashing light el poster
Thickness |
0.15-0.5mm |
Flexible |
Can be bent |
Size |
Over 120cm x 240cm need to combine several panels to make it. |
Shape |
Any shape available. |
Brightness |
85-200cd/m2 |
Life span |
10,000 – 20,000 hours based on animation effect. |
Safety |
No Ultraviolet Radiation emitted |
Service environment |
Indoor, Outdoor |
Operating temperature |
-30°C to 70°C |
Storage temperature |
-40°C to 85°C |
Humidity Range |
5% to 95% |
Power Resources |
DC 1.5V to 24V or AC100V/240V |
Operating current |
less than 0.25 mA / cm² |
Operating capacitance |
0.20 ~ 0.65 nf/cm² |
Supply frequency |
1.5KHz sine wave at AC 100V rms |
Warranty |
1 year factory warranty for indoor usage EL panel, |
6 month warranty for outdoor or vehicle usage EL panel. |
|
Certificate |
CE and ROHS |
Frequency |
400-800HZ |
Lighting Area |
1%~100% |
Effect: When the music beats, the equalizer moves to the beat of music!
Different music frequency will activate a different equalizer bar!

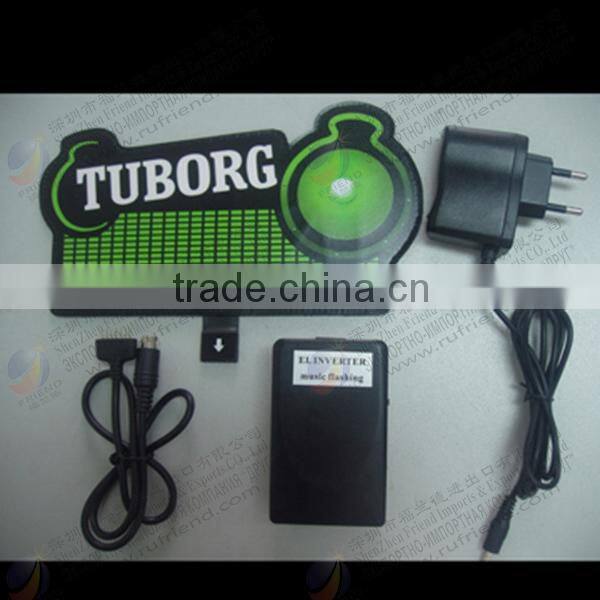

Work: Sound Activated car stickers-- It is a layer of soft and thin sheet be stick on rear windshield or side window, wherever you feel appropriate. Use driving equipment, plug it to 12VDC power, it can produce beautiful effect
How it works: The product control box built-in sound sensor, relying on sound control lights with sound flashing!
Please kindly leave us the remark of the one you need.
Brief Introduction of EL
EL is as thin as paper, the second layer is inorgnic material, the first & third layer are two electronic-poles. It is also called cold light source because there is no heat generated in using. The unigue structure & characteristics can supply you a special kind of plane film cold light source. It has great superiority compared with other man-made light sources.
Energy Saving-----drive voltage, with both alternating current & direct current, low power consumption, the energy consumption is 5% as much as bulb light, and 10% as LED.
Convienent in use------very thin (0.2mm), flexible & can be fabricated to complex shape,easy to cut & install. Can be applied to make products with high quality & high difficulties.
Functional--------smooth surface with various kinds of mutiple lighting color, soft, non-glare,flah at will, brightness is adjustable, can be seen clearly from faraway distance, water proof,and shock resistant, lighting with as less space as possible. Life time of more than 25000 hours.
Enviornmentally-----cold light sources with no altraviolet rays.Burn in fire after using, comply with enviornment protection standard.
Safe ----- cold light source.. No heat is generated in using, the temperature is lower than fluorescent lamp, a series of problem lead by accumulation of heat can be avoided.
Mjor Functions of EL products

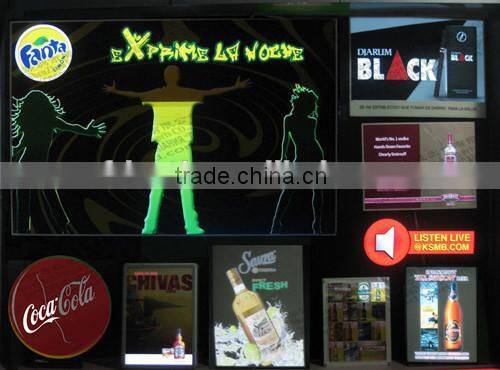

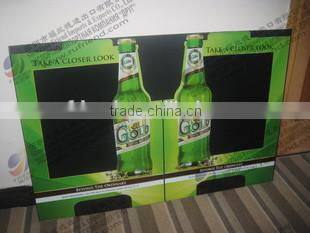

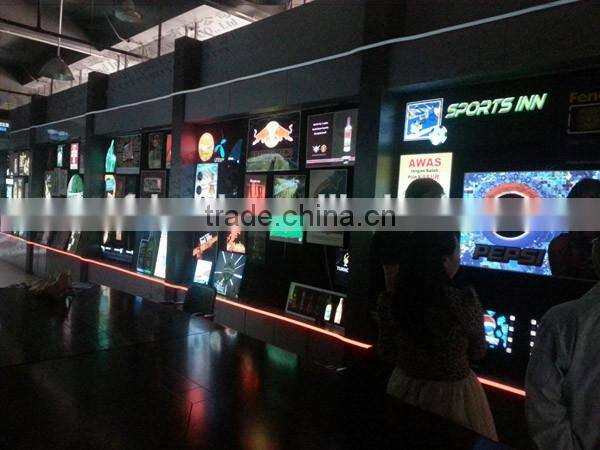

Commercial advertisement: EL can be applied in commercial advertisement. It can change & flash with wonderful pictures. It gives special advertise effect especially indoors.
Backlight: widely used in mobile, telphone,watch and clock, computer( laptop & palmtop) remote control, electronic notebook, e-dictionary, musical appliances ,photocopier,cash register,e-weight, household appliances, automobile apparatus meters etc.
Architecture & Indoor design: elevator floor's mark, emergency life saving mark, light switch display, adornment of light on the wall, desk-lamp design,warning mark on the road, nightlight ec.
Sales Promotion : clothes, chest's card, lighting photo frame, toys & adornments for Christmas & New Year, giftsware etc.
Military & Aviation: can be applied to carry on the back in the military map in ligh in the night time, apparatus meters' display & backlight, airplane landing mark,military tunnel subsidiary light source,air attack headquarters lighting,air-drop target light, marking for identifies in the nighttime like some important facilities of military, aviation, transportaion etc.
Process of production:
