Cheap colorful el tape/el light tape with high brightness
Product Description
Item: Electroluminescent strip with lead wire and connector
Length: 1.4 meter, approximately 4 feet 8 inches
Width: 16 millimeter, approximately 5/8 inch. Lighting width 10 mm, approximately 13/32 inch.
Thickness: 0.4 millimeter, approximately 1/64 inch
Lead wire: 30 centimeter with connector, approximately 12 inch.
Won't stop the par-ty!!!
Main Adantage:
1. No harms the nature - -not to live ultraviolet, does not effect the human body
2. The shape wilfully - - can according to manufacture'demand to made each kind of shape
3. The power loss is low - - in the enery very low also can live light, consumes power is milliwatt
4. Ultra thin - -the thinnest may below 0.18mm
5. But the curve –can shine in each kind of shape, the curve light to suitable the shape ,aslo can fold
6. No fever -- electroluminescent film is a cold light, work without basic temperature, temperature lower than the fluorescent lamp.
7. Ray uniform, soft -- not its light flickered. will not make eye nervousness, fatigue.
8. Earthquake Prevention and good -- film electroluminescent and other devices, not having its external shocks Failure
9. long-life -- the life expectancy is based on EL half-life (half brightness) value The usually the time for 3000 -25000 hours

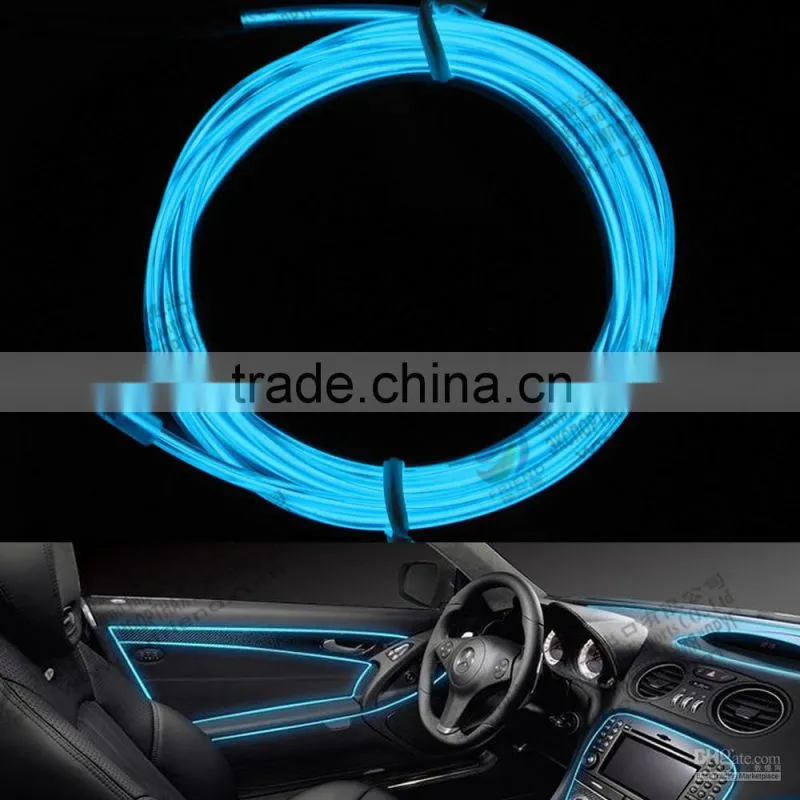

EL strip: making a fancy car!
*Specification Any size is OK,Stock size
1.EL Strips applications:
1.1.For house decoration--------walls,proofs,furnitures,window,stairs,corridors.
1.2.Car safety warning.------------Put on backside window,to increase the safey when driving at night.

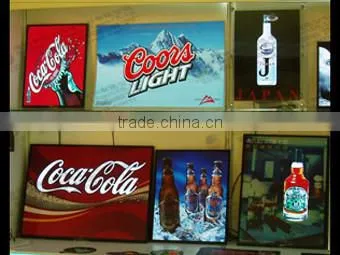

1.3.Exit sign---------------------------For hotels,cinemas,theaters,bus stations,KTV bars,discos,clubs,supermarkets,
subways,exhibition centers and so on.
2.Complete product includes: el tape+inverter (DC12V+AC adaper or AC90-240V inverter or DC3V Battery inverter)
EL Speciality
speciality |
Item |
parameter |
|
speciality electricity |
working voltage |
30-250VAC |
|
the best working valtage |
90-110VAC |
|
|
frequency |
50~5000Hz |
||
the best working frequency |
400-1200Hz |
||
capacity of static electricity |
0.3nf/cm2 min |
400Hz |
|
electric current |
0.14mA/cm2 max |
100V 400Hz |
|
effectiveness lost |
2mw/ cm2 max |
||
life time |
96Hr |
60°C 90%RH 100V 400Hz |
|
optics |
the luminosity of colour at early time |
blue100cd/ cm2 green130cd/ m2 |
100V 400Hz |
the half decline |
>3000Hr |
||
life timethe |
>25000Hr |
Inverter drive |
|
circumstance |
working temperature |
-50°C~60°C |
5cycles/30min |
stored temperature |
-65°C~85°C |
||
heat strike |
-30°C /70°C |
|
Energy Saving-----drive voltage, with both alternating current & direct current, low power consumption, the energy consumption is 5% as much as bulb light, and 10% as LED.
Convienent in use------very thin (0.2mm), flexible & can be fabricated to complex shape,easy to cut & install. Can be applied to make products with high quality & high difficulties.
Functional--------smooth surface with various kinds of mutiple lighting color, soft, non-glare,flah at will, brightness is adjustable, can be seen clearly from faraway distance, water proof,and shock resistant, lighting with as less space as possible. Life time of more than 25000 hours.
Enviornmentally-----cold light sources with no altraviolet rays.Burn in fire after using, comply with enviornment protection standard.
Safe ----- cold light source.. No heat is generated in using, the temperature is lower than fluorescent lamp, a series of problem lead by accumulation of heat can be avoided.
And so does the el board!
Our main product
hardware,Advertising products,Daily necessities,Electronic products,inflatable
We specialize in this field for many year!
Any question, Please contact with us!
