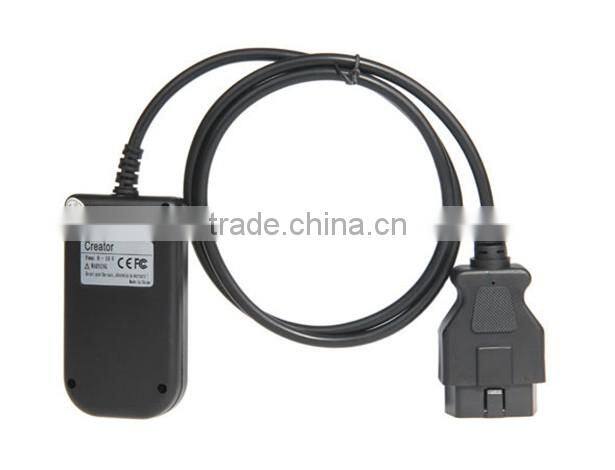

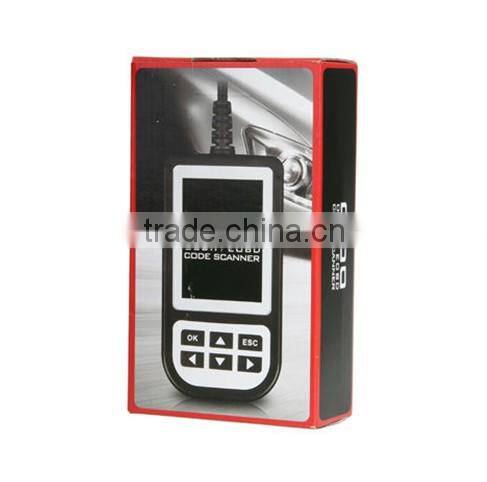

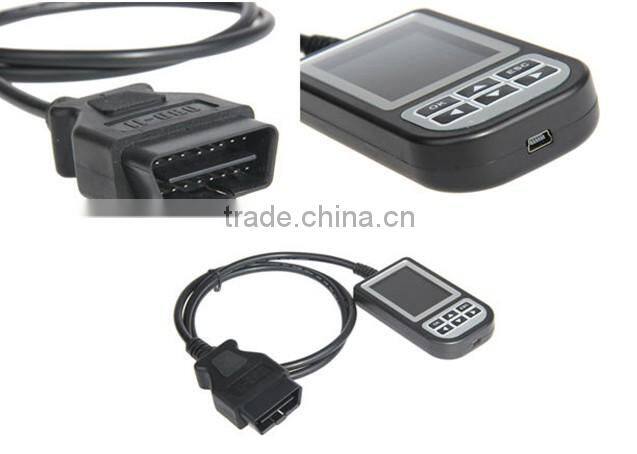

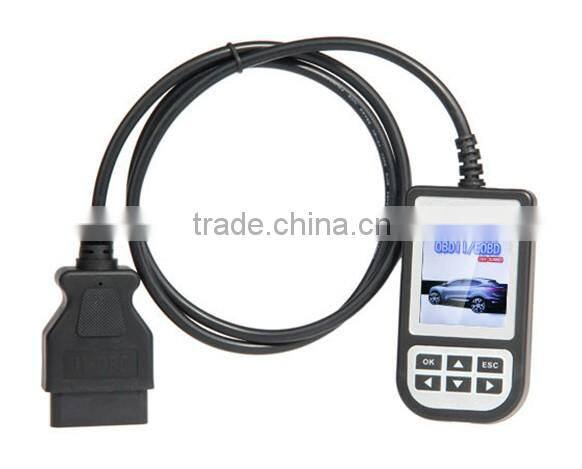

2014 Free shipping !! super C100 Auto Scan OBDII/EOBD Code Reader OBD2 code scanner C100 scanner
C100 scanner
Specifications
A) Display: Color , 240 x 320 pixel display
with contrast adjustment
B) Operation Temperature: -20 °C -- 75 °C
C) Stroge
Temperature: -40 °C -- 120 °C
D) Power: 8V -- 18V
E) Dimensions:
Length
Width Height
100 mm 54 mm 18 mm
F) Weight:
Net Weight: 210 g
Gross
Weight: 320 g

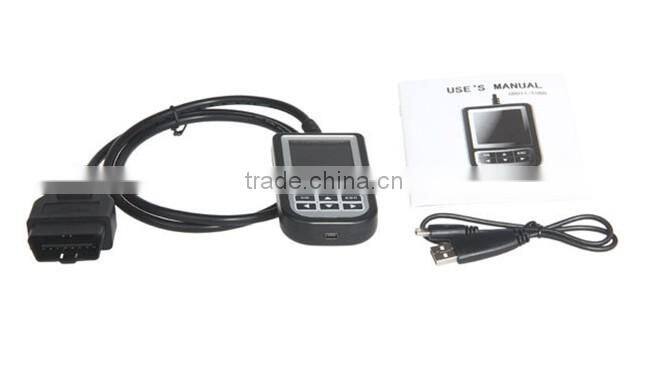

Accessories Include
A) C100 Scanner – for test vehicle
B)
User’s Manual – Instructions on tool
operations.
C) CD – Include User’s
Manual, Update
Software and etc.
D) USB Cable – Used to upgrade
the
scan tool.
Product Features & Functions
Works on all 2001 and
later OBDII compliant PETROL European vehicles
Works on all 2004 and later
OBDII compliant DIESEL European vehicles
Works on all 1996 and later OBDII
compliant US and Asian vehicles
Easily determines the cause of the “Check
Engine Light ( MIL)”
Retrieves generic (P0, P2, P3, and U0) and
manufacturer specific (P1, P3,
and U1) codes
Turns off Check Engine
Light (MIL), clears codes and resets monitors
Displays DTC definitions on
unit screen
Views freeze frame data
Identifies pending codes
Reads live PCM datastream
Graph displays live PCM datastream
Displays
live O2 sensor test data
Performs modules present test
Retrieves
vehicle information (VIN, CIN and CVN)
Supports CAN (Controller Area
Network) and all other current OBD-II
protocols
Color LCD, large 240 *
320 resolution
Software upgradeable via USB cable
Protocols
covered:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP 2000 (5 baud init,
10.4 kbaud)
ISO 14230-4 KWP 2000 (fast init, 10.4 kbaud)
ISO 15765-4
CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO
15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250
kbaud)
