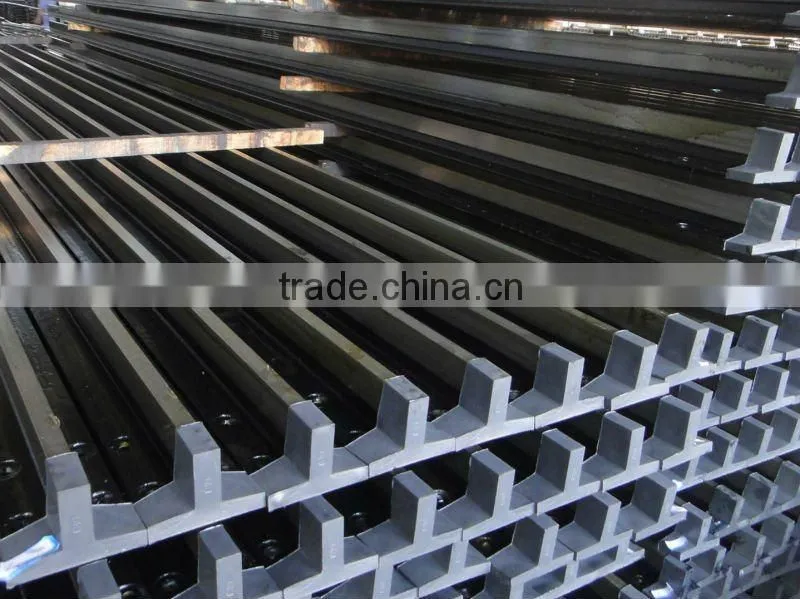

China Bonly T90B Machined Guide Rail
1. Elevator Guide Rail T90B 16mm
2. Basic dimensions: International Standard ISO7465.
3. Processing methods: machining
4. Packing:
Bonly general packing: all types of guide rails are packed in bundles, with protective sheathes protecting both ends and each bundle repacked in blue plastic sheeting. Customers' desires may be satisfied accordingly.
7. Material: all types of guide rails material is Q235
| Chemical Composition | Mechanical Characteristic | ||
| C% | ≤0.28 | Breaking Point | 370-520N/mm2 |
| Mn% | ≤1.40 | Elongation | >24% |
| P% | ≤0.045 | Hardness | HB143 |
| S% | ≤0.045 | ||
| Si% | ≤0.35 | ||
8. Other types of guide rails basic dimensions: are as follow
T45A: 45*45*5mm Cold drawn
T50A: 50*50*5mm Cold drawn
T70-1B: 70mm*65mm*9mm
T75-3B: 75mm*62mm*10mm
T78B: 78mm*56mm*10mm
T82B: 82.5mm*68.25mm*9mm
T89B: 89mm*62mm*16mm
T90B: 90mm*75mm*16mm
T114B:114*89*16mm
T127-1B: 127*89*16mm
T127-2B: 127*89*16mm
T140-1B: 140*108*19mm
TK3
TK5
TK5A
9. Remarks
All Bonly products are produced according to ISO7465 international standard. OEM services provided. Dimensions displayed here is only for information. For details, you are welcome to contact us.
