2014 Top rated Free shipping Wellon VP298 VP-298 Universal IC Programer EEprom Flash MCU Programmer Writer,VP 290 Wellon Program

Specifications

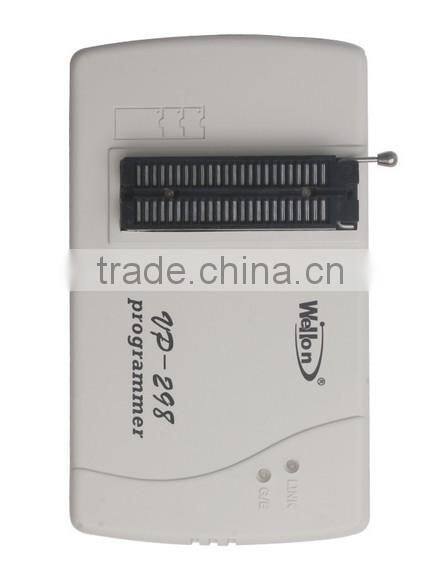

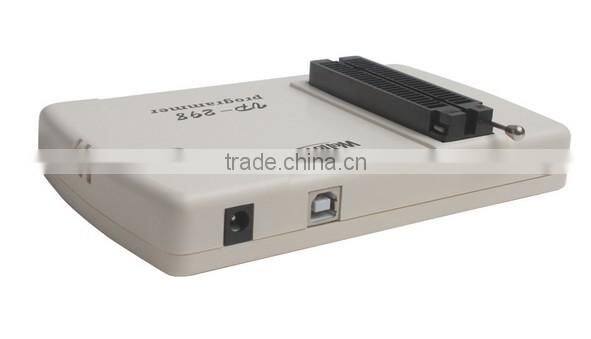

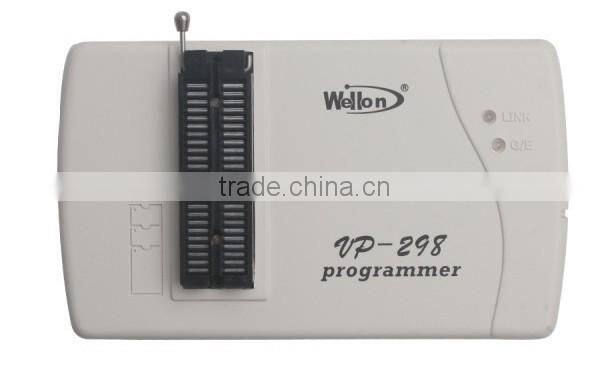

Wellon Programmer VP-298 VP298

VP-298 is a reliable, high speed, high performance and low cost of high-level general-purpose programmer. Integrated menu-driven interface, support for seven languages. Support WindowsXP / Vista / Windows 7 (32bit and 64bit) operating system. Load, edit and save files very easy. Support for dozens of manufacturers of PLD, E (E) PROM, FLASH, MCU, etc. thousand kinds of programmable devices. Can test TTL & CMOS standard logic devices and memory. This programmer for electronic product development, mass burning chips, mobile phones, computers, car maintenance.

Dimension:168*98*23mm,weight:265g.
•Electrical spec. of the AC adapter: AC input 100V to 240V, 50/60Hz, DC output 9V/0.6A

•Standby current: <200 mA;  Operating Current :250-350mA

48 Pin ZIF socket pin-drivers.
•Interface with LAPTOP, PC or compatibles through USB port
•Accepts standard file formats: JEDEC, INTEL (Extended) HEX, HOLTEK, EMC(.CDS), INTEL HEX16, Motorola S record
•Manages 16 and 32-bit word split (Set Programming)
•Features Test Vector capability and multiarray fuse map editor
•Test TTL/CMOS logic ICs Access Memory devices
•Optimum programming for each individual device
•Automaticly Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC
•Device insertion and poor-pin-contact check
•Support 1.5v Low voltage devices
•Not need exterior adapter for mostly devices.
•Auto-run mode starts programming automatically upon detection of chip insertion
•Supports WindowsXP/Vista/ Windows 7 (32bit and 64bit)
•Supports eight languages,such as Chinese(Simplified),Chinese(Traditional),English,Korean,Poland,Italian,Portuguese and Dutch..

DEVICE SUPPORT:

 The full device support can be seen here.If you need,please contact us,we will send it to you.


Package list:

1 VP-298 programer

1 usb cable

1 power adapt

1 user manual

1 cd disk
