Specifications
UPA green color1.Latest Version
2.One Year Warranty
2014 Top-Rated professional Auto ECU Programmer upa green ,universal ecu chip tuning tool UPA USB Programmer V1.2 green color
25 Adapters V2013 UPA USB PROGRAMMER with 25 Adapters-UPA usb programming V2013 is the full set with all 25 adapters, The main Device can be directly connected to the UUSP (UPA-USB Serial Programmer) or by an optional DB9 male / female 1:1 extension cable.
UPA-USB programmer with 25 adapters set
V2013 UPA-USB PROGRAMMER with 25 Adapters
language: English.
Version: HW:V2013;
SW:V1.2
Product Information
Upa-usb 2013 is the full set with all adapters, The main Device can be directly connected to the UUSP (UPA-USB Serial Programmer) or by an optional DB9 male / female 1:1 extension cable. It's equipped with an 40pin ZIF Socket for all narrow and wide DIP / DIL devices as well as with a 16 pin SOIC ZIF (150mil, narrow) socket to cover most commonly used devices.
Device configuration is done over special config keys which make the work convenient and safe compared to wiring up all manually.
Additional packages can be covered by commonly available Adapters plugged into the 40 pin ZIF socket.
The main Device further includes a 10 pin ISP connector where the included ISP Adapters can be connected using a standard 1:1 flatribbon cable (included). The included PLCC ISP Adapters are to be put directly over the soldered chip of the target device making the work convenient and safe compared to soldering or using clips connecting up all manually. (Power from the UUSP to the ISP target can be enabled or disabled by a jumper next to the 10 pin ISP connector)

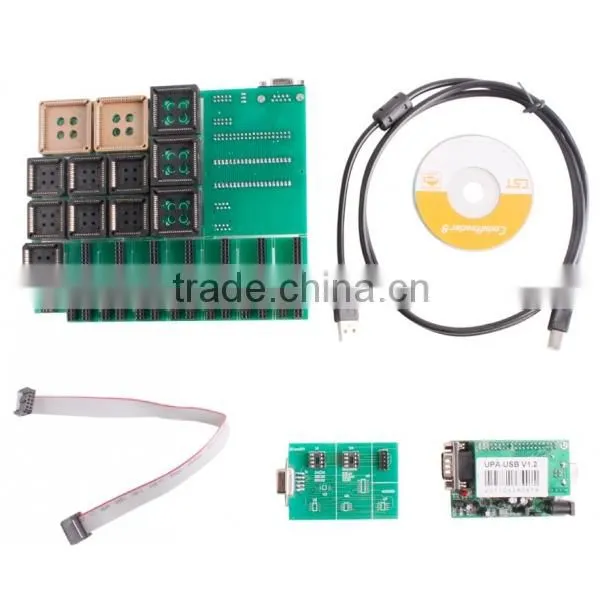

UPA USB V1203 Package contains:

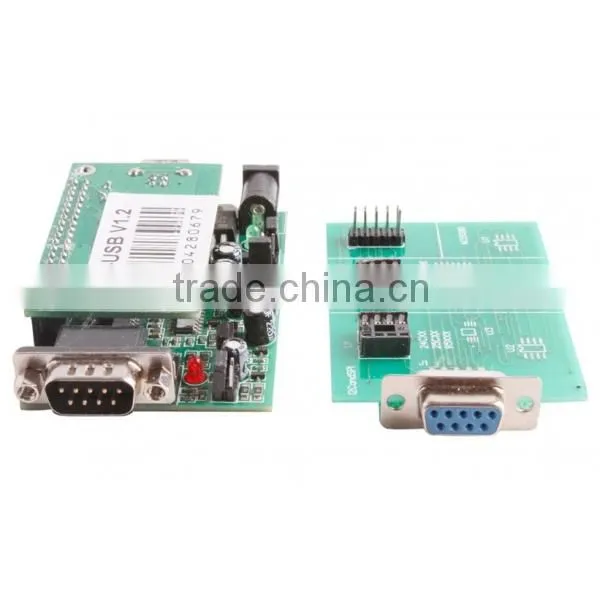

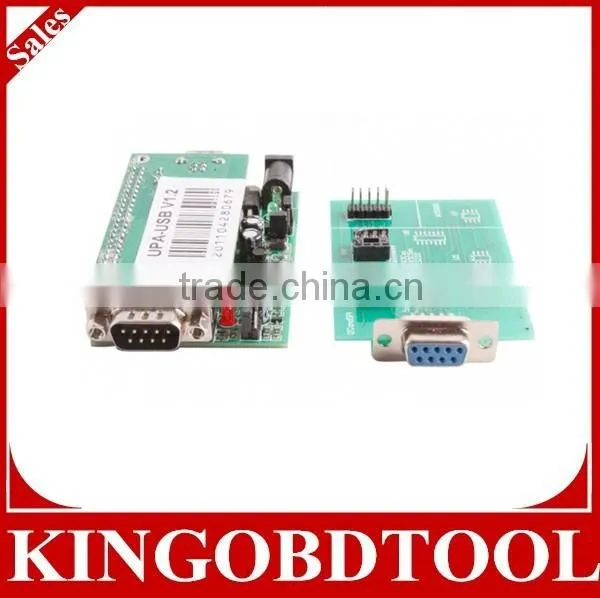

1x UPA programmer
1x USB cable
1 x Mainboard with 40pin DIL ZIF (600mil) socket and 14pin SOIC ZIF (150mil) socket

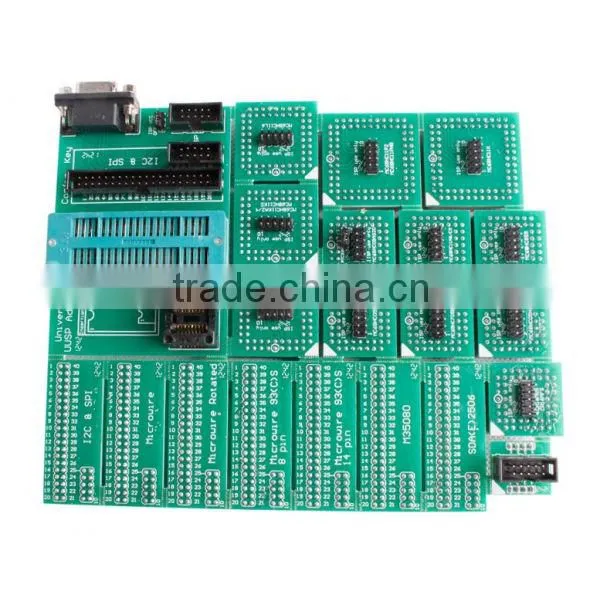

Config Keys: (For Device configuration)
1 x I2C & SPI Config Key
1 x Microwire Config Key
1 x Microwire Rotated Config Key
1 x Microwire 93(C)S 8 pin Config Key
1 x Microwire 93(C)S 14 pin Config Key
1 x M35080 Config Key
1 x SDA(E)2506 Config Key

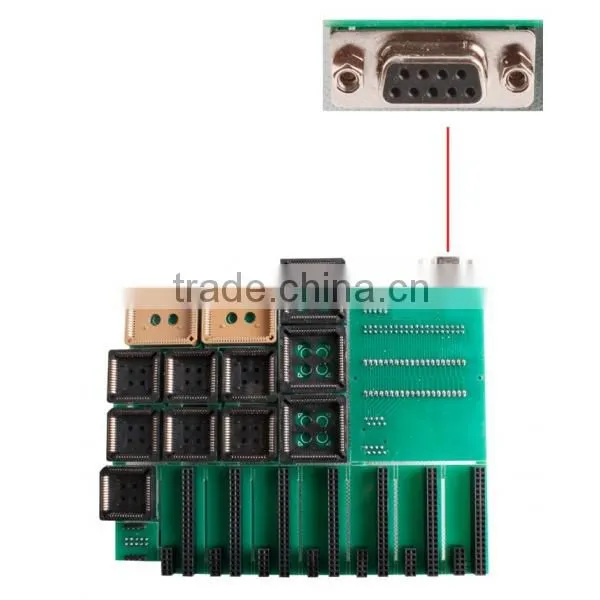

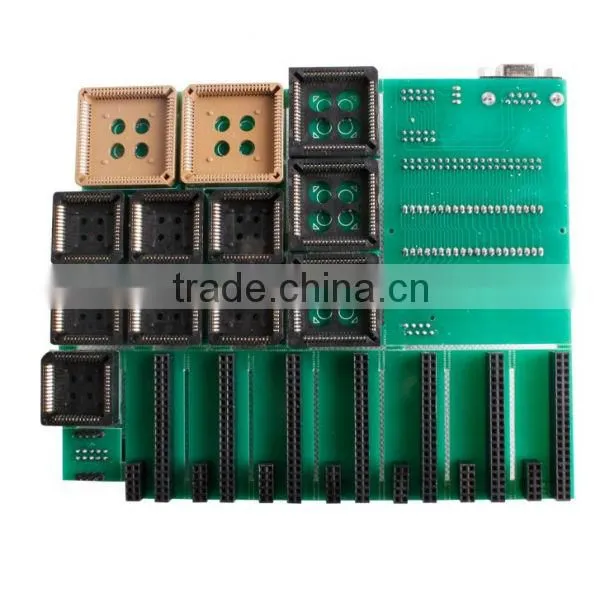

PLCC52 ISP Adapters:
1 x CR16MES & CR16MFS ISP Adapter
1 x MC68HC05B ISP Adapter
1 x MC68HC08AS20 ISP Adapter
1 x MC68HC705B16 ISP Adapter
1 x MC68HC11A8/E9 ISP Adapter
1 x MC68HC05H12 ISP Adapter
1 x MC68HC11EA9 ISP Adapter
PLCC68 ISP Adapters:
1 x MC68HC11F1 ISP Adapter
1 x MC68HC11KA2/4 & MC68HC11KS ISP Adapter
1 x MC68HC11L6 ISP Adapter
PLCC84 ISP Adapters:
1 x MC68HC11P2 & MC68HC11PH8 ISP Adapter
1 x MC68HC11K ISP Adapter
1 x DIL to 10pin Flat-ribbon header (For using IC clips or clamps)
1 x Flat-ribbon cable 10pin
UPA USB V1203 EEproms
Simply connect the mainboard to the UPA programmer directly or by using a DB9 male / female extension cable (1:1). Insert the correct config key into the slot of the mainboard and start programming either via the ZIF or SOIC Socket. You can also use the included DIL to 10pin Flat-ribbon header, put it inside the ZIF socket and wire up an SOIC clip or clamps for ISP use from there.
UPA USB V1203 Motorola MCU's
Pick the Adapter you want to use, -attach the flat cable to the Adapter (PIN1 is always indicated, on both the cable and also the Adapter) and also to the main board's 10pin ISP connector. Select the VCC supply source by the jumper on the mainboard next to the ISP connector (on = target supplied from upa, off = target got own supply). Slide the Adapter over the soldered PLCC MCU on the target PCB. (No soldering, no pinout reviewing, no pin counting, saves lots of time and hassle and let's you make your job faster, precise and easier)
