Specifications

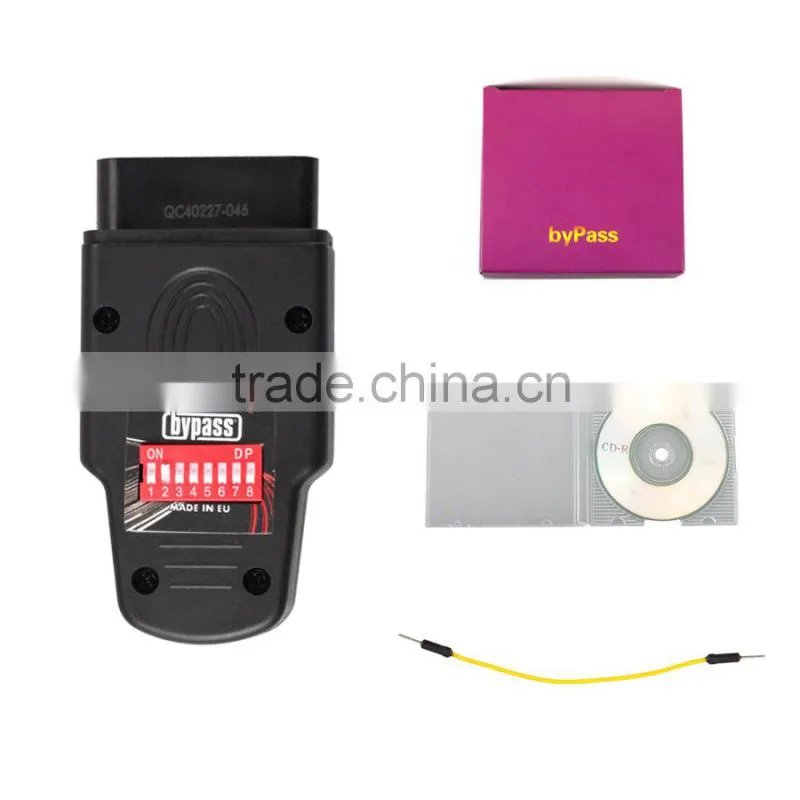

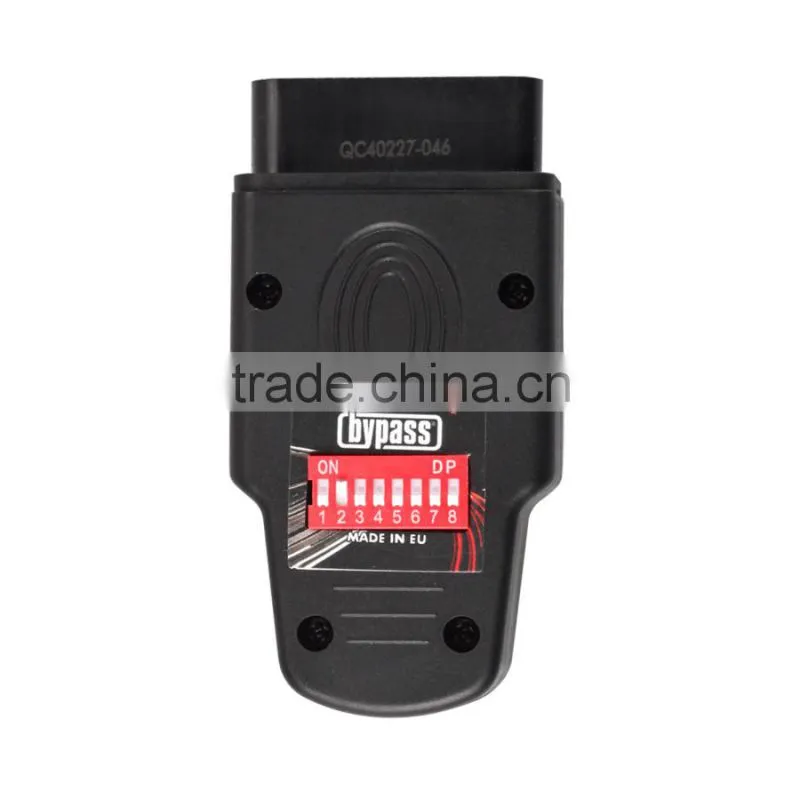

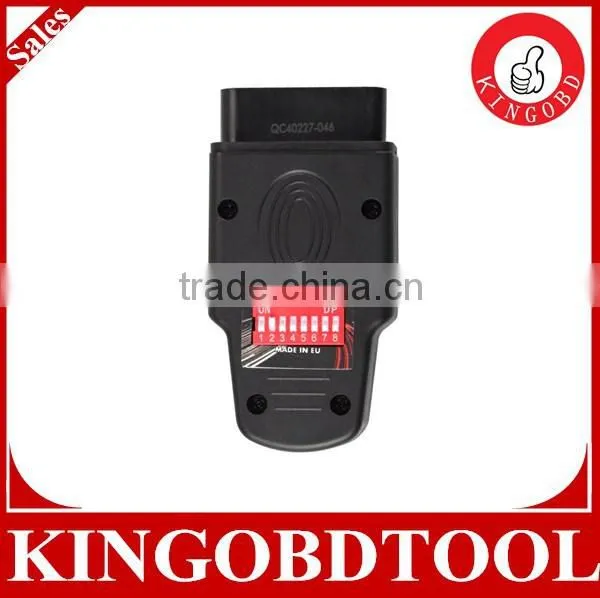

Low price !! 2014 Top-rated immobilizer ByPASS for VAG Simulator ByPASS ECU Unlock immobilize Tool High performance
BYPASS For Audi Skoda Seat VW ECU Unlock Immobilizer Tool
USE:
Tdi EDC16- immo off
Tdi EDC16- immo on
K-line + Can
Test on Drives:
0281011XXX
K-Line
0281011145 VW Passat B5 2.0 Tdi mechanical igniton switch
0281011258 VW Tourareg 2.5 Tdi
0281011364 A3 1.9Tdi 2004
0281011383
0281011385
0281011568 VW T5 2.5 Tdi 2006/2007
0281011843 Golf5 2.0 Tdi 2004
0281011844 VW Touran 2.0 Tdi 2004
0281011855 VW T5 1.9 Tdi 2003
0281011856 VW T5 1.9 Tdi 2005
0281044882 VW Caddy 1.9 Tdi 2006
0281011883 Skoda Octavia 1.9 Tdi 2004-2010
0281011900
0281011945
0281011946 Touran 1.9 Tdi 2006
0281011907 Touran 2.0 Tdi
0281012XXX
K-Line
0281012220 VW GOLF5 1.9 Tdi 2005
0281012390 VW Caddy 1.9 Tdi 2003-2010
0281012696 Seat Alhambra, VW Sharan 2.0 Tdi 2005-2010
0281012698 Skoda Super B 2.0 Tdi 2006
0281012762 VW T5 1.9 Tdi 2006-2010
0281012792
CAN
0281012113 Audi A4 2.0 Tdi 2008
0281012545 AUDI 1.9 Tdi 2007
0281012546 Audi 1.9 Tdi 2006
0281012654 Audi 2.0 Tdi 2005
0281013XXX
K-Line
0281013228 VW Jetta 2.0 Tdi 2007
0281013299 Skoda Octavia2 2.0 Tdi 2005-2011
0281013302 VW Touareg 2.5 Tdi 2005-2010
0281013311 VW Passat 2.0 Tdi 2005-2009
0281013440 VW Passat C 2.0 Tdi 2005-2009
0281013606 VW Golf5 1.9 Tdi 2006
CAN
0281013177 A6 2.7 Tdi 2007
0281014XXX
K-Line
0281014004
0281014044 VW Touran 1.9 Tdi 2006-2010
0281014049 T5 2.5 Tdi 2007
0281014064 VW Golf 1.9 Tdi 2006-2008
0281014128 Tauran 1.9 Tdi 2006-2010
0281014136 Skoda Octavia II 1.9 Tdi 2006-2010
0281014891 T5 2.5 Tdi 2009
CAN
0281014384 A6 2.7 Tdi 2007
Tdi EDC15 - IMMO OFF, IMMO ON:
1.4 1.9 2.5 diesel, since 2000 year to 2004 year, some to 2006 year and even to 2008 year(without AUDI with coded pump)
Selected the Needed Program with Swtiches: Tdi EDC16 K-Line IMMO OFF(3)
Immobilizers Simulator
Cocting the emulator
Red-power
Blue-GND
Green-Code
White-CAN L
Black-CAN H
Two Leds Incidcating:
Whilte LED-Power
Blue Led- information about transmission
- all switches turn off- diagnostic mode 2 sec do not light/ 1 sec will blink
-Adjusting to the driver-blinking 1 sec
-After adjusting 2 seconds is light on and then will stop for 1 sec
Citroen, Pegueot, Renault ECU with processor TMS374-IMMO
Power supply of emulator +5V!!!
