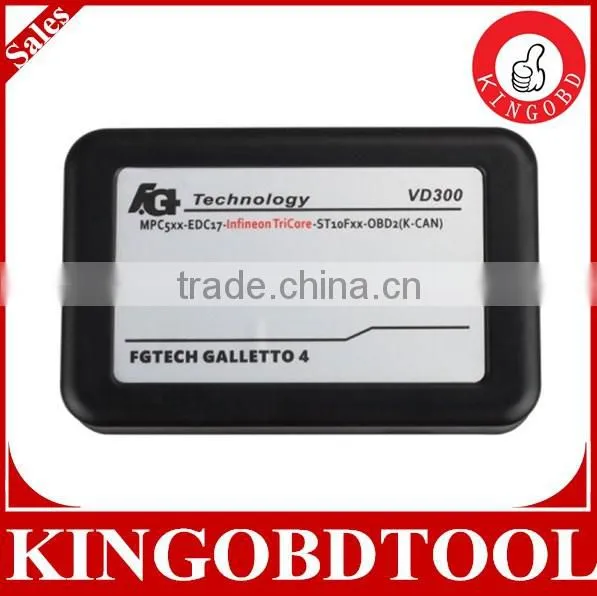

2016 Latest Version VD300 V54 FGTech Galletto 4 Master BDM-TriCore-OBD Function Ecu Programmer Tool
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, ECU Programmer Tool
Voltage:
standard
Power:
standard
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2015 Hot Promotion Lastest Version Xprog 5.55 With USB Dongle Universal ECU Programmer XPROG MUS$ 90 - 100MOQ: 1 Set -
2016 Best Offer Xprog 5.55 X-PROG Box V5.55 ECU Programmer Update Version of 5.50 XPROG-M V5.55 FreeNegotiableMOQ: 1 Set
-
2016 Wholesales Radios,Odometers,Dashboards,Immobilizers Car Repair Tools Car Prog Carprog V7.28 Full Set 21 Diagnostic ToolNegotiableMOQ: 1 Set
-
2016 New EOBD Galletto 1260 ECU Chip Tuning Tool Galletto 1260 EOBD II Flasher Ecu ProgrammerNegotiableMOQ: 1 Set
-
2015 High Quality Galletto 1260 ECU Chip Tuning Interface With Original RL232 ChipsNegotiableMOQ: 1 Set
Type
Other, ECU Programmer Tool
Voltage
standard
Power
standard
Certification
CD
Applicable Models
Multi-brands
Place of Origin
Guangdong, China
Brand Name
KINGOBD
Model Number
VD300
Warranty
1 Years
Latest Version VD300 V54 FGTech Galletto 4 Master BDM-TriCore-OBD Function
Top 6 Reasons To Get VD300 V54 FGTech Galletto 4:
1. Latest Version: V54
2. Supported Operating System: Windows XP, more friendly than Fgtech v53 , much easier to operate
3. Unlock Version: Can Use Directly. No Need To Activate
4. FGTECH V54 PCB board
5. Supported Languages: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish
6. Support Tricore Function
FG Tech Galletto BDM Connection:
FG Tech Galletto 4 Maste Description:
FGTech Galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode, checksum.
V54 FGTech Galletto 4 Boot Mode System:
NEW JTAG - BDM - MOTOROLA - FREESCALE - INFINEON
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF
New Delphy DCM3.5xx DCM3.7xx TRW
Motorola Freescale MPC 555/556/561/562/563/564/565
Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
Motorola MC 68376 Campi 01 Lamborghini - Lotus
Motorola MC 68336 MEMS D5 ROVER
Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG
New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu
V54 FGTech Galletto 4 Automatic Checksum:
All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
Boot Mode C167x / ST10, Boot Mode Infineon With password Bosch , Siemens
Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
Motorola Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566
BDM
5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM GM -FORD
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm,
FGTech Galletto 4 Master Version:
Recovery Mode Completa
Funzione scan tool per eliminare i DTC
Function scan tool for erase the DTC
Controllo tensione di batteria auto in tempo reale
Check tension of battery car in real time

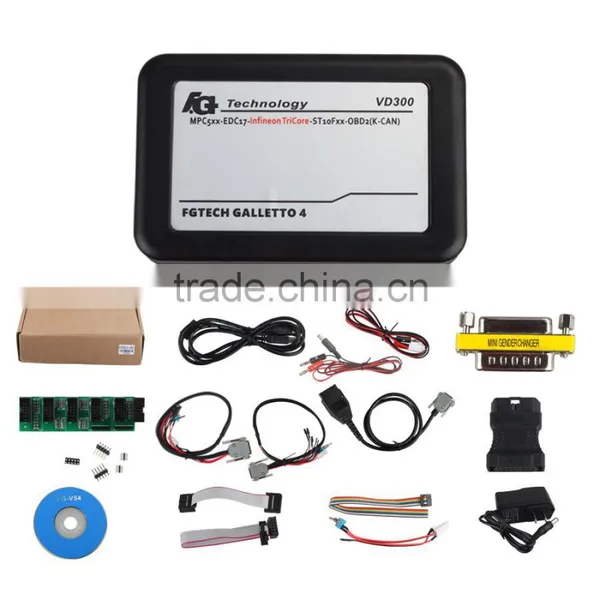

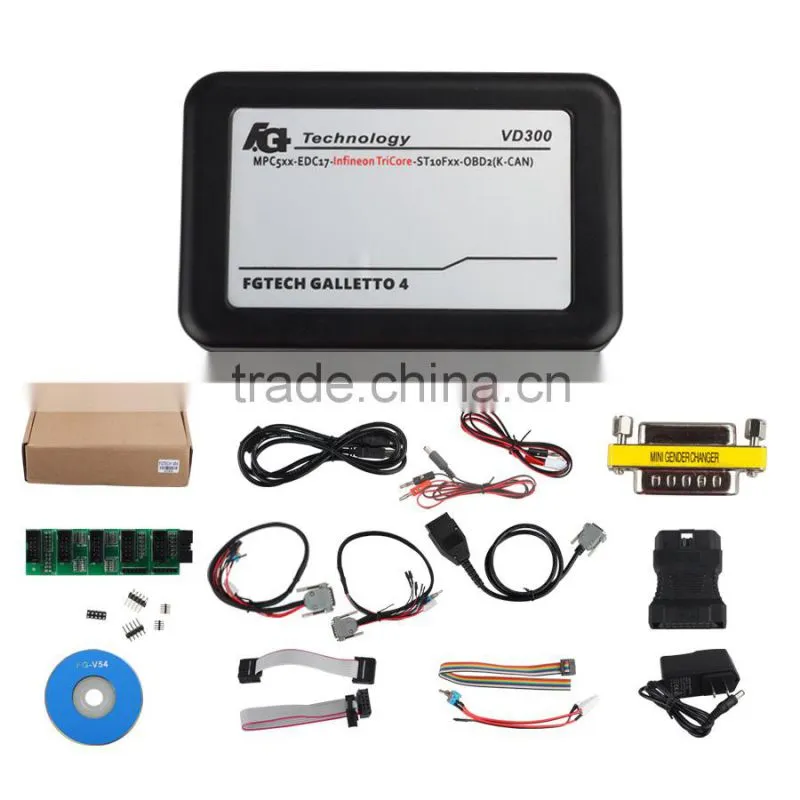

FGTech Galletto V54 Package List:
1pc x New Version Main Interface
1pc x ECU Cable for Boot
1pc x Adapter for BDM to CMD with BDM Cables
3pcs x BDM Adapters
6pcs x BDM Connectors
2pcs x Power Cable
1pc x OBD2 Cable
1pc x USB Cable (1.5meter)
1pc x CD ( SW -MASTER, Documents PDF, Pictures, etc.)
