Specifications
90 degree dc power plug 3.5mm * 1.1 mm1.Durability: Over 5,000 cycles.
2.High Promotion Factory Prices.
3.High or Low Volum

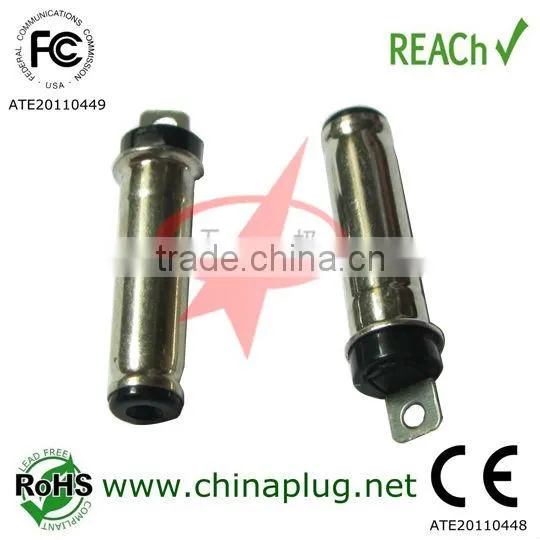

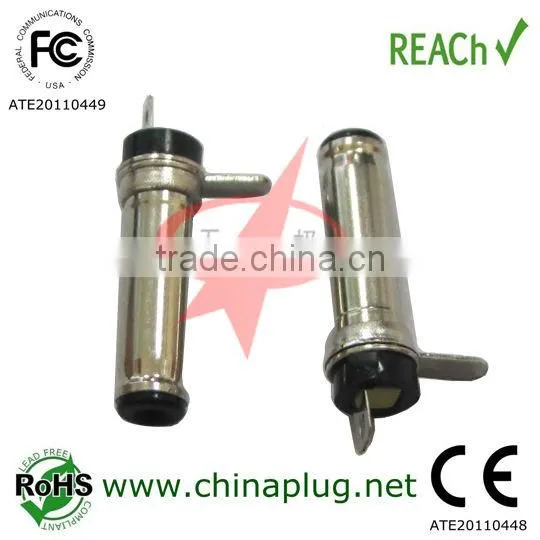

mobile phone 90 degree dc power plug 3.5mm * 1.1 mm
Specifications:
1.Materials: |
Copper rod (59%), POM plastic, phosphor bronze clip. |
2.Environmental friendly: |
ROHS and REACH 84 items, CE & FCC certified approval. |
3.Technical index: | |
Temperature: |
-20°C--+85°C |
Rated Voltage & Current: |
AC500V, 0.5MA |
Insulation resistance: |
>100 MΩ |
Insertion force: |
0.3-3KG |
Durability: |
Over 5,000 cycles |
Salt spray test: |
>24 hours |
4.Admittance: |
No shorting & No breaking down. |
Tin soldering: |
Temperature is about 350°C±10°C, 2-3 seconds. |
5.Save: |
Under room temperature in dry area. |
6.Monthly output: |
50,000,000 pcs. |
Packages for shipment
Advantages:
· Our salespersons will work with your time and 7*24*52 services for you.
· All of our products with ROHS, Reach 84items, CE & FCC certificate appliance.
· We test 100% of your order before delivery.
· Factory prices, absolutely competitive in the global electrical industry business.
· 1 Year warranty for anything you purchase from our factory!
Below is our certifications:
company profile:
Dongguan Chanshan Wuji Electrical Factory is a manufacturer specializing in producing all kinds of DC plug and jack connectors, headphone charger plug connectors, earphone plug connctors, converter plug connectors, audio/video plug connectors. Our prodcts are widely useded in headphone charger connector, earphone hands free cable, car charger & car mounted charger, car audios, digital cameras & computers, the wiring plug and jack on other electrical appliances, also we make 100% according to custonmers request. our products are sold to all around China and export some of them to the world, enjoying a high reputation in the Yangtze River Delta and Pearl Delta electronic production areas.
