Standard Five Sintered Wire Mesh

Name: Standard Five Sintered Wire Mesh
Brand: JASL
SKU: 108067489
Availability: InStock

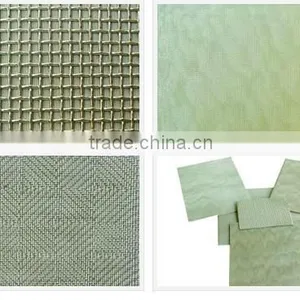

Standard Five Sintered Wire Mesh thumbnail-1

Standard Five Sintered Wire Mesh photo-1

Negotiable MOQ: 10 Square Meters (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Material:

Stainless Steel Wire

Type:

Other

Contact Supplier Request Quote Chat Now

Anping County Sanlian Filtering Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Material Stainless Steel Wire

Type Other

Application Other

Brand Name JASL

Specifications

1.Micron:1-300um
2.Materials:SUS304 316 316L
3.Thickness:1.7mm+-0.2mm
4.Standard:5Layer

Stainless steel sintered wire mesh is generally with a five-layers structure which is divided into the protective layer , the control layer, the dispersion layer and the reinforcing layer. This kinds of filter medium has both uniform and stable filtration precision and a relatively high strength and rigidity, which is an ideal filter material to those requirements of high compressive strength and uniform filter particles.

As filtration mechanism of Stainless Steel Sintered Wire Mesh is surface filtration ,and also with smooth mesh, so it has excellent reverse-wash performance, and could be repeatedly used for long time, which is especially fit for the continuous and automated operation. It is kind of superior filter material that others cannot compared with.

Our sintered wire mesh is easily molding, machining and welding , by which it could be processed into round filter elements, cylindrical filter elements, conical filter elements, pleated filter elements, etc.

Features:
1, High Strength and Good Rigidity: With high mechanical strength and compressive strength, it has good performance of machining, welding and assembly, easy to use.
2, Uniformity and Stability on filtration precision: All the filtration precision can achieve uniform filtration performance; Mesh opening will not be deformed in use.
3, Extensive use temperature: from -200 degrees to 600 degrees

Application

1) Precision filtration in a variety of hydraulic oil, lubricants in the machinery industry;
2) Filtration and Purification in a variety of polymer melts in the fiber film industry; various high temperature and corrosive liquid filtration in petrochemical and chemical industry; filtering, washing and drying of materials in the pharmaceutical industry ;
3) Gas homogenization application in the powder industry ; Fluidized plate in the steel industry;
4) The explosion-proof electric apparatus and so on.

Specification:

1) Standard materials are SUS304 (AISI304), SUS316 (AISI316), SUS316L (AISI316L); Hastelloy, Monel, Inconel and other special alloys also can be customized for the customer.
2) Standard Size: 500 × 1000 mm, 600 × 1200 mm, 1000 × 1000mm, 1200 × 1200mm.
3) Filtration Precision :1 um -100um;
4) Special specifications can be supplied according to the buyer's requirements.

Model	Nominal Filter Rating ( u)	Structure	Thickness (mm)	Air Permeability (L/min/cm2)	Bubble Pressure (mm H2O)	Weight (kg/m2)	Porosity (%)
SLT 5-1	1	100+400X2800+ 100+12X64+64X12	1.7	1.81	360-600	5-layer sintered wire mesh(8.4) 6-layer sintered wire mesh (14.4)	37%
SLT 5-2	2	100+325X2300+ 100+12X64+64X12	1.7	2.35	300-590
SLT 5-5	5	100+200X1400+ 100+12X64+64X12	1.7	2.42	260-550
SLT 5-10	10	100+165X1400+100+12X64+64X12	1.7	3.00	220-500
SLT 5-15	15	100+165X1200+100+12X64+64X12	1.7	3.41	200-480
SLT 5-20	20	100+165X800+100+12X64+64X12	1.7	4.50	170-450
SLT 5-25	25	100+165X600+100+12X64+64X12	1.7	6.12	150-410
SLT 5-30	30	100+450+100+12X64+64X12	1.7	6.7	120-390
SLT 5-40	40	100+325+100+12X64+64X12	1.7	6.86	100-350
SLT 5-50	50	100+250+100+12X64+64X12	1.7	8.41	90-300
SLT 5-75	75	100+200+100+12X64+64X12	1.7	8.7	80-250
SLT 5-100	100	100+150+100+12X64+64X12	1.7	9.1	70-190

Note: The 6-layers sintered wire mesh is to add 12 mesh to the 5-layer sintered wire mesh. Its thickness is 3.5mm. And it has the higher anti-pressure ability.
