0.9degree 24V 42bygh Stepper Motor Nema 17

0.9degree 24V 42bygh Stepper Motor Nema 17 thumbnail-1
0.9degree 24V 42bygh Stepper Motor Nema 17 thumbnail-2
0.9degree 24V 42bygh Stepper Motor Nema 17 thumbnail-3
0.9degree 24V 42bygh Stepper Motor Nema 17 thumbnail-4
0.9degree 24V 42bygh Stepper Motor Nema 17 thumbnail-5
0.9degree 24V 42bygh Stepper Motor Nema 17 thumbnail-6
0.9degree 24V 42bygh Stepper Motor Nema 17 photo-1
0.9degree 24V 42bygh Stepper Motor Nema 17 photo-2
0.9degree 24V 42bygh Stepper Motor Nema 17 photo-3
0.9degree 24V 42bygh Stepper Motor Nema 17 photo-4
0.9degree 24V 42bygh Stepper Motor Nema 17 photo-5
0.9degree 24V 42bygh Stepper Motor Nema 17 photo-6
US$ 4.6 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MAINTEX
Model Number:
42BYGA2-14
Contact Supplier Request Quote Chat Now
Shenzhen Maintex Intelligent Control Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MAINTEX
Model Number 42BYGA2-14
Phase 2
Type Hybrid
Certification CCC, CE, ISO, ROHS, UL, Other, CCC, CE, ISO, ROHS, UL, QC080000
Step Angle(degrees) 0.9 Degree
Holding Torque 150-424mN.m, 265mN.m
Current / Phase 0.1-2.3 A



0.9degree 24V  42bygh stepper motor Nema 17

Product Description



Description of 0.9degree 24V  42bygh stepper motor Nema 17



Step Angle Accuracy: ±5%(full step, no load)

Resistance Accuracy: ±10%

Inductance Accuracy: ±20%

Temperature Rise: 80℃max (rated current, 2 phase on)

Ambient Temperature: -20℃~+50℃

Insulation Resistance: 100MΩ min,500VDC

Dielectric Strength: 500VDC for one minute

Shaft Radial Play: 0.02mm max(450g load)

Shaft Axial Play: 0.08mm max(450g load)

Max. radial force: 28N(20mm from the flange)

Max. axial force: 10N

Rotation:        CCW

Insulation Class B(130℃)

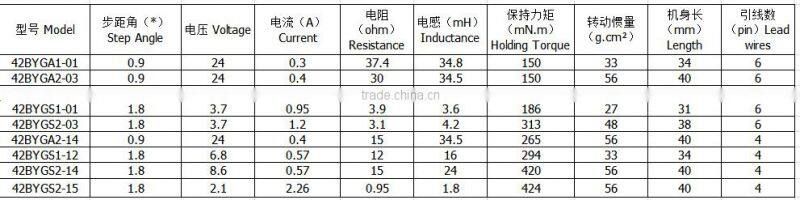

Parameter of  0.9degree 24V  42bygh stepper motor Nema 17

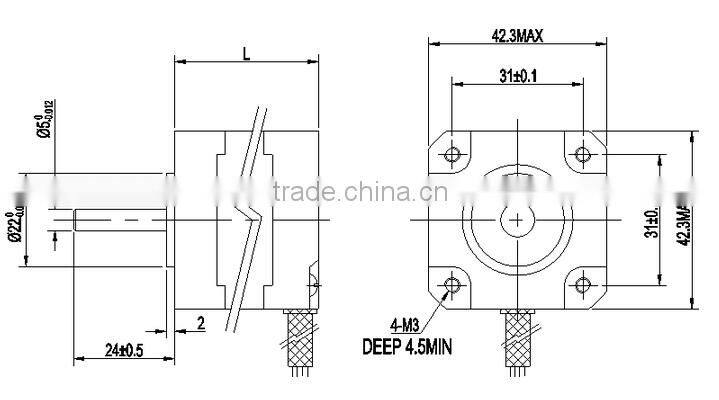

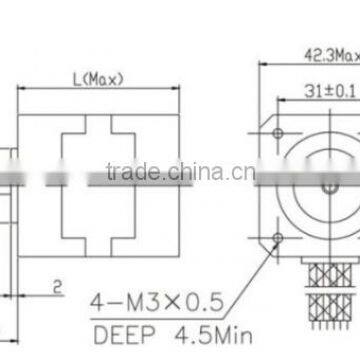

Drawing of 0.9degree 24V  42bygh stepper motor Nema 17 0.9degree 24V 42bygh stepper motor Nema 17






Applications  of 0.9degree 24V  42bygh stepper motor Nema 17

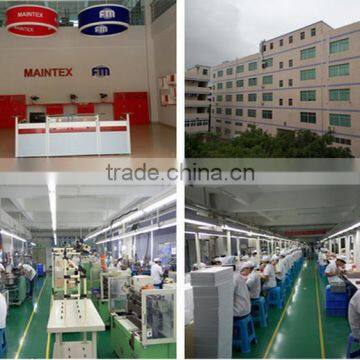

Our Company

 0.9degree 24V 42bygh stepper motor Nema 17





Company Information



0.9degree 24V 42bygh stepper motor Nema 170.9degree 24V 42bygh stepper motor Nema 170.9degree 24V 42bygh stepper motor Nema 170.9degree 24V 42bygh stepper motor Nema 170.9degree 24V 42bygh stepper motor Nema 170.9degree 24V 42bygh stepper motor Nema 170.9degree 24V 42bygh stepper motor Nema 17





Packaging & Shipping



0.9degree 24V 42bygh stepper motor Nema 170.9degree 24V 42bygh stepper motor Nema 17
