Dc-dc Boost Module 0.9V ~ 5V to 5V 600MA

Dc-dc Boost Module 0.9V ~ 5V to 5V 600MA thumbnail-1
Dc-dc Boost Module 0.9V ~ 5V to 5V 600MA thumbnail-2
Dc-dc Boost Module 0.9V ~ 5V to 5V 600MA photo-1
Dc-dc Boost Module 0.9V ~ 5V to 5V 600MA photo-2
US$ 0.6 - 1 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sinetech
Model Number:
DC DC converter
Contact Supplier Request Quote Chat Now
Shenzhen Sinetech Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Sinetech
Model Number DC DC converter
Output Power 1 - 50W
Output Type Single
Size 50mm*17mm*14mm
Weight 15g
Input Voltage 0.9V~5V
Output Voltage 5V
Type DC/DC Converters
Output Frequency 0-400HZ
Output Current 600 MA

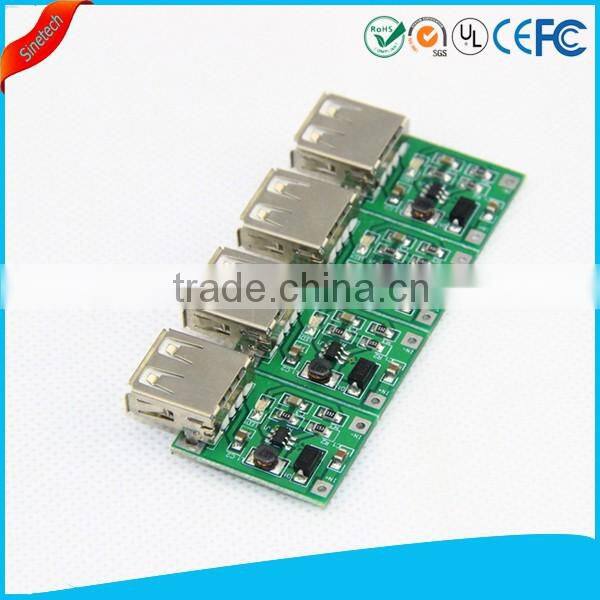

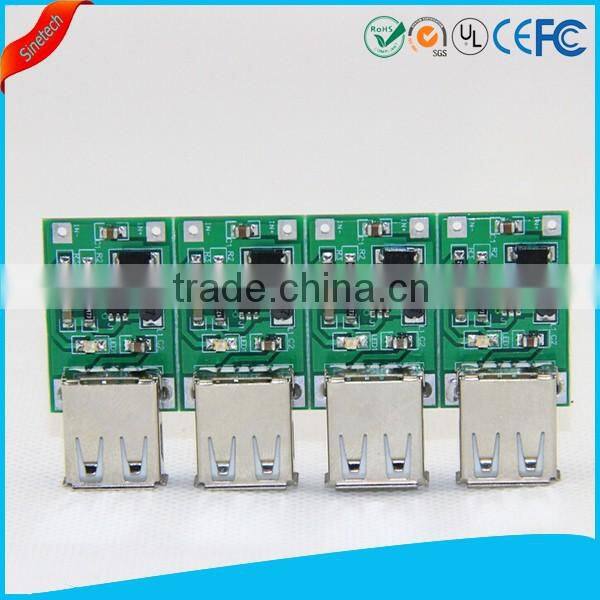

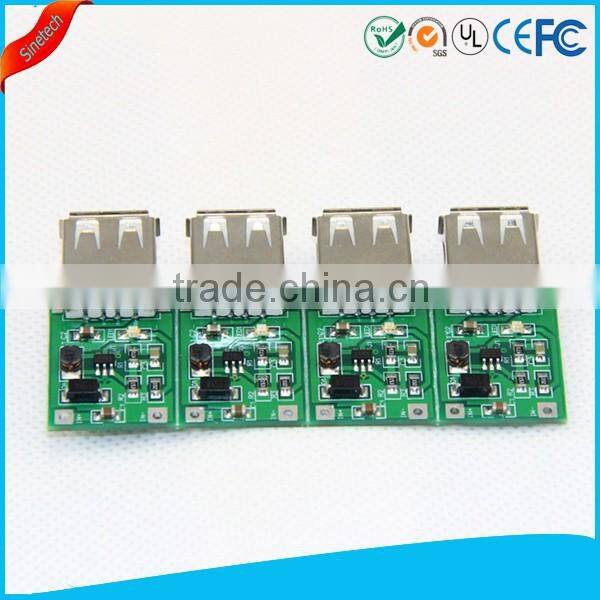

   dc-dc Boost module 0.9V ~ 5V to 5V 600MA





Product Description



• 1. This module uses high-performance chip , performance is better than the general module .

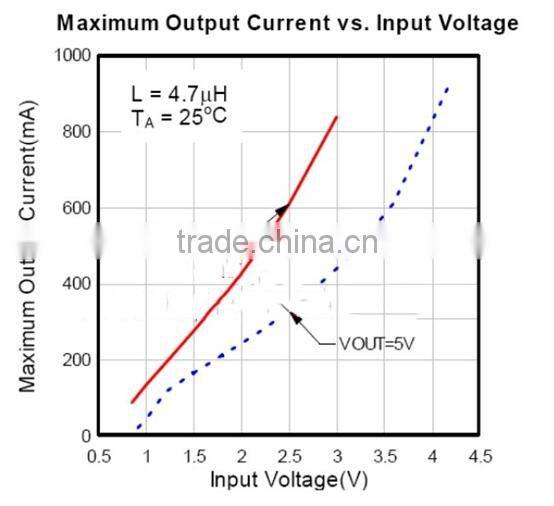

• 2. Enter any 0.9V ~ 5V DC voltage output 5V DC voltage can be stable , with a single AA battery can deliver up to 200 ~ 300MA current , two AA batteries can be 500 ~ 600MA of output current, for your phone , camera , microcontrollers and digital products supply
• 3. Industrial temperature range : -10 ℃ --- + 85 ℃

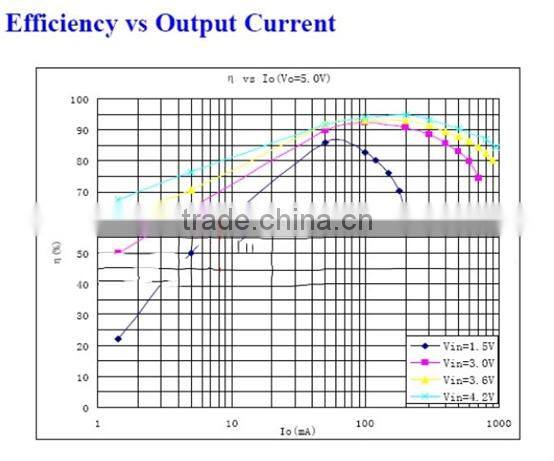

• 4. High conversion efficiency, up to 96%
• 5. With USB female seat , wide range of uses
• 6. The ultra-small size (PCB board 25mm * 18mm), with the installation of a variety of small equipment in
• 7. with working lights

• • Useage:


 • 1.DIY mobile power: When you travel or travel always feel your cell phone, MP3, MP4, PDA, PSP is not enough electricity, and you have extra batteries, you can consider yourself a DIY a mobile power; as long as this module plus your choice of [a section of lithium or 2-3 NiMH] can output 5V voltage for your phone, MP3, MP4, PDA, PSP charging.
• 2. Adjust voltage: If you need different voltage when the power in the product design, the device requires a 5V power supply, then choose this module will be your best choice.
• 3. Power Supply: When your power is very unstable, high and low, but when your device needs 5V supply, and that the choice of this module will be your best choice.
 • 4. Are the power supply modules short-circuit protection? I accidentally entered a short-circuit when in use will burn it?
• A: No short-circuit protection, if you need to short-circuit protection, self-recovery series fuse at the input end..
• Notes: Since some manufacturers for their own interests, will be added in MP3MP4 mobile phones and other products in the identification resistor.
 • So purchase this module, if you find you can not use, please ascertain whether the addition of the identification resistor



Notes:

1 ) This module is a step-up module , the output voltage is greater than the input voltage

2 ) Peak current output current does not exceed 600mA





Model

DC DC Converter

Output power(W)

1-56W

Input voltage(V)

0.9V--5VDC

Output voltage(V)

5V DC

Conversion efficiency

96%

Isolation/Non-isolated

Non-isolated

Output type

Singal

Output current (Amp)

600mA, self-adaption

Input/output interface

Wiring, customization available

Load regulation rate

<1%

Voltage regulation rate

<2%

Ripple

<50mV

Protection

Over-current, over-voltage, Over-temperature, shutdown, short-circuit, reverse polarity protections

Waterproof

Yes

Basic parameter

Dimension(LxWxH)

50x17x14mm, etc

Weight

20g

Case

Plastic ABS

Cooler

Natural cooling

Rated temperature

40°c

Operating temperature

-25°c~85°c

Warranty

1 year
Our Services



Item

Type

Voltage convert

Output current

1

DC-DC Converter - step down

24vdc to 12vdc

1/2/3A

2

DC-DC Converter - step down

12vdc/24vdc to 5vdc

1/2/3A

3

DC-DC Converter-Boost

5vdc to 12vdc

1/2/3A

4

DC-DC Converter-Boost

12vdc to 36vdc

1/2A

5

DC-DC Converter-Boost

12vdc to 48vdc

1/2A

6

DC-DC Converter - step down

36vdc/48vdc to 12vdc

1/2/3A

7

DC-DC Converter-Boost

12vdc to 24vdc

1/2/3A

8

DC-DC Converter - step down

60vdc to 12vdc

10/12/15A

9

DC-DC Converter - step down

60vdc to 24vdc

10/12/15A

10

DC-DC Converter - step down

60vdc to 36vdc

5/8A

11

DC-DC Converter - step down

12vdc to 5vdc

1/2/3A

12

DC-DC Converter - step down

36vdc/48vdc to 24vdc

10/12A

13

DC-DC Converter - step down

48vdc to 36vdc

5/8A

14

DC-DC Converter---Automatic Step down and Boost

12vdc-12vdc

1/2/3A

15

DC-DC Converter---Automatic Step down and Boost









dc-dc Boost module 0.9V ~ 5V to 5V 600MAdc-dc Boost module 0.9V ~ 5V to 5V 600MAdc-dc Boost module 0.9V ~ 5V to 5V 600MA
